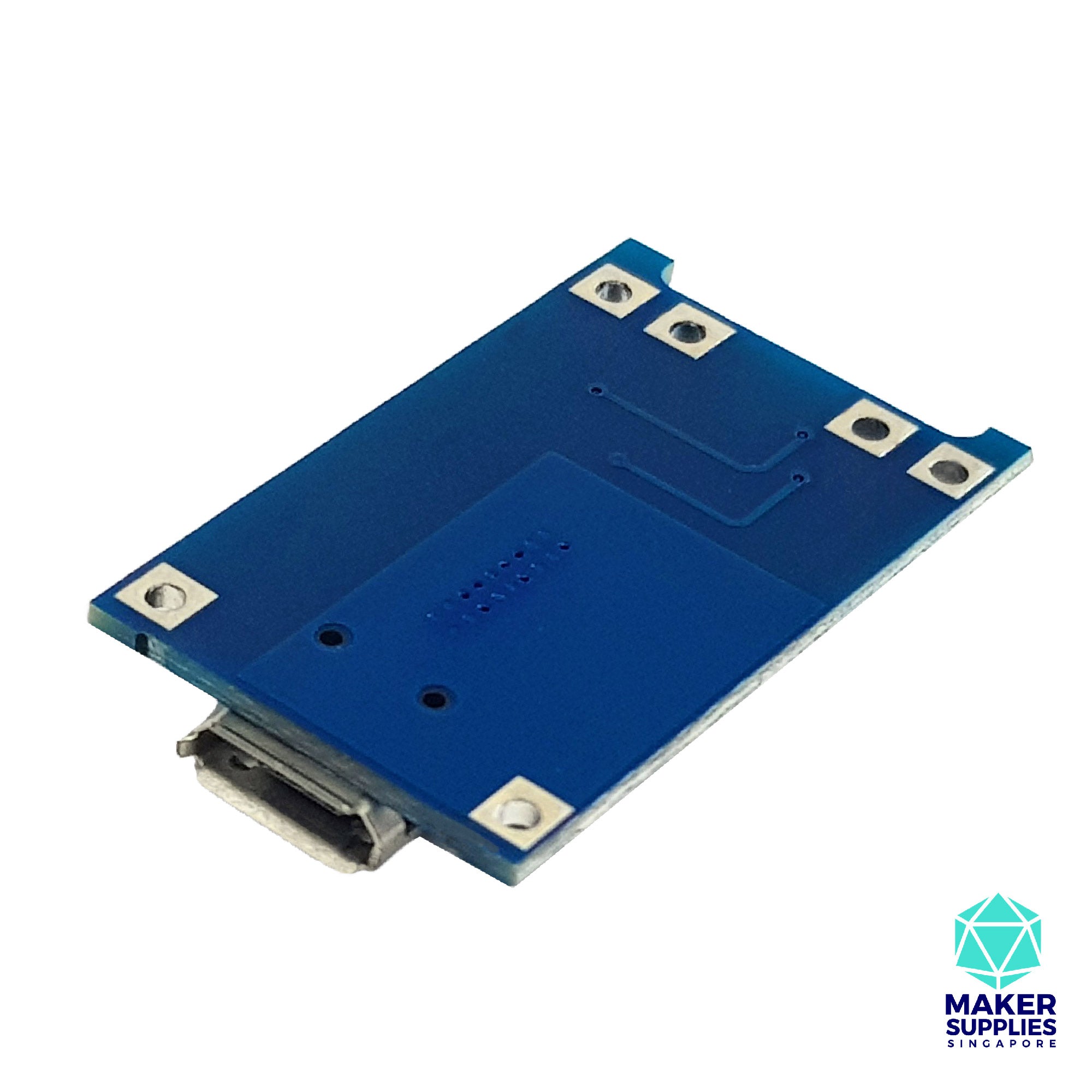

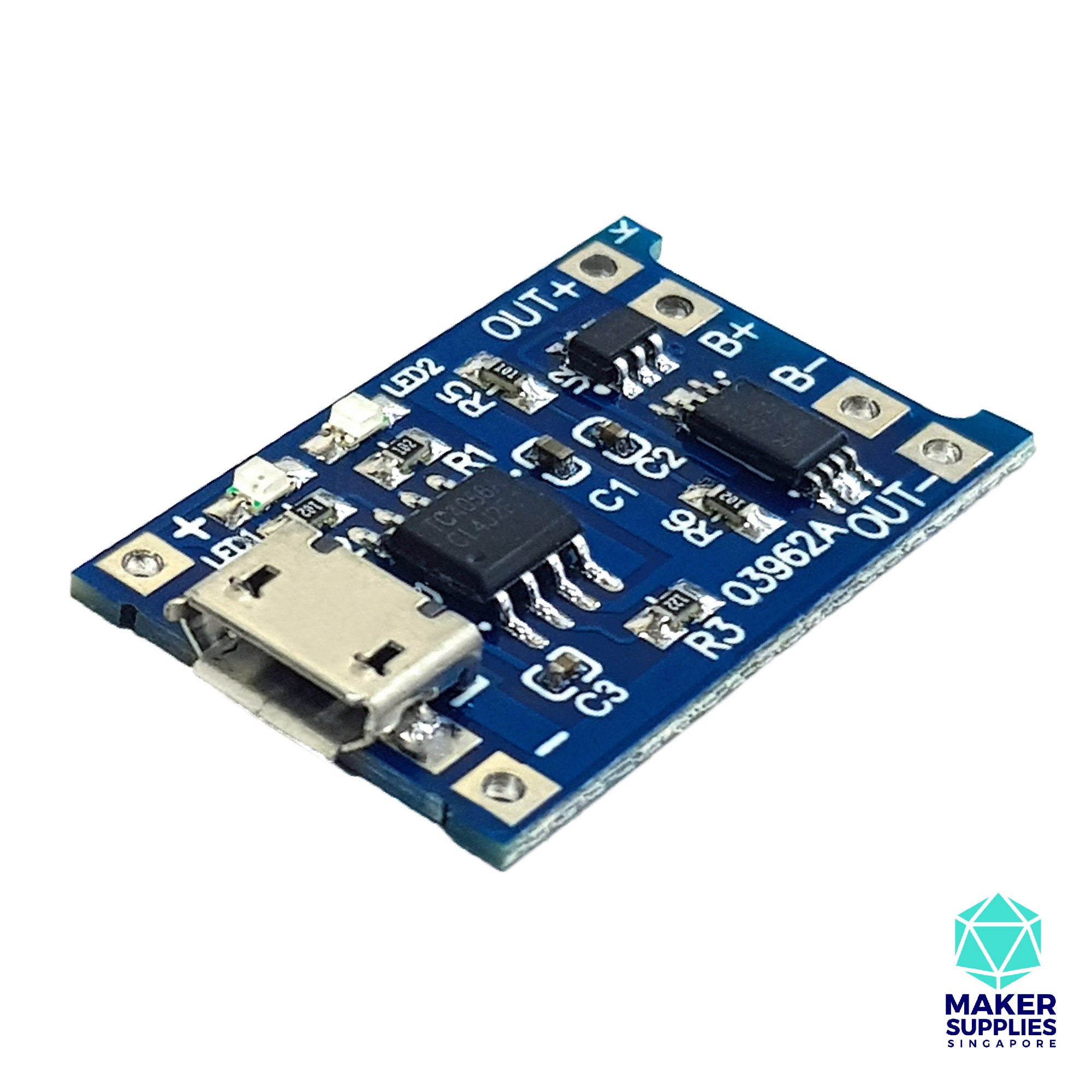

TP4056 1A Lithium Battery Charging Module with Output Protection (micro USB)


Price:
$3.50
Stock:
In stock

Description

Charge and use your lithium battery with the TP4056 Battery Charging Module with Output Protection! Simply connect the ends of the battery to the BAT+ and BAT- terminal of the module, the load to the OUT+ and OUT- of the terminal and power the module with a 5V power supply from the microUSB port.

Output Protection ensures that your lithium ion battery's voltage does not fall below 2.5V and ensures that the current draw from the battery does not exceed 3A by cutting off the output when either conditions are met.

Input Voltage: 5V
Charging Current: 1A
Charging Voltage: 4.2V
Charging Voltage Accuracy: 1%
Output Voltage Threshold: 2.5V
Output Current Threshold: 3A
Connector Type: Micro USB
Charging Indicator: Red LED Steady ON
Full Charge Indicator: Blue LED Steady ON
Dimensions: 26 x 17 x 3mm
Weight: 2g
