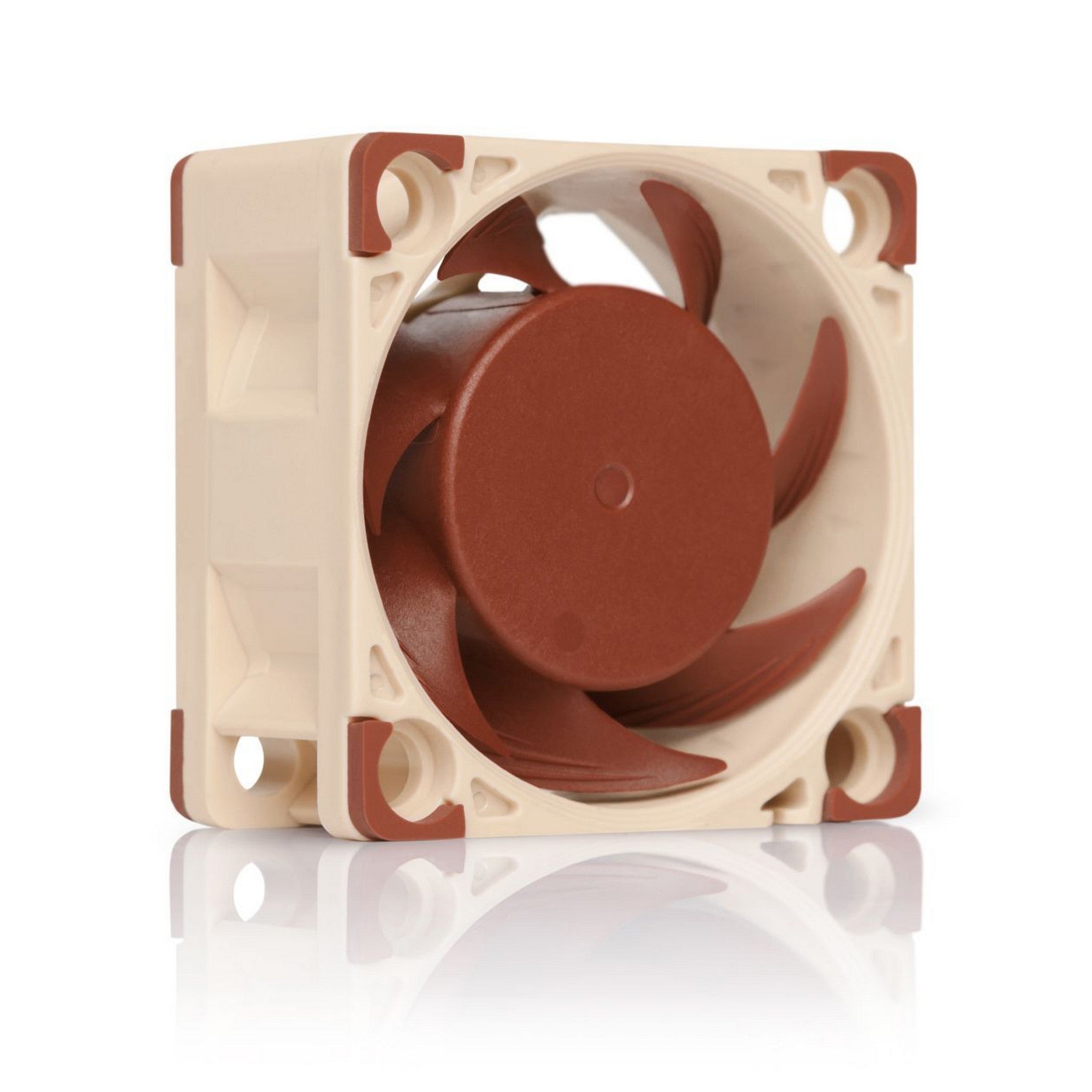

Noctua NF-A4X20 5V PWM 40x20mm Premium Cooling Fan
Description
Featuring advanced aerodynamic design measures such as Flow Acceleration Channels and an AAO frame, the NF-A4x20 5V PWM is a PWM enabled 5V variant of Noctua’s highly optimised, premium quality quiet 40x20mm fan. The custom designed NE-FD3 PWM IC that integrates Smooth Commutation Drive technology and Noctua’s reference class SSO2 bearings guarantee superb running smoothness and excellent long-term stability. Topped off with modular cabling, the OmniJoin™ Adaptor Set and 6 years manufacturer’s warranty, the NF-A4x20 5V PWM is a premium choice for demanding 5V applications that require PWM control.
Being a 5V fan, the NF-A4x20 5V PWM cannot be run at 12V and will be damaged when used with typical 12V power sources such as PC motherboard fan headers
40x20mm size
5V PWM version
Polarity protection
Flow Acceleration Channels
AAO frame
Stepped Inlet Design
Inner Surface Microstructures
Integrated Anti-Vibration Pads
Custom-designed PWM IC with SCD
OmniJoin™ adaptor set
Extensive cabling options
SSO2 bearing
6-year manufacturer’s warranty
Technical Specifications
Size: 40x40x20 mm
Mounting hole spacing: 32x32 mm
Connector & pin-configuration: 4-pin PWM
Cable length: 20cm + 30cm NA-EC1 extension cable
Bearing: SSO2
Blade geometry: A-Series with Flow Acceleration Channels
Frame technology: AAO (Advanced Acoustic Optimisation)
Rotational speed (+/- 10%): 5000 RPM
Min. rotational speed (PWM, +/-20%): 1100 RPM
Airflow: 9,4 m³/h
Acoustical noise: 14,9 dB(A)
Static pressure: 2,26 mm H₂O
Max. input power: 0,5 W
Max. input current: 0,1 A
Operating voltage: 5 V
Voltage: PWM signal 5 V
MTTF: > 150.000 h
Warranty: 6 years

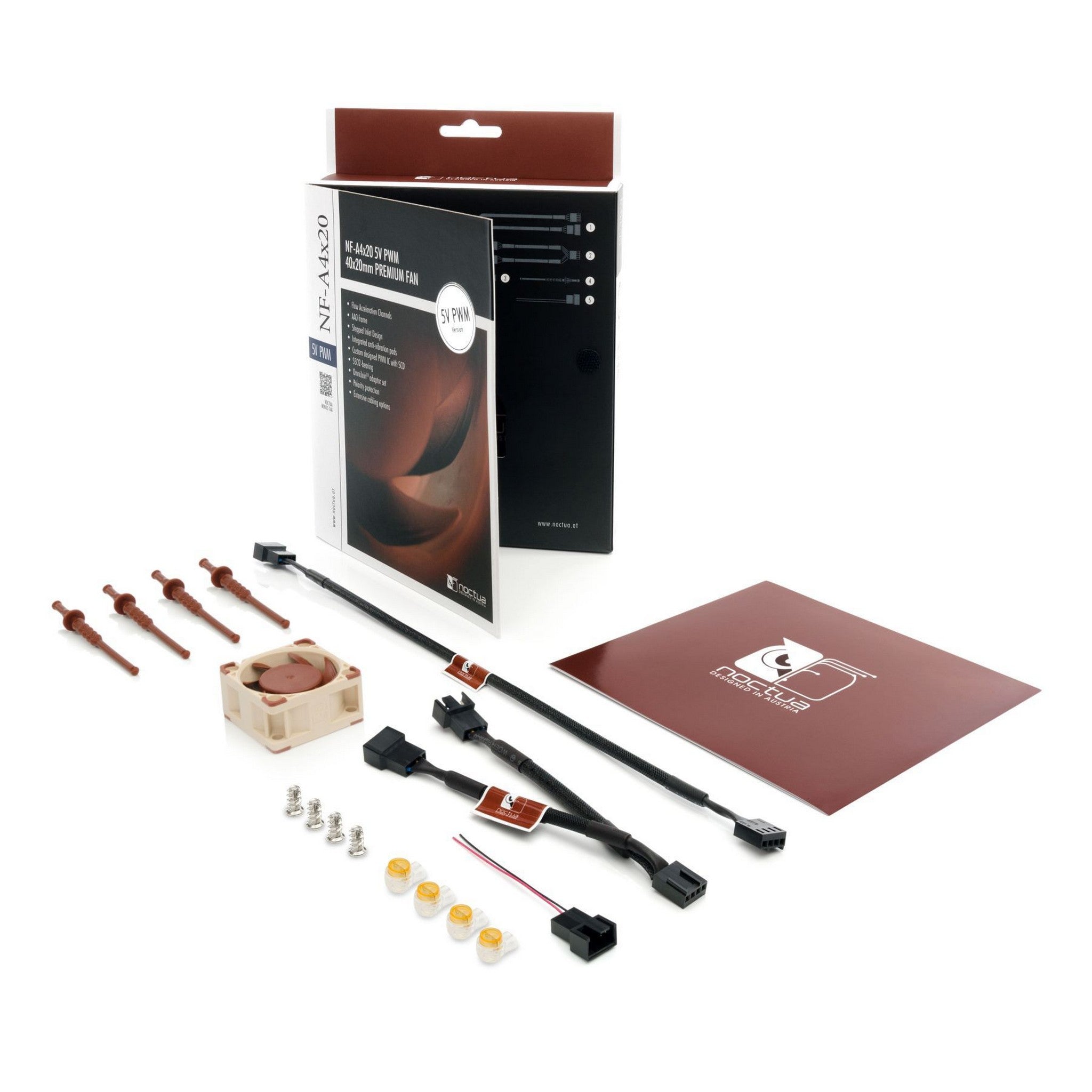

Package includes:
- Noctua NF-A4X20 5V PWM Cooling Fan
- 4-pin y-cable
- 30cm extension cable
- OmniJoin™ adaptor set
- NA-AV3 anti-vibration mounts
- Fan screws
.
