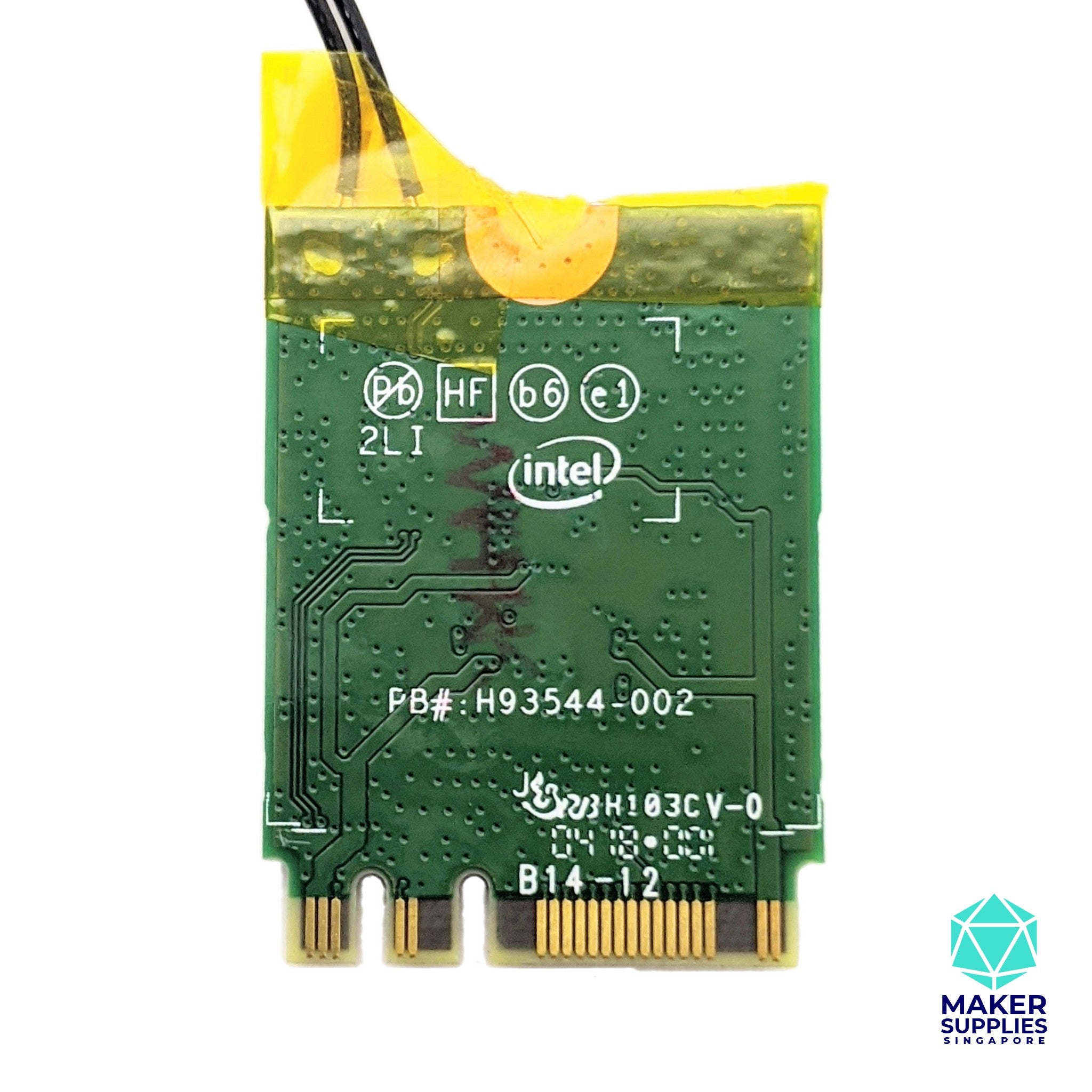

Intel Dual Band Wireless AC 8265 Module with Antennas

Sold out

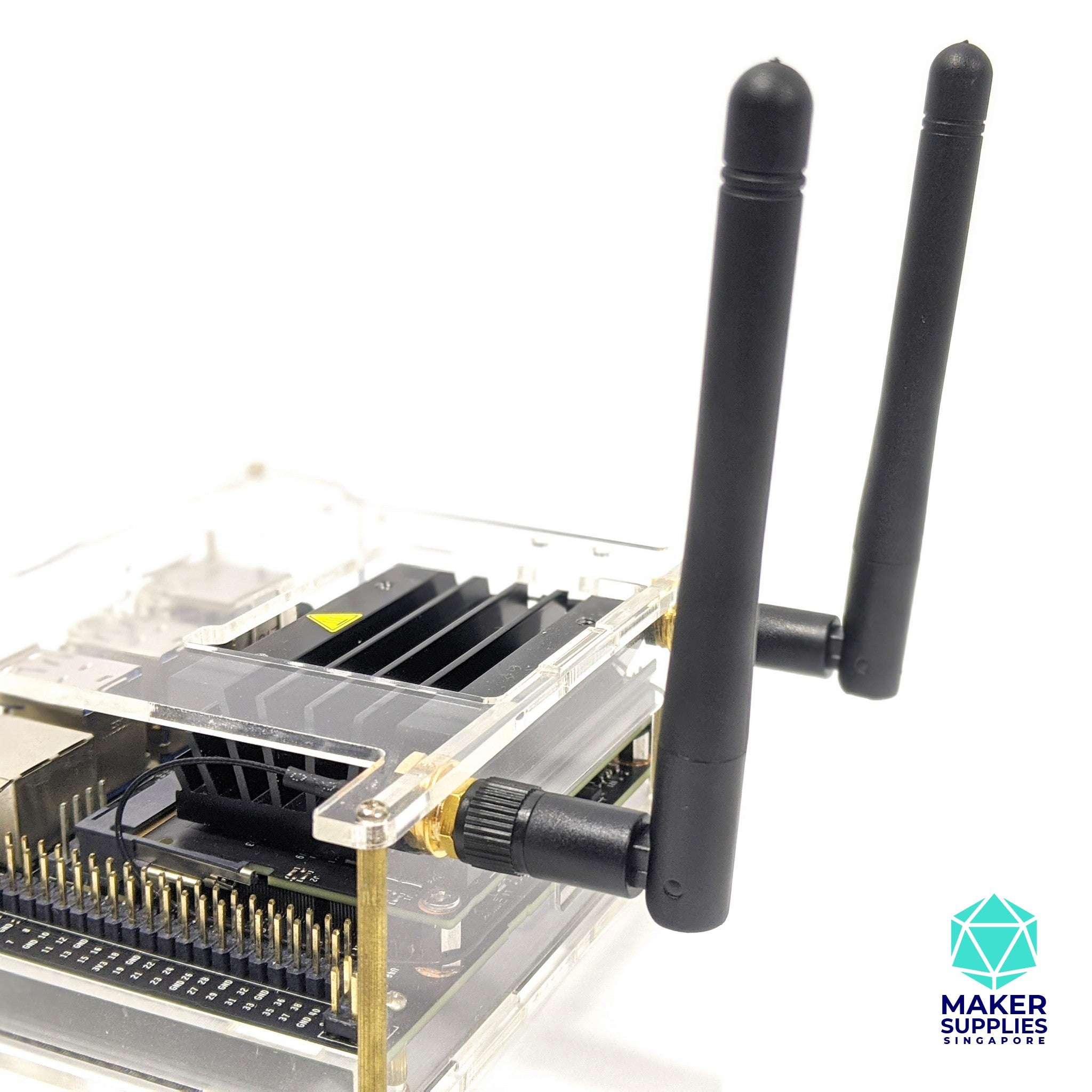

Connect your device to the internet with this Intel Dual Band Wireless AC 8265 Module! With an M.2 connector, it is the recommended Wireless card for the NVIDIA Jetson Nano Developer Kit. This module will provide your device with WiFi connectivity on both the 2.4GHz and 5GHz band and Bluetooth 4.2 connectivity. Antennas provided fits well in most Jetson Nano cases with holes for antennas.

Wireless Module
WiFi Frequency Bands: 2.4GHz and 5GHz
WiFi Speeds: 300Mbps on 2.4GHz, 867Mbps on 5GHz
Networking Standard: IEEE 802.11ac
Bluetooth Version: 4.2 BLE
Connector Type: M.2

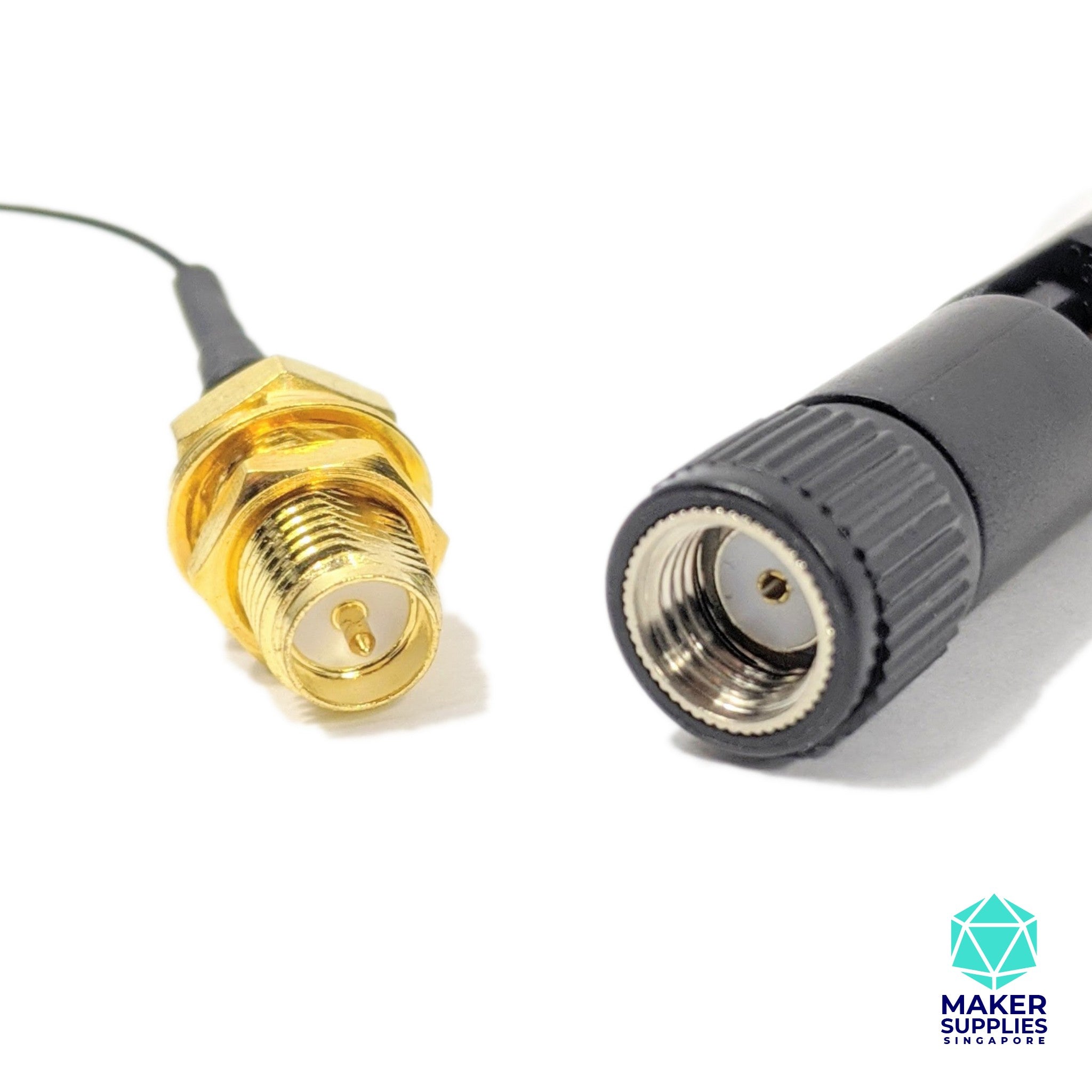

Antenna Connector Type: IPEX
Dimensions: 22mm x 30mm x 2.4mm

Antenna Length: 11cm
Antenna Cable Length: 15cm

Weight: 28g

Installation Guide:
