8MP Binocular IMX219-83 Stereo Camera Module

WaveshareSKU: SEN053

Price:
$61.90
Stock:
In stock

Description

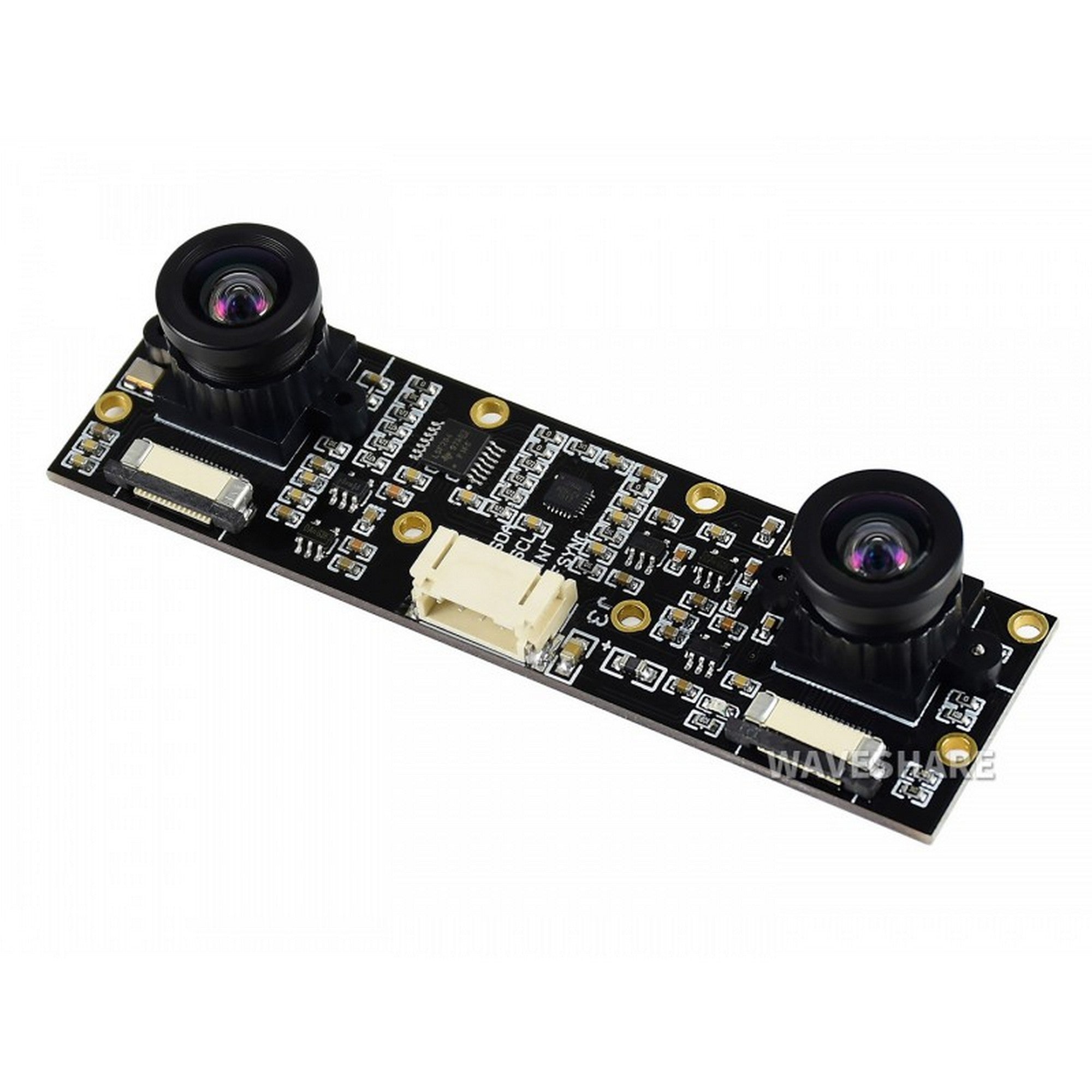

This is a binocular camera module which features dual IMX219 cameras onboard, 8Megapixels of each camera. It is suitable for AI vision applications like depth vision and stereo vision.

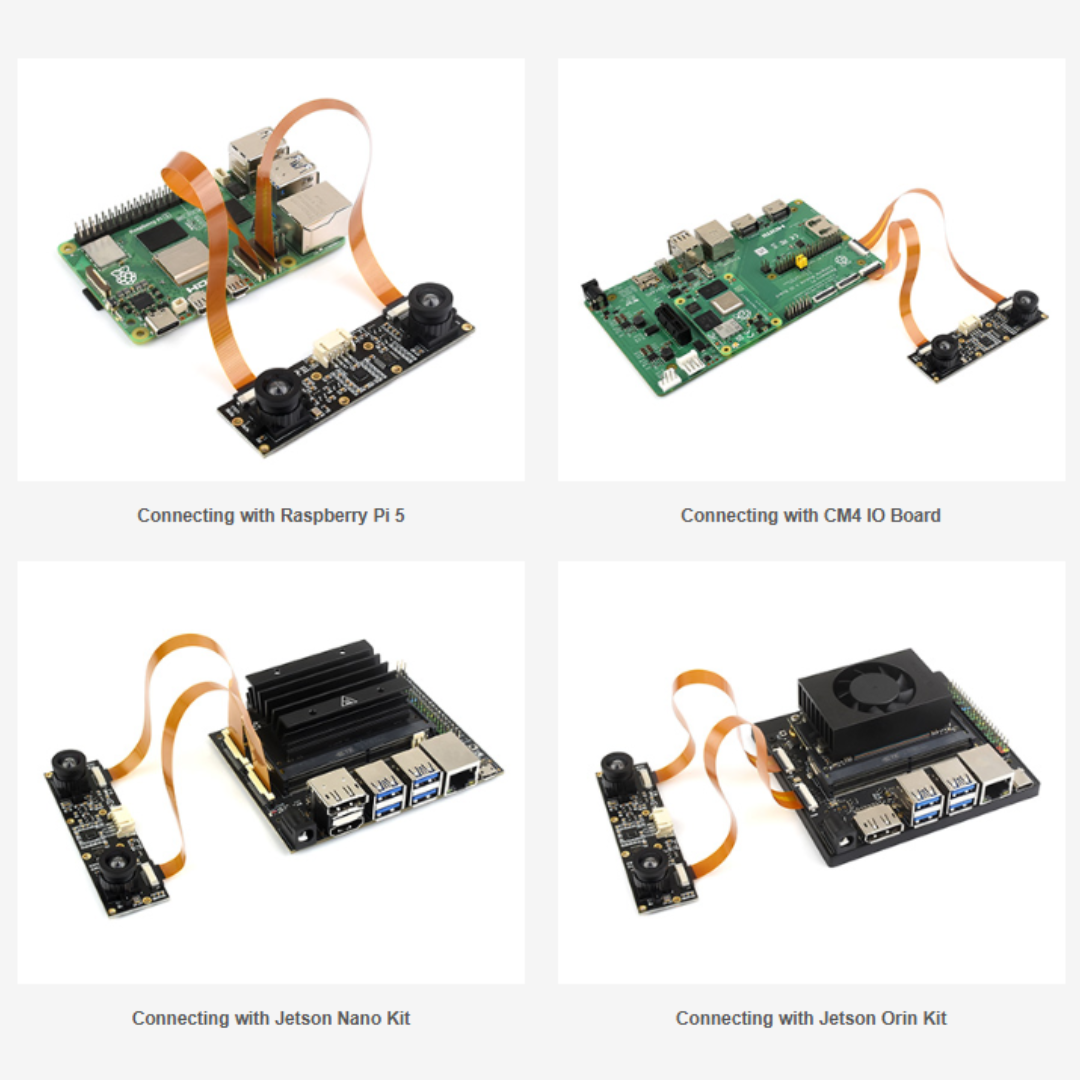

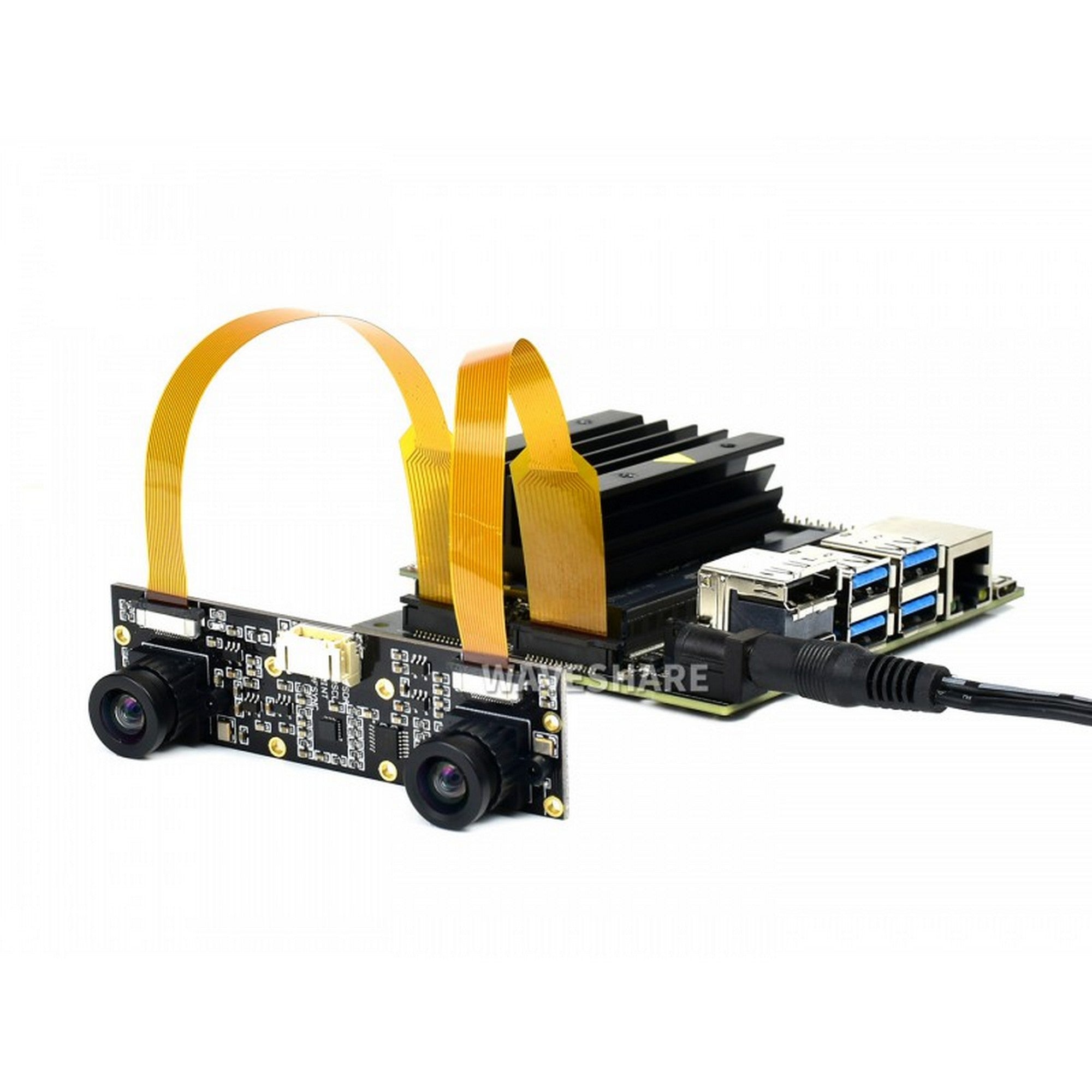

The module supports NVIDIA Jetson Nano Developer Kit B01 version, as well as Raspberry Pi CM3/CM3+ expansion boards like Compute Module IO Board Plus, Compute Module POE Board, etc.


Specification:

  • 8 Megapixels
  • Sensor: Sony IMX219
  • Resolution: 3280 × 2464 (per camera)
  • Lens specifications:
    • CMOS size: 1/4inch
    • Focal Length: 2.6mm
    • Angle of View: 83/73/50 degree (diagonal/horizontal/vertical)
    • Distortion: <1%
    • Baseline Length: 60mm
  • ICM20948:
    • Accelerometer:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±2, ±4, ±8, ±16g
      • Operating Current: 68.9uA
    • Gyroscope:
      • Resolution: 16-bit
      • Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
      • Operating Current: 1.23mA
    • Magnetometer:
      • Resolution: 16-bit
      • Measuring Range: ±4900μT
      • Operating Current: 90uA
  • Dimension: 24mm × 85mm



Application:

  • AI vision applications like depth vision and stereo vision.

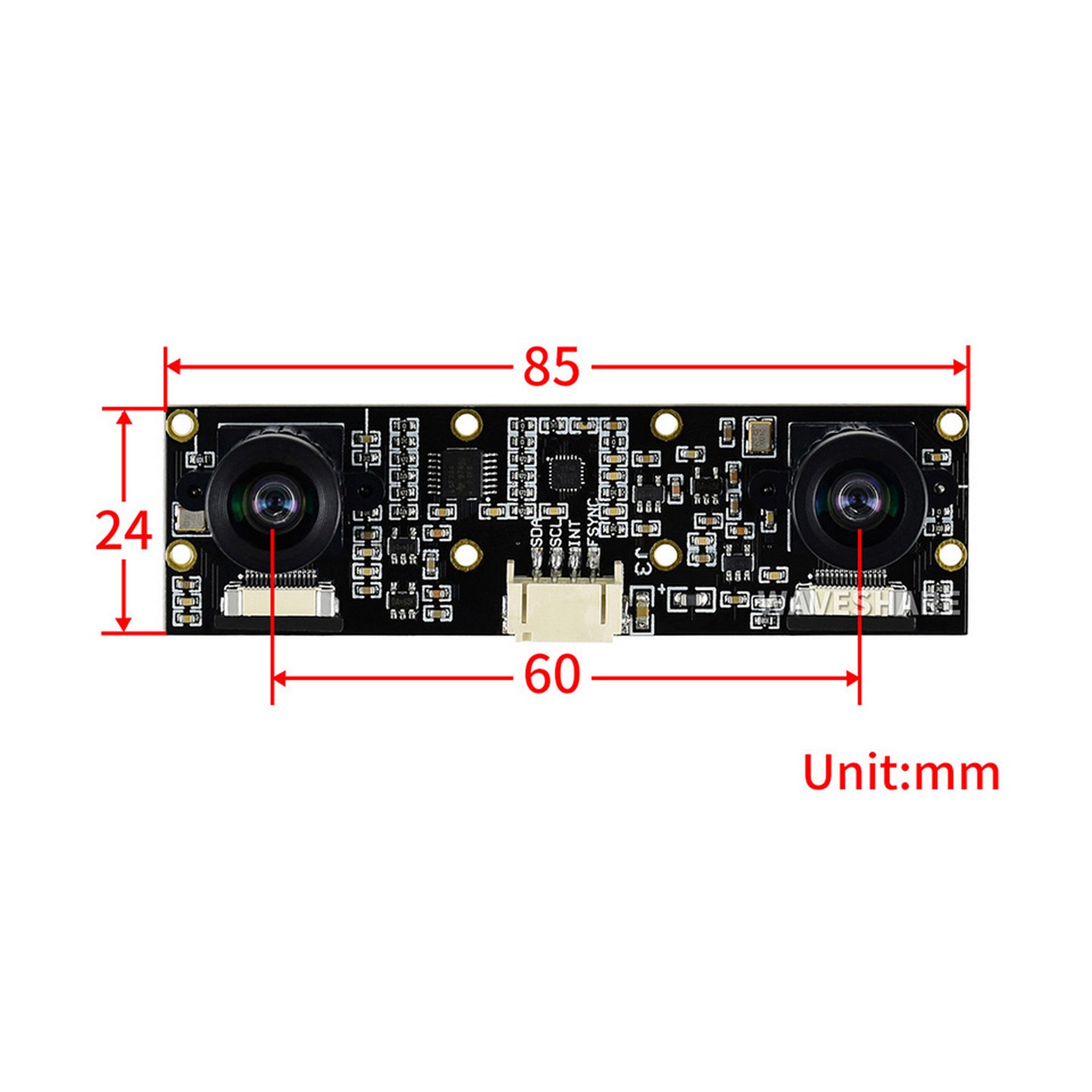

Dimensions:

IMX219-83 Stereo Camera Dimensions

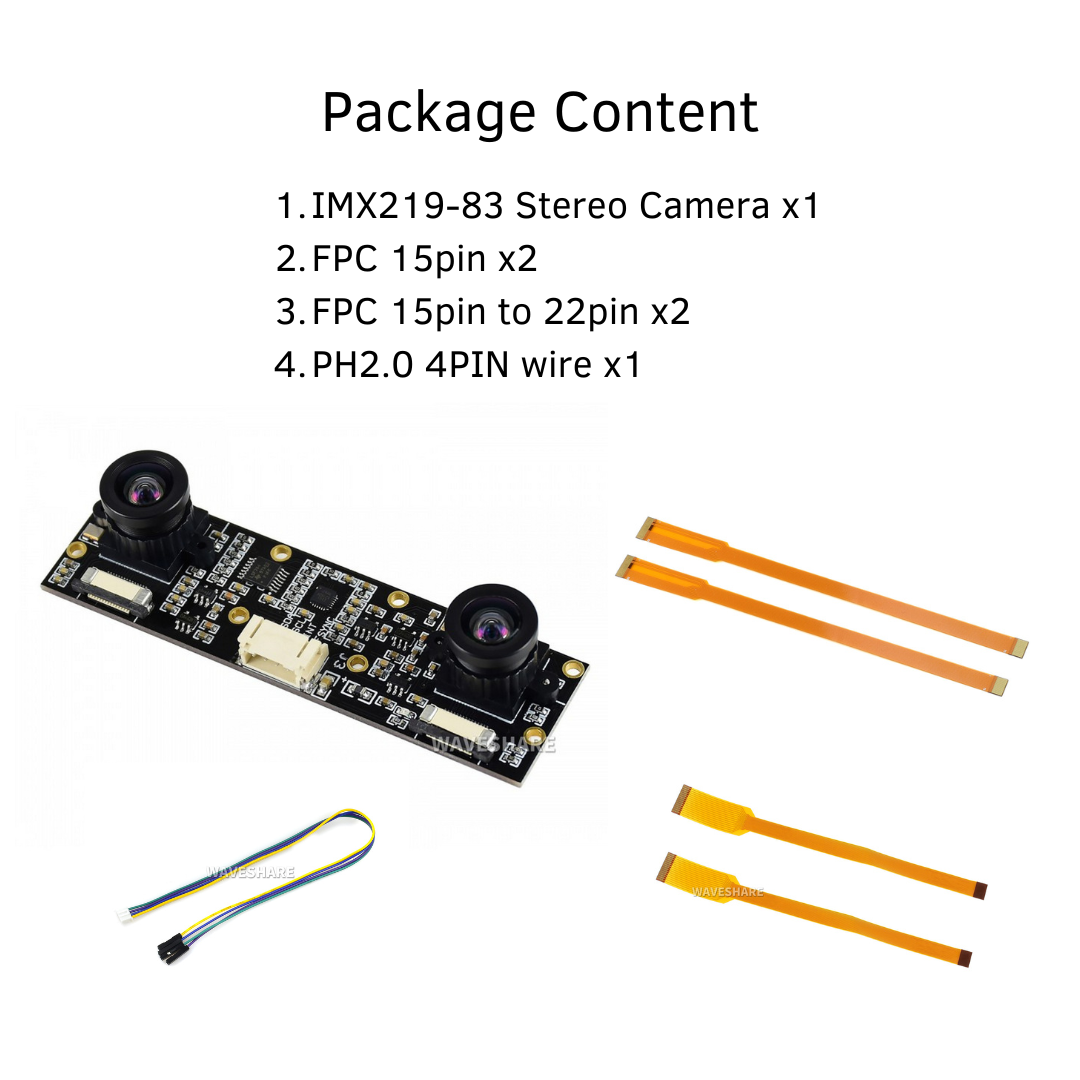

Package Content:

  1. IMX219-83 Stereo Camera x1
  2. FFC (2PCS) x1
  3. PH2.0 4PIN wire x1
