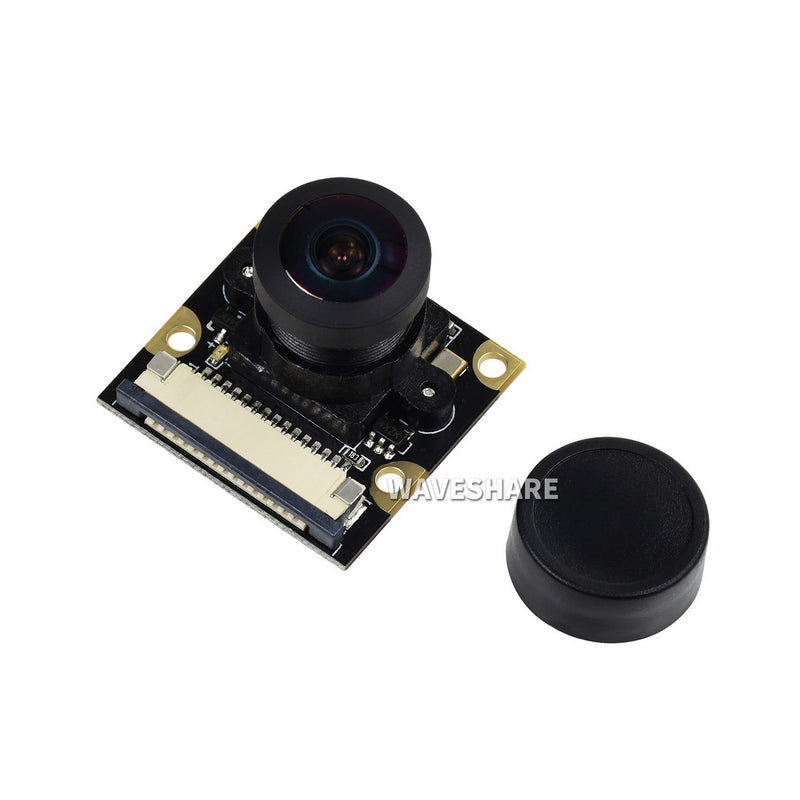

5MP OV5647 160 FOV Raspberry Pi Camera (G) Fisheye Lens 10344

WaveshareSKU: SEN061

Price:
S$36.90
Stock:
In stock

Description

Raspberry Pi Camera Module, Fisheye Lens, Wider Field Of View



Features:

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Fisheye Lens, offers wider field of view
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting fill flash LED
  • Dimension: 25mm x 24mm



Package Content:

  • RPi Camera (G) x1
  • 16cm 15-pin FFC (opposite sides contact) x1



Note: to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
