3.5inch 480×320 SPI IPS Resistive Touch Display Screen for Raspberry Pi 3B+/ 4B/ Zero (B) LCD 12287

WaveshareSKU: DIS021

Price:
S$35.90
Stock:
In stock (7 units), ready to be shipped

Description

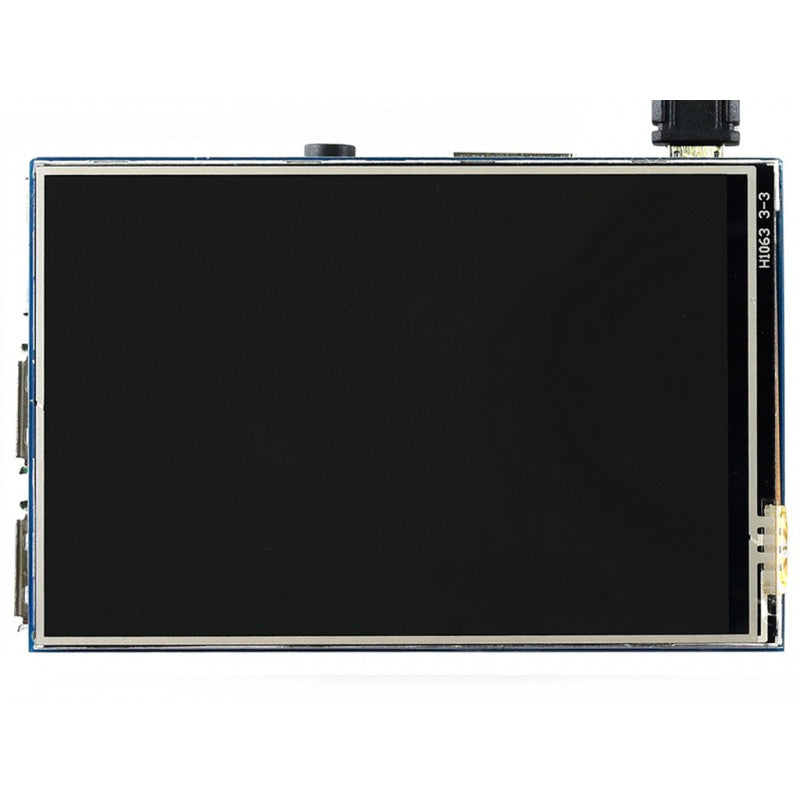

This is a mini 3.5 inch resistive touch screen for the Raspberry Pi and uses the GPIO pins to interface with the Pi.

Features:

  • 480x320 hardware resolution

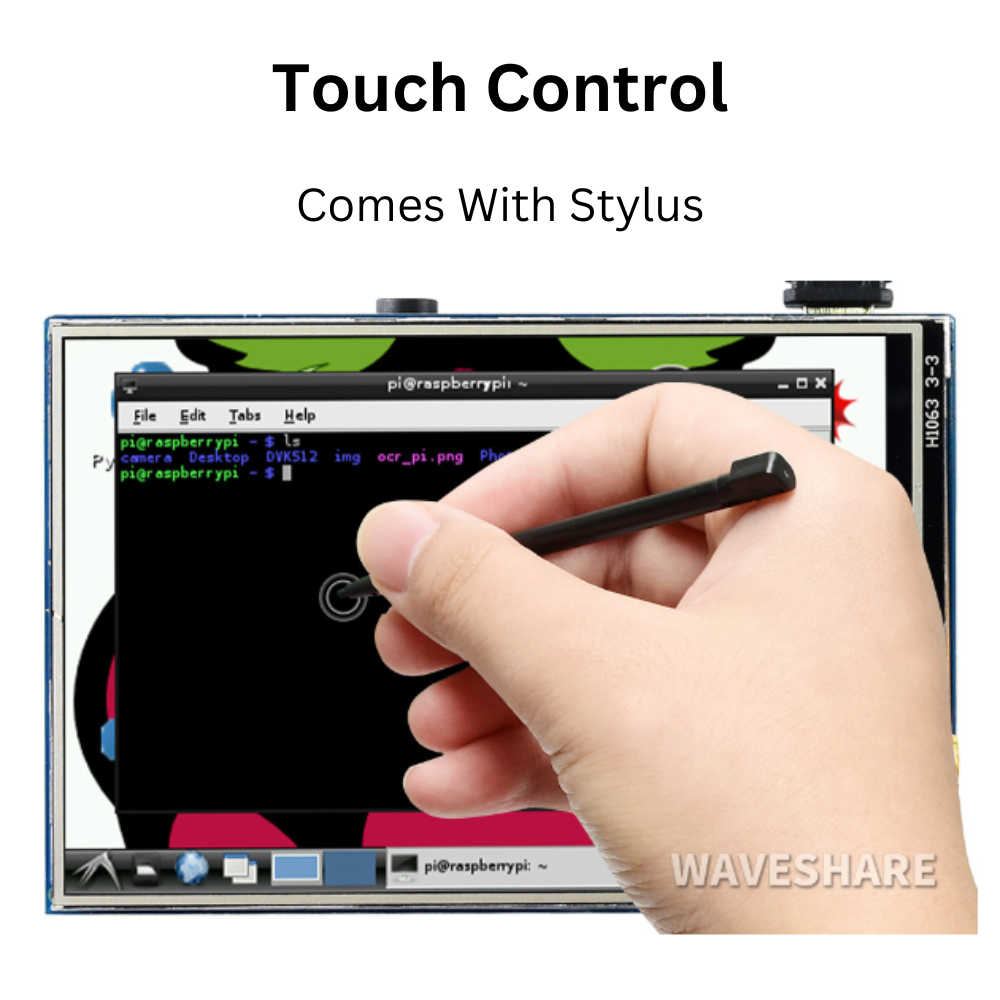

  • Resistive touch control
  • It is compatible and can be directly inserted into any version of Raspberry Pi.

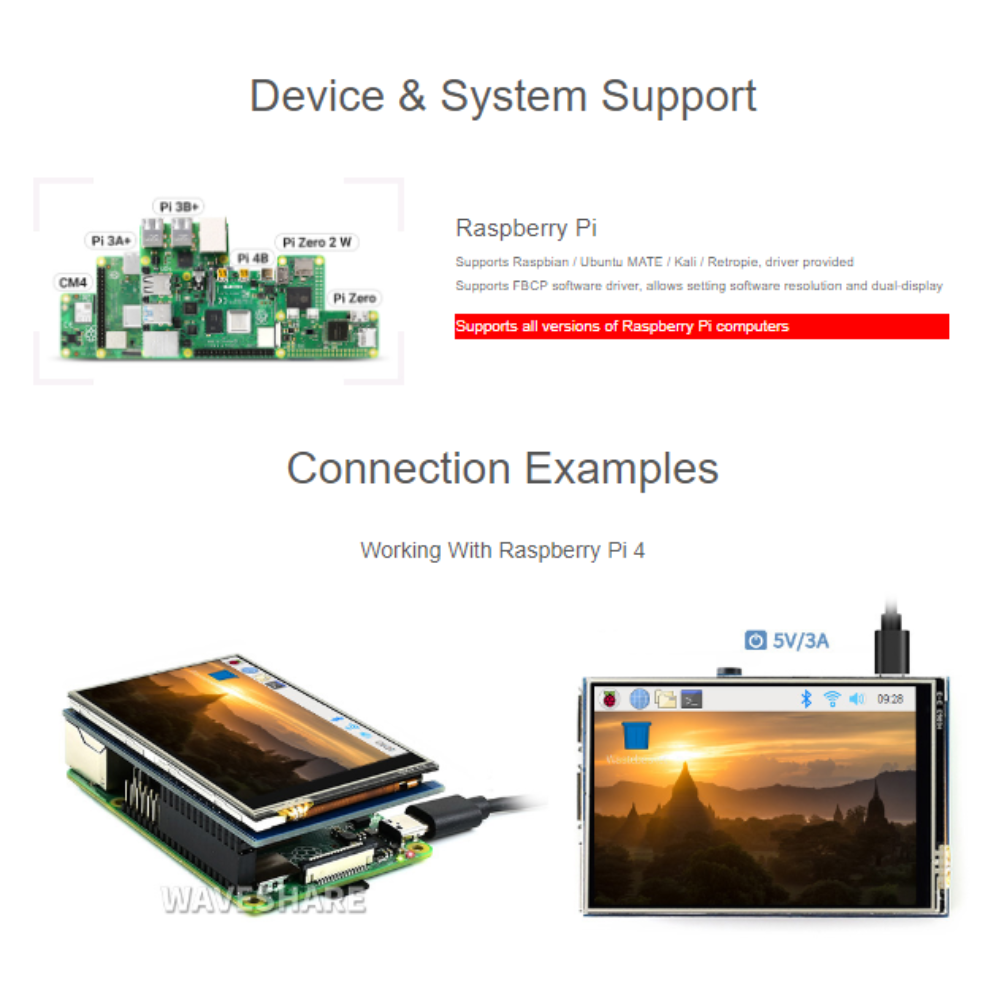

  • Drivers provided (works with your own Raspbian/Ubuntu/Kali and Retropie system directly).

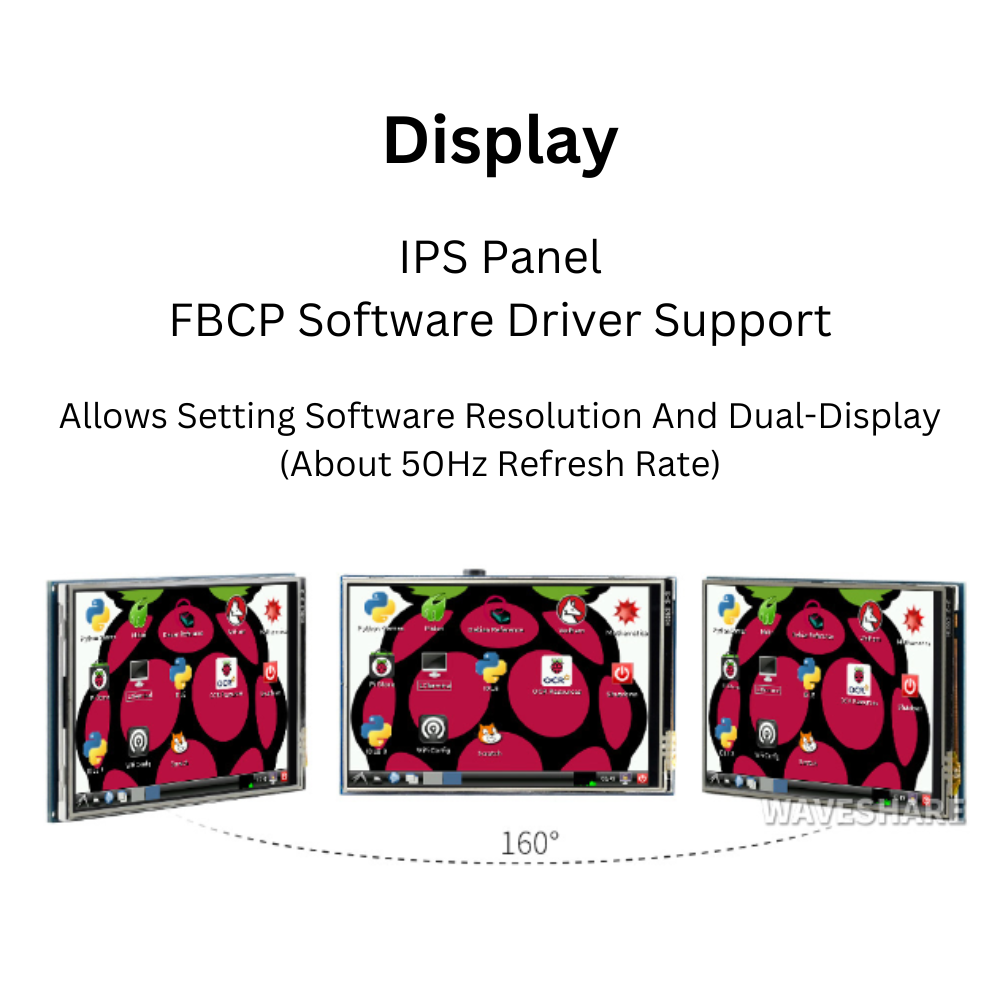

  • IPS screen, 160° large viewing angle, excellent display effect.
  • Support FBCP software driver, which can set the software resolution and dual-screen display.

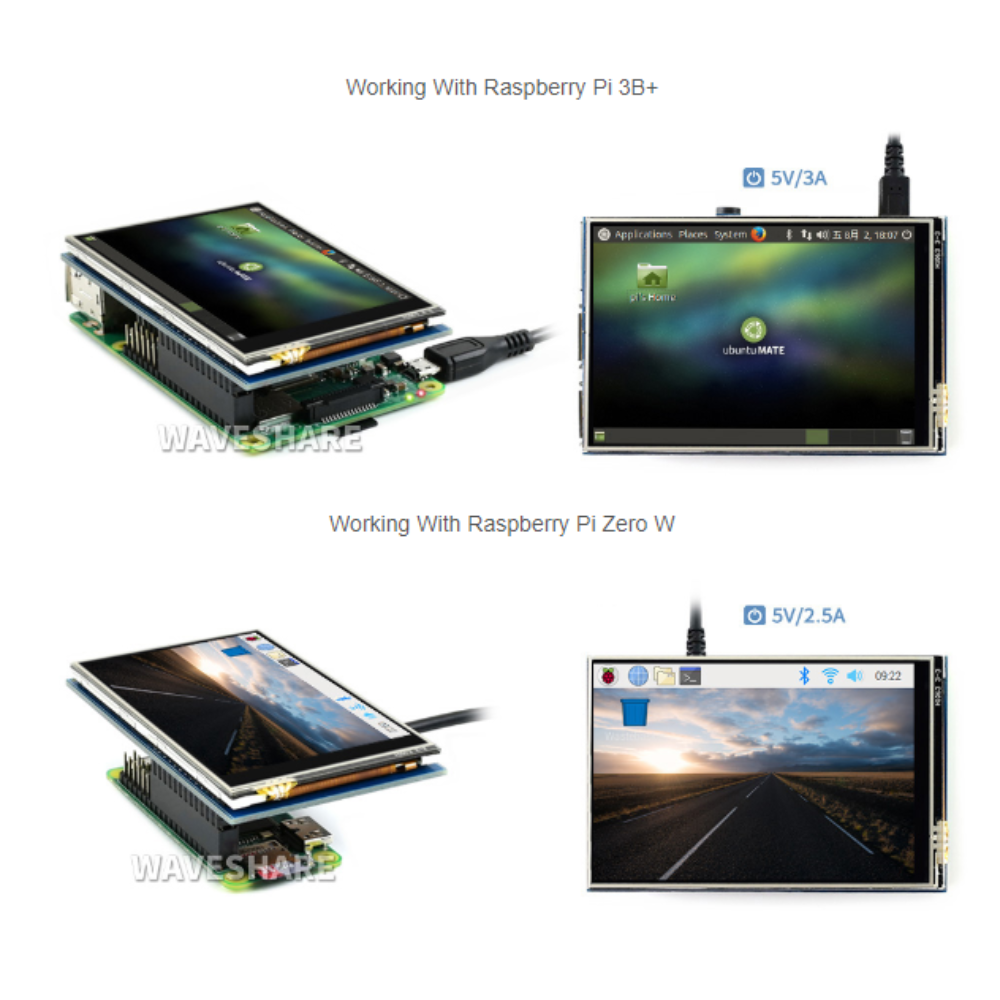

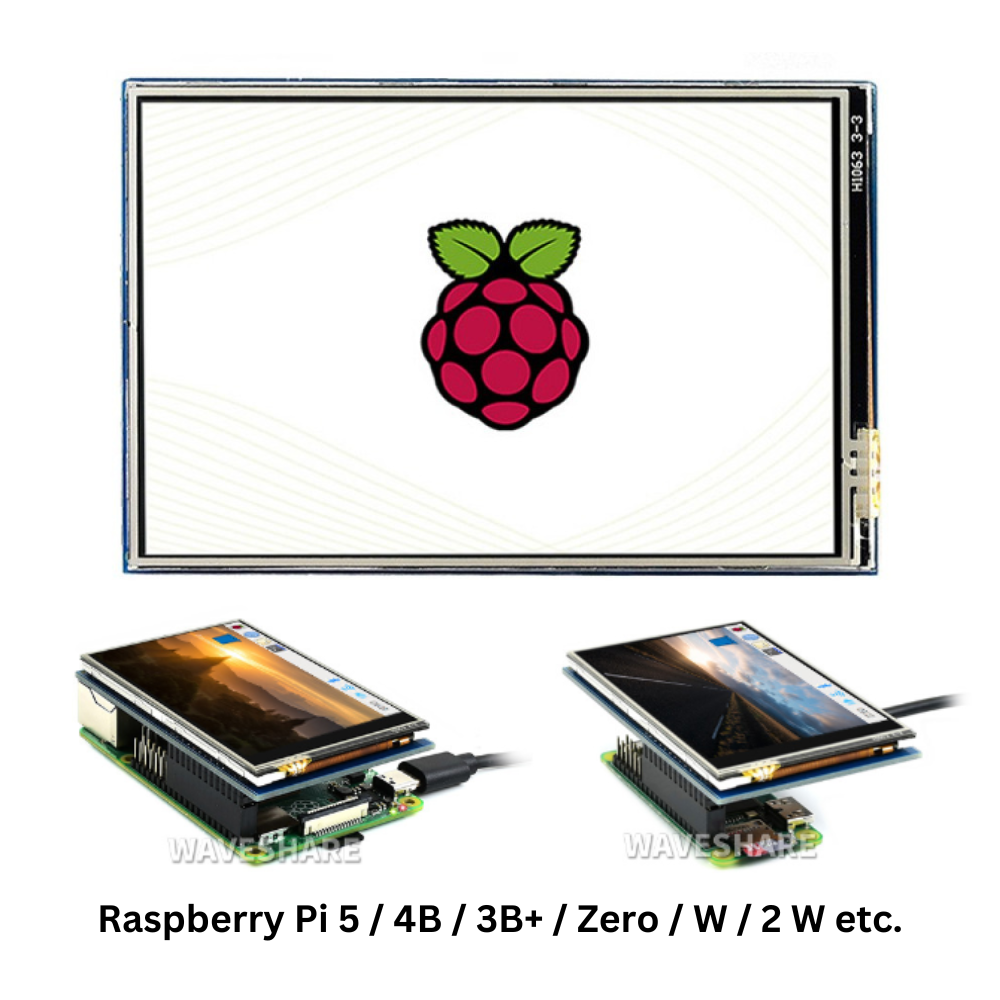

  • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+/4B)
  • Also works with Raspberry Pi Zero series boards

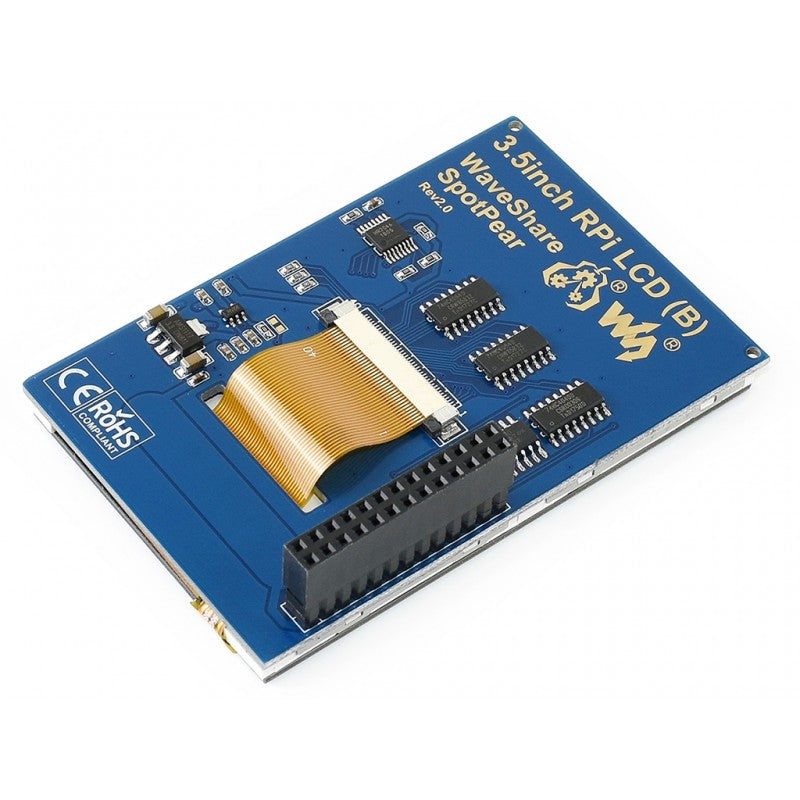

  • High quality immersion gold surface plating

Includes:

  1. 3.5inch RPi LCD (B) x 1
  2. Touch pen x 1
  3. RPi screws pack (2pcs) x 1

Documentation: https://www.waveshare.com/3.5inch-rpi-lcd-b.htm

LCD TYPE IPS
LCD INTERFACE SPI
TOUCH SCREEN TYPE Resistive
STYLUS TOUCH PEN Included
VIEWING ANGLE 160°
RESOLUTION 480x320 (Pixel)

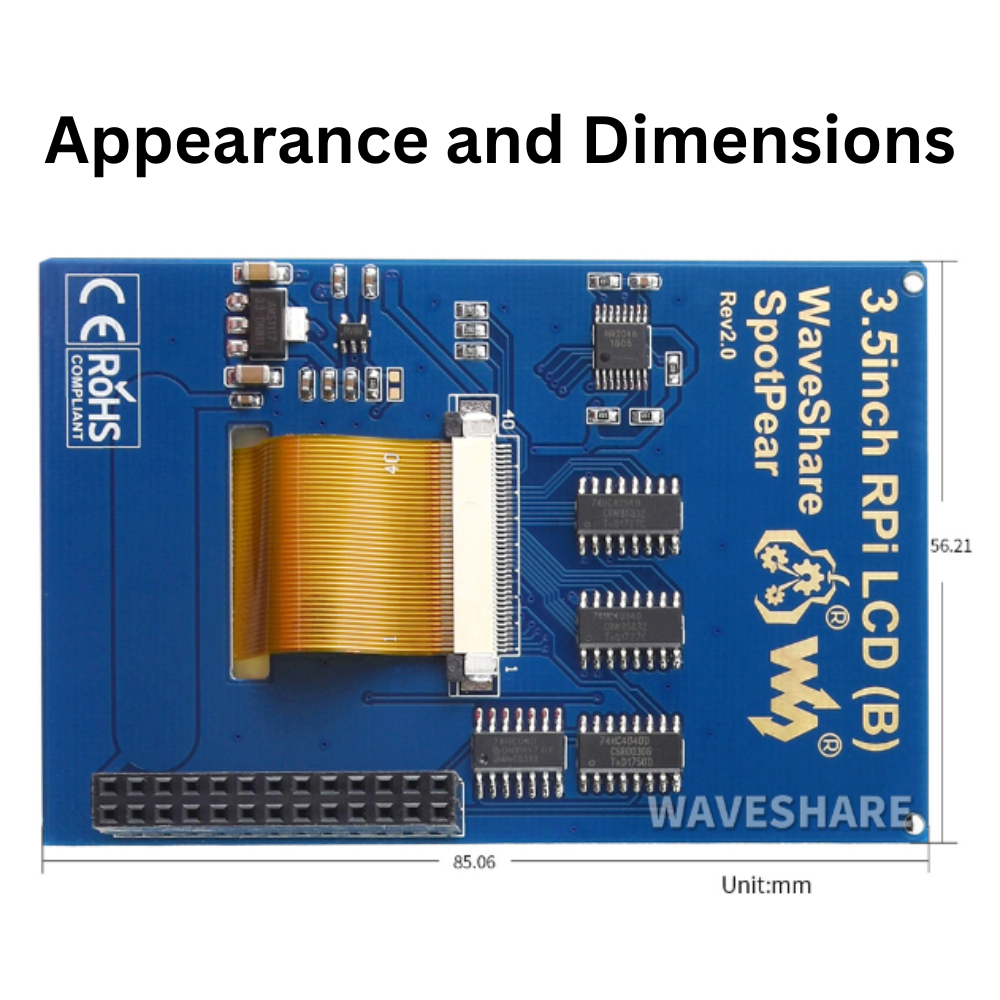

DIMENSIONS ~56x85mm
OPERATING TEMPERATURE
Commercial grade (0-70 °C)



Pin Number Identification Description
1 3.3V Power (3.3V input)
2 5V Power (5V input)
3 NC NC
4 5V Power (5V input)
5 NC NC
6 GND Ground
7 NC NC
8 NC NC
9 GND Ground
10 NC NC
11 TP_IRQ The touch panel is interrupted, and it is low when it is detected that the touch panel is pressed
12 NC NC
13 NC NC
14 GND Ground
15 NC NC
16 NC NC
17 3.3V Power (3.3V input)
18 LCD_RS Command/Data Register Select
19 LCD_SI / TP_SI LCD display / SPI data input of touch panel
20 GND Ground
21 TP_SO SPI data output of touch panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock signal for LCD display / touch panel
24 LCD_CS LCD chip select signal, low level selects LCD
25 GND Ground
26 TP_CS Touch panel chip select signal, low level selects touch panel
