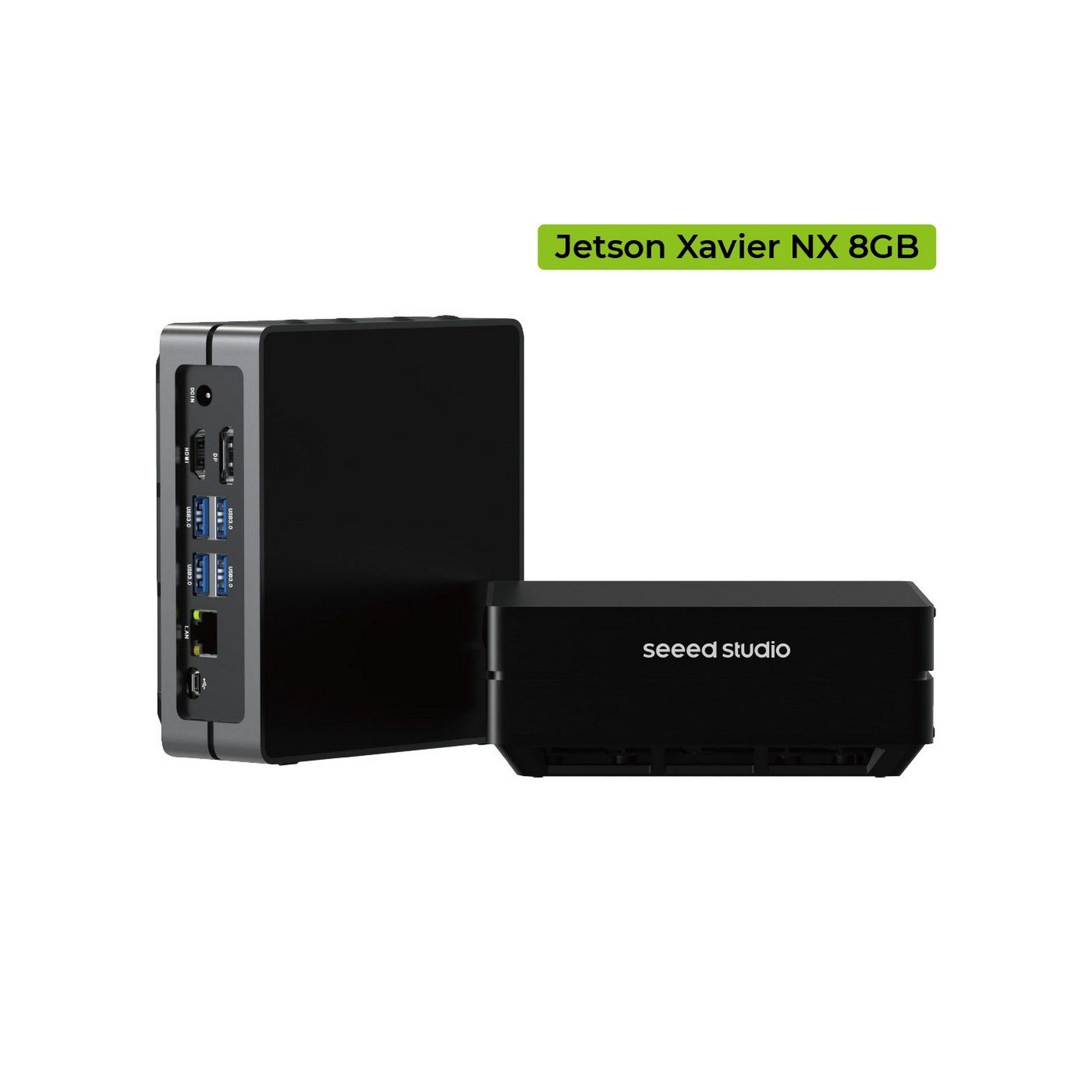

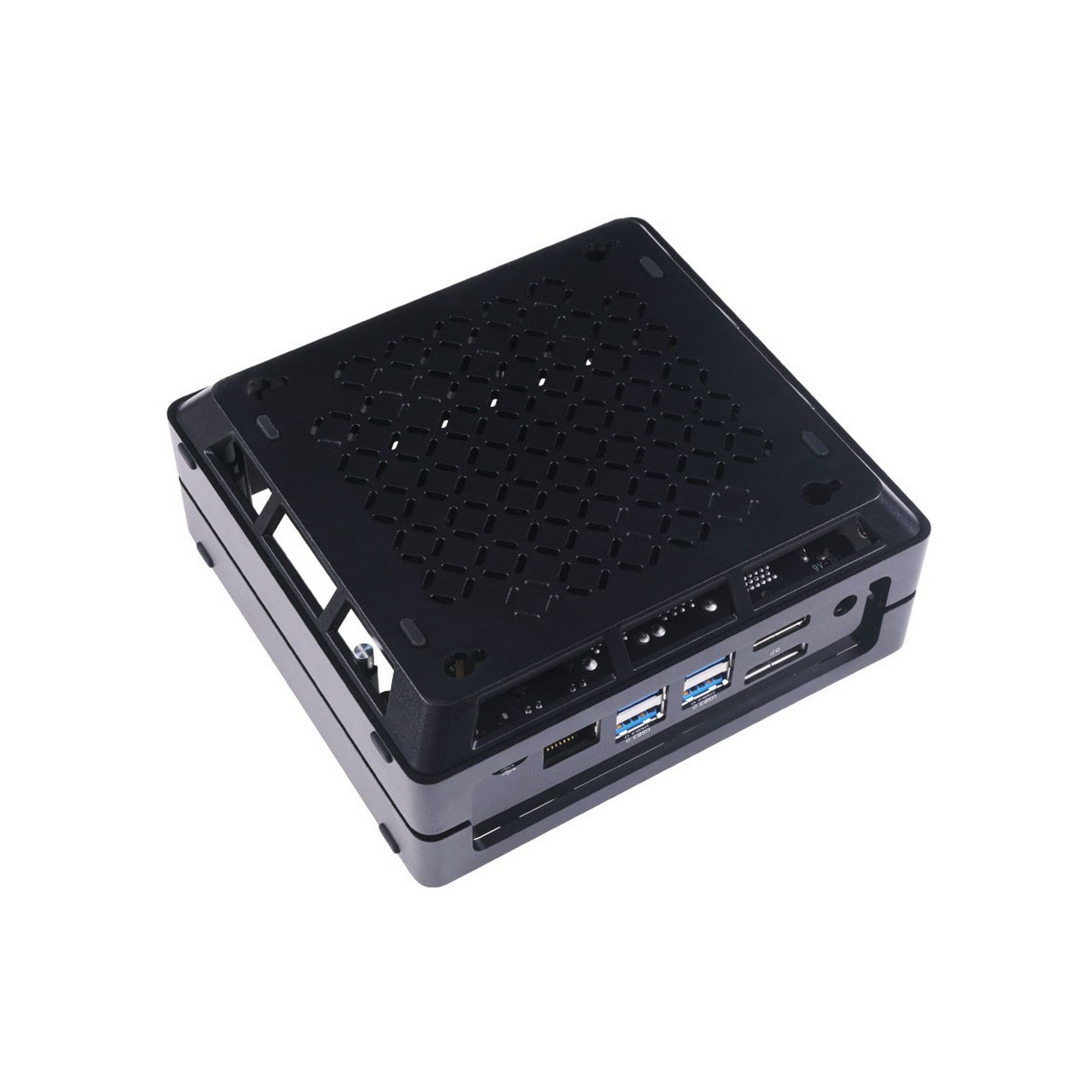

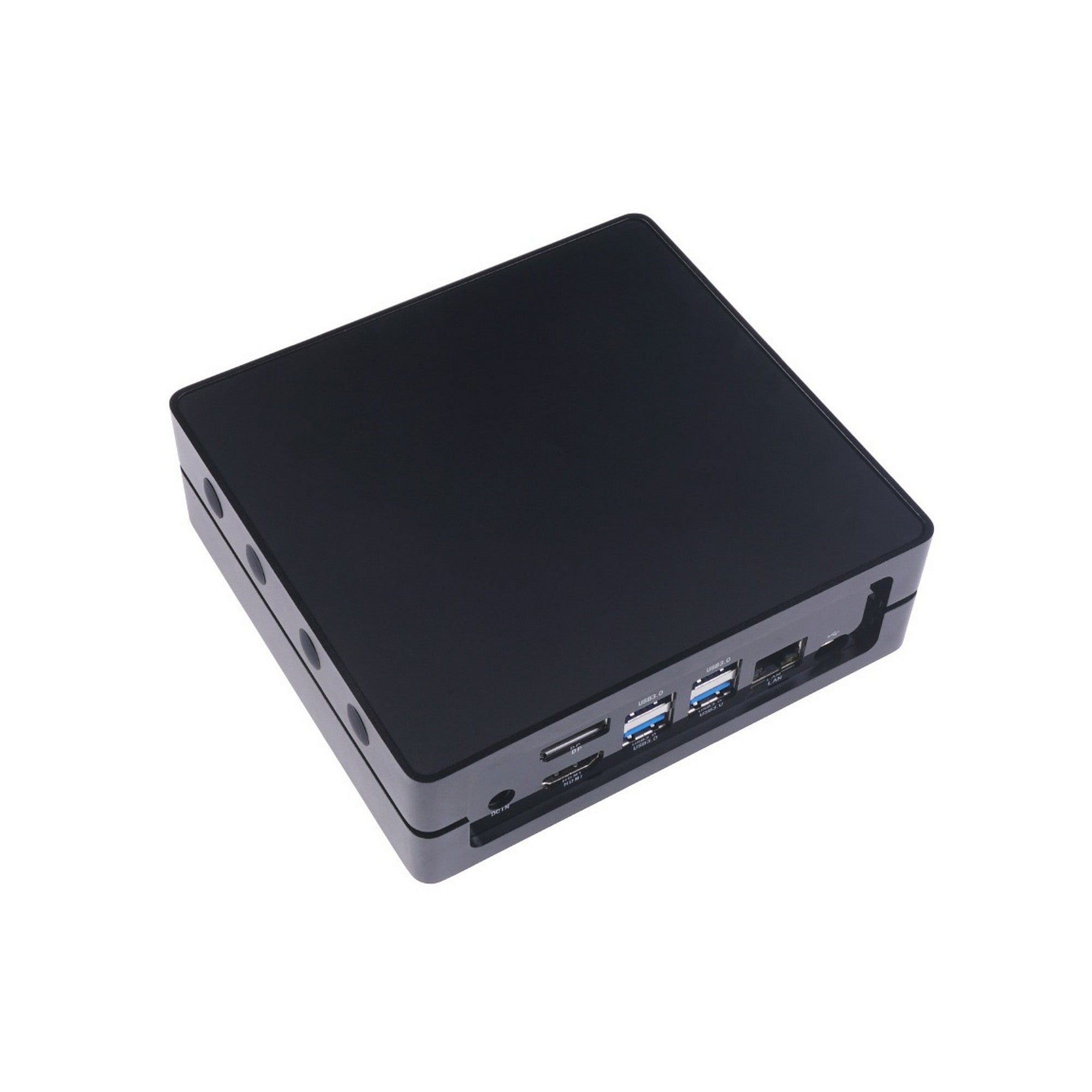

reComputer NVIDIA Jetson Xavier NX Developer Kit (J2011/ J2012)

SeeedSKU: SBC023

RAM Option: 8GB (J2021)
Price:
S$1,089

Description

Note: Due to global shortage of the official NVIDIA Jetson Developer Kits, we bring you the alternative reComputer Jetson Developer Kits, built with official NVIDIA Jetson Modules!

Note: reComputer 8GB J2021 is the latest replacement for 8GB J2011 due to component shortage. J2021 is built with J202 carrier board, consisting of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI/BLE, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin.

RAM Options:

  • reComputer NVIDIA Jetson Xavier NX 8GB Developer Kit (J2021)
  • reComputer NVIDIA Jetson Xavier NX 16GB Developer Kit (J2012)



J2021/ J2012 is a hand-size edge AI box built with NVIDIA Jetson Xavier NX 8GB/ 16GB module, rich set of IOs, aluminium case, cooling fan, pre-installed JetPack System, ready for your next AI application development and deployment.

 reComputer Jetson NX

Features

  • Hand-size edge AI device built with NVIDIA Jetson Production Modulewith an overall dimension of 130mm*120mm*50mm, fits in everywhere.
  • Powered by the 6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3.
  • 384-core NVIDIA Volta™ GPU with 48 Tensor Cores delivers 21 TOPS AI performance.

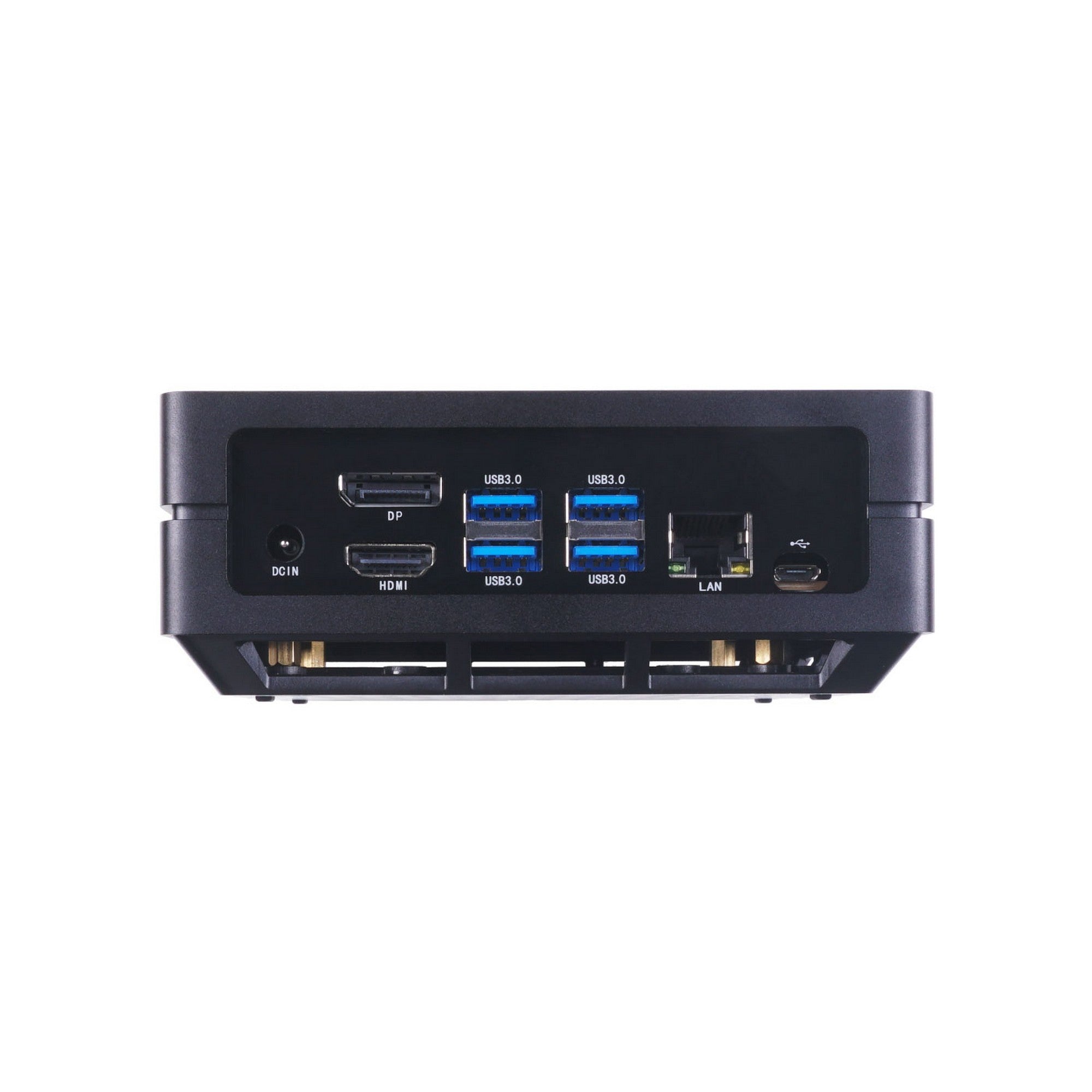

  • Rich peripherals including Gigabit Ethernet port, 4 USB 3.0 Type-A ports, HDMI port and DP ports.
  • Pre-installed NVIDIA official JetPack software, ready for cloud native application.
  • Able to mount on the wall with mounting holes on the back.
  • Support wide range of AI application fast building with our ecosystem partners.
  • Support Allxon to enable efficient remote hardware management services.
  • Enclosed in aluminium case with heat sink

Note: Comes installed with JetPack 4.6 system.

Description

reComputer Jetson series are compact edge computers built with NVIDIA advanced AI embedded systems: J10 (Nano) and J20 (Xavier NX). With rich extension modules, industrial peripherals, thermal management combined with decades of Seeed’s hardware expertise, reComputer Jetson is ready to help you accelerate and scale the next-gen AI product emerging diverse AI scenarios.

reComputer Jetson is compatible with the entire NVIDIA Jetson software stack, cloud-native workflows, industry-leading AI frameworks, helping deliver seamless AI integration.

Application: For next-gen autonomous machine

  • With edge AI developers can deploy machine learning models in solving demanding challenges for advanced robotics and autonomous machines in the fields:
  • Edge AI into the Wild: UAV, Drone, Wildlife protection,
  • Agriculture
  • Smart City: Traffic,Retail, Healthcare
  • Industry 4.0:Manufacturing, Logistics, Deliver, Service

Jetson Applications



Comparison between NVIDIA Jetson NX , J2011 (previously named Jetson-20-1-H1) and J2012 (previously named Jetson-20-1-H2)

Jetson NX Comparison

Power-efficient AI computer, compact rich I/Os for endless AI possibilities:

reComputer J20 comes with Jetson Xavier NX delivers up to 21 TOPS, making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 384 NVIDIA CUDA® Cores, 48 Tensor Cores, 6 Carmel ARM CPUs, and two NVIDIA Deep Learning Accelerators (NVDLA) engines. Combined with over 59.7GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Xavier NX the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

Jetson Xavier NX supports multiple power modes, including low-power modes for battery-operated systems, and delivers up to 14 TOPs for AI applications in as little as 10 W.


Powerful reference carrier board :

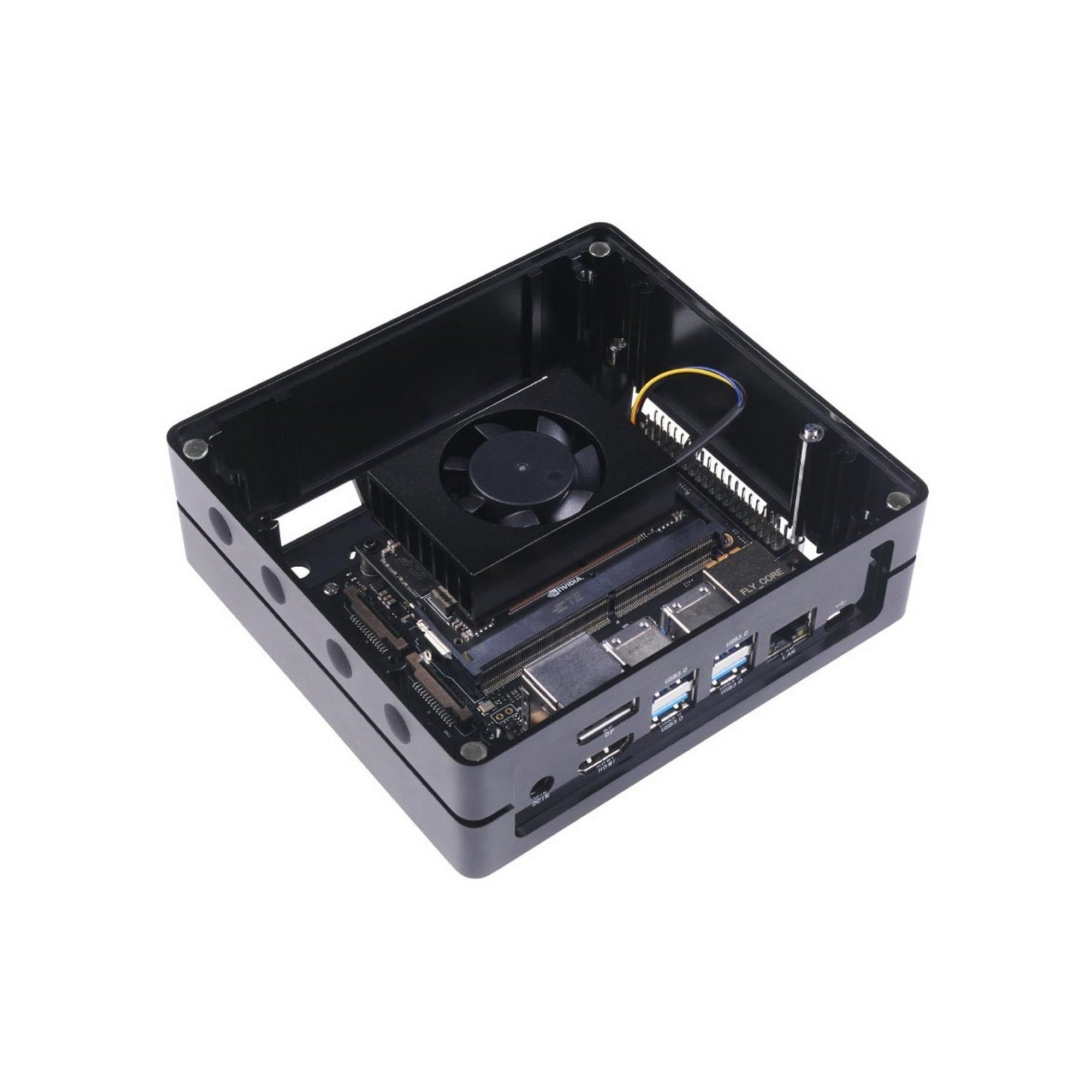

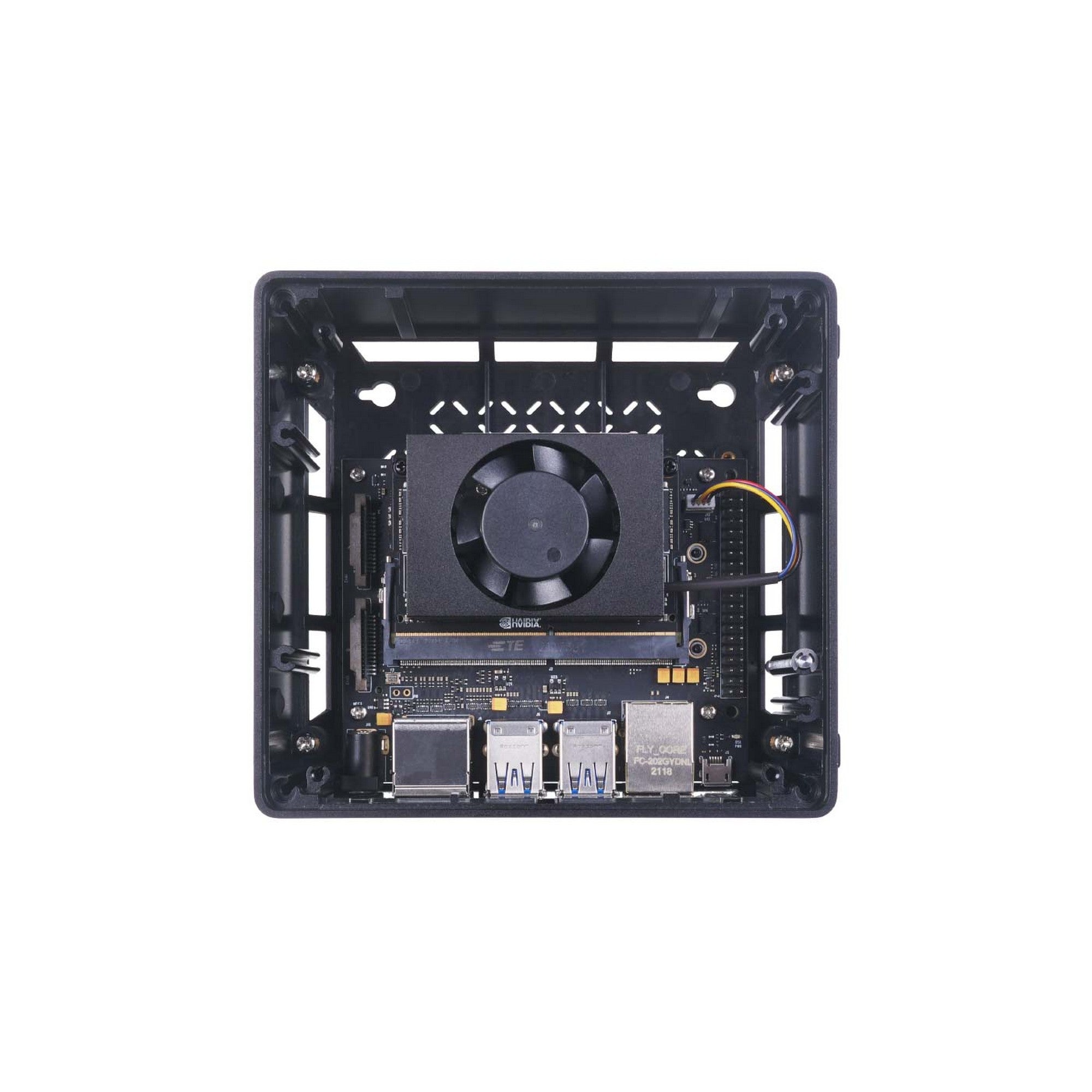

Seeed reference carrier board for J2011 is a high-performance, interface rich NVIDIA Jetson Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.0, USB 2.0, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, fans, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT

Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.

NX Board 1

NX Board 2

Desktop, Wall Mount, or fit in anywhere

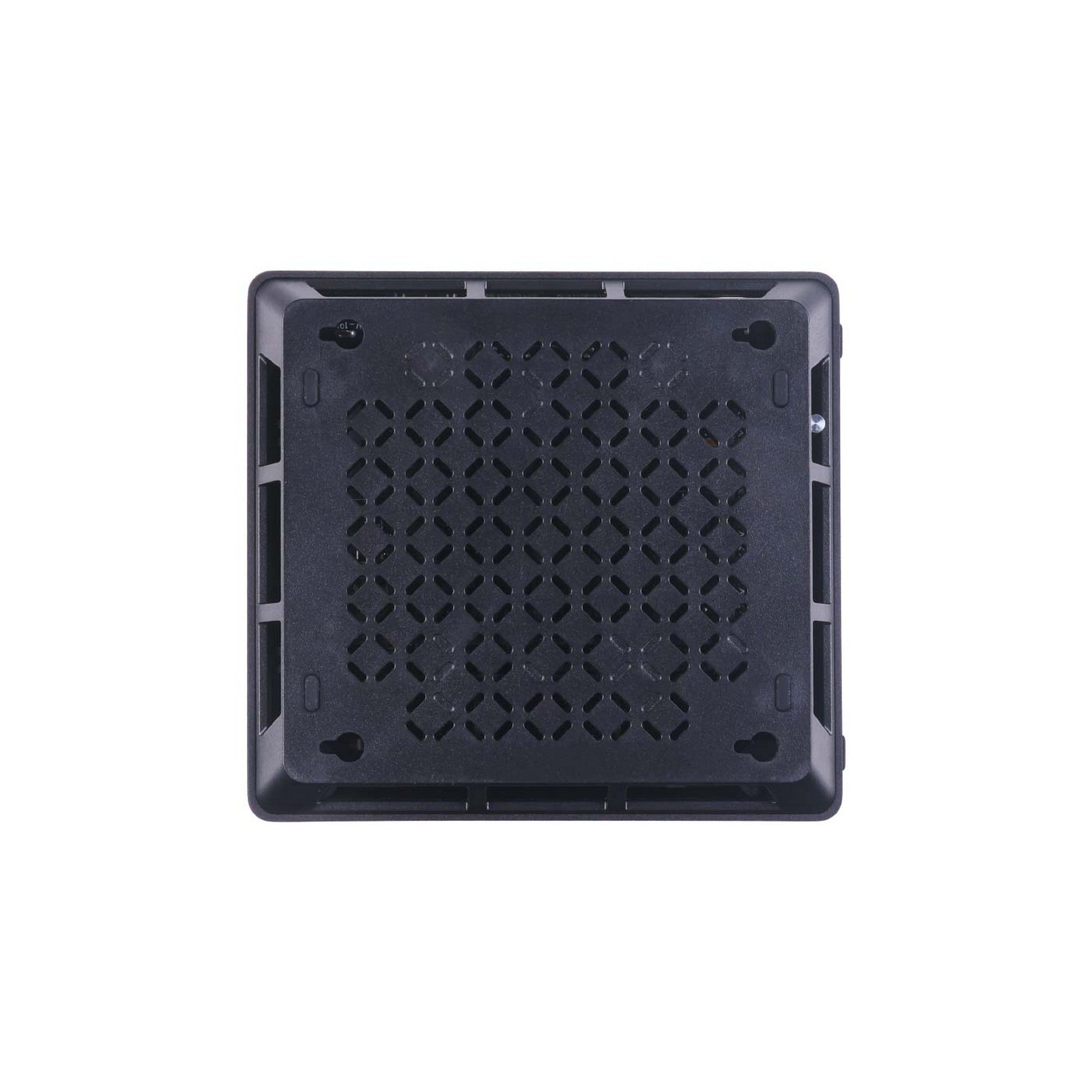

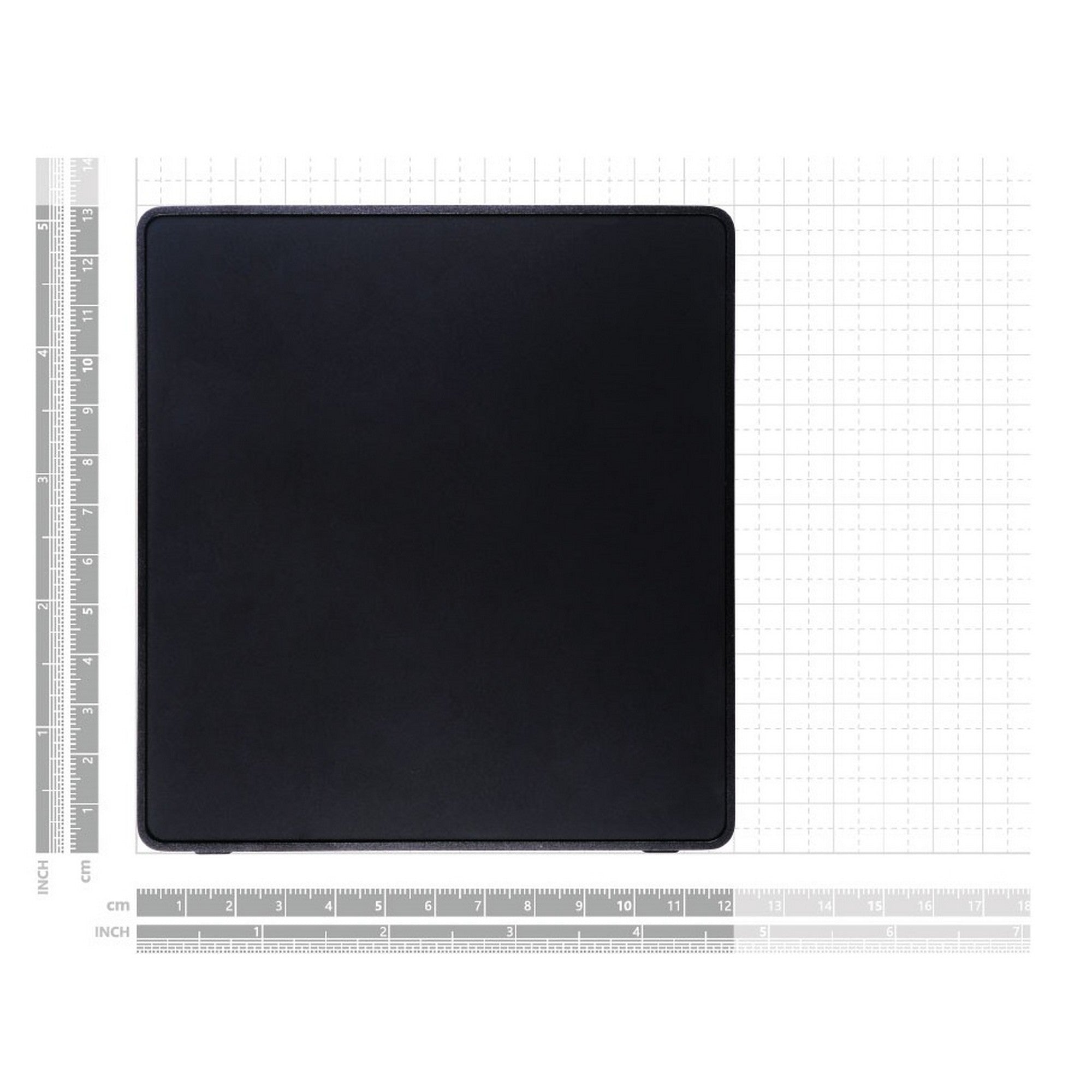

With an overall dimension of 130mm*120mm*50mm, it is only around 1/10 of the size of an ordinary computer case which makes it possible to fit in edge AI scenarios. The back screw holes allow you to hang the product as you need. We also provide other editions case like blue, silver and silver mental, whose stackable structure allows you to stack more middle layers to create rooms very easily.

NX Mount 1

Prebuild system for edge AI integration

All NVIDIA® Jetson™ modules and developer kits are supported by the same software stack, enabling you to develop once and deploy everywhere. Jetson Software is designed to provide end-to-end acceleration for AI applications and accelerate your time to market. We bring the same powerful NVIDIA technologies that power data center and cloud deployments to the edge.

NVIDIA JetPack includes NVIDIA Container Runtime with Docker integration, enabling GPU accelerated containerized applications on Jetson platform. Jetpack also brings support for NVIDIA Triton™ Inference Server to simplify the deployment of AI models at scale.

Jetson Software

Specifications

Module Technical Specifications



Jetson Xavier NX 8GB / 16GB

AI Performance

21 TOPS

GPU

384-core NVIDIA Volta™ GPU with 48 Tensor Cores

CPU

6-core NVIDIA Carmel ARM®v8.2 64-bit CPU 6MB L2 + 4MB L3

Memory

8 GB / 16 GB 128-bit LPDDR4x 59.7GB/s

Storage

16 GB eMMC 5.1

Power

10 W | 15 W | 20 W

PCIe

1 x1 (PCIe Gen3) + 1 x4 (PCIe Gen4), total 144 GT/s*

CSI Camera

Up to 6 cameras (24 via virtual channels)

14 lanes (3x4 or 6x2) MIPI CSI-2, D-PHY 1.2 (up to 30 Gbps)

Video Encode

2x 4K60 | 4x 4K30 | 10x 1080p60 | 22x 1080p30 (H.265)

2x 4K60 | 4x 4K30 | 10x 1080p60 | 20x 1080p30 (H.264)

Video Decode

2x 8K30 | 6x 4K60 | 12x 4K30 | 22x 1080p60 | 44x 1080p30 (H.265)

2x 4K60 | 6x 4K30 | 10x 1080p60 | 22x 1080p30 (H.264)

Display

2 multi-mode DP 1.4/eDP 1.4/HDMI 2.0

DL Accelerator

2x NVDLA Engines

Vision Accelerator

7-Way VLIW Vision Processor

Networking

10/100/1000 BASE-T Ethernet

Mechanical

260-pin SO-DIMM connector 69.6 mm x 45 mm



Carrier Board Technical Specifications

Connector

J2011 / J2012

 NVIDIA® Jetson Xavier™ NX Carrier Board

Jetson module connector

1*Jetson SODIMM connector, 260-pin

1*Jetson SODIMM connector, 260-pin

USB 3.0 Type A

4*USB 3.0 Type-A Connector

4*USB 3.0 Type-A Connector

USB Micro Type B

1*USB Micro B, RA Female

1*USB Micro B, RA Female

 Ethernet Port

1*RJ45 Gigabit Ethernet Connector (10/100/1000)

1*RJ45 Gigabit Ethernet Connector (10/100/1000)

Display Port

1*HDMI type A and 1*DP

1*HDMI type A and 1*DP

CSI Camera Connector

2*CSI Camera (15 pos, 1mm pitch, MIPI CSI-2 )

2*CSI Camera (15 pos, 1mm pitch, MIPI CSI-2 )

M.2 Key E

1*M.2 Key E Slot (75-pin) 2230

1*M.2 Key E Slot (75-pin) 2230

M.2 Key M

1*M.2 Key M Slot (75-pin) NVME 2280

1*M.2 Key M Slot (75-pin) NVME 2280

Multifunctional Port

2.0 Pitch 40 PIN

2.0 Pitch 40 PIN

Button Header

1*Button Header

1*Button Header

FAN Connector

1*Picoblade Header

1*Picoblade Header

CAN

1*CAN Bus Header (1x4, 2.54mm pitch, RA)

Reserved

RTC

1*RTC Back-up Coin Cell Socket (CR1220)

Reserved

 Power

1*DC Input Power TE Connector

1*DC Input Power TE Connector

Part List

  • 1 x Acrylic Cover
  • 1 x Aluminium Frame
  • 1 x Jetson Xavier NX module
  • 1 x Heatsink
  • 1 x Carrier board
  • 1 x 19V/4.74A (MAX 90W) Power Adapter (Power cable not included)

Resources



 reComputer Jetson NX 1

reComputer Jetson NX 2
