reComputer NVIDIA Jetson Nano 4GB Developer Kit (J1020)

SeeedSKU: SBC020

Price:
S$489
Stock:
In stock (6 units), ready to be shipped

Description

Note:

  • Due to global shortage of the official NVIDIA Jetson Developer Kits, we bring you the alternative reComputer Jetson Developer Kits, built with official NVIDIA Jetson Modules!
  • May 2022 Name change: 'reComputer Jetson-10-1-H0' has changed to 'reComputer J1020'.





J1020 is a hand-size edge AI box built with NVIDIA Jetson Nano Production Module, rich set of IOs, aluminium case, passive heatsink, pre-installed JetPack System, ready for your next AI application development and deployment.

reComputer Jetson

Features

  • Hand-size edge AI device built with NVIDIA Jetson Nano Production Module, with an overall dimension of 130mm*120mm*50mm, fits in everywhere.
  • Powered by the quad-core ARM® Cortex®-A57 MPCore processor.
  • 128-core NVIDIA Maxwell™ GPU with 128 NVIDIA CUDA® cores delivers 0.5 TFLOPs (FP16).

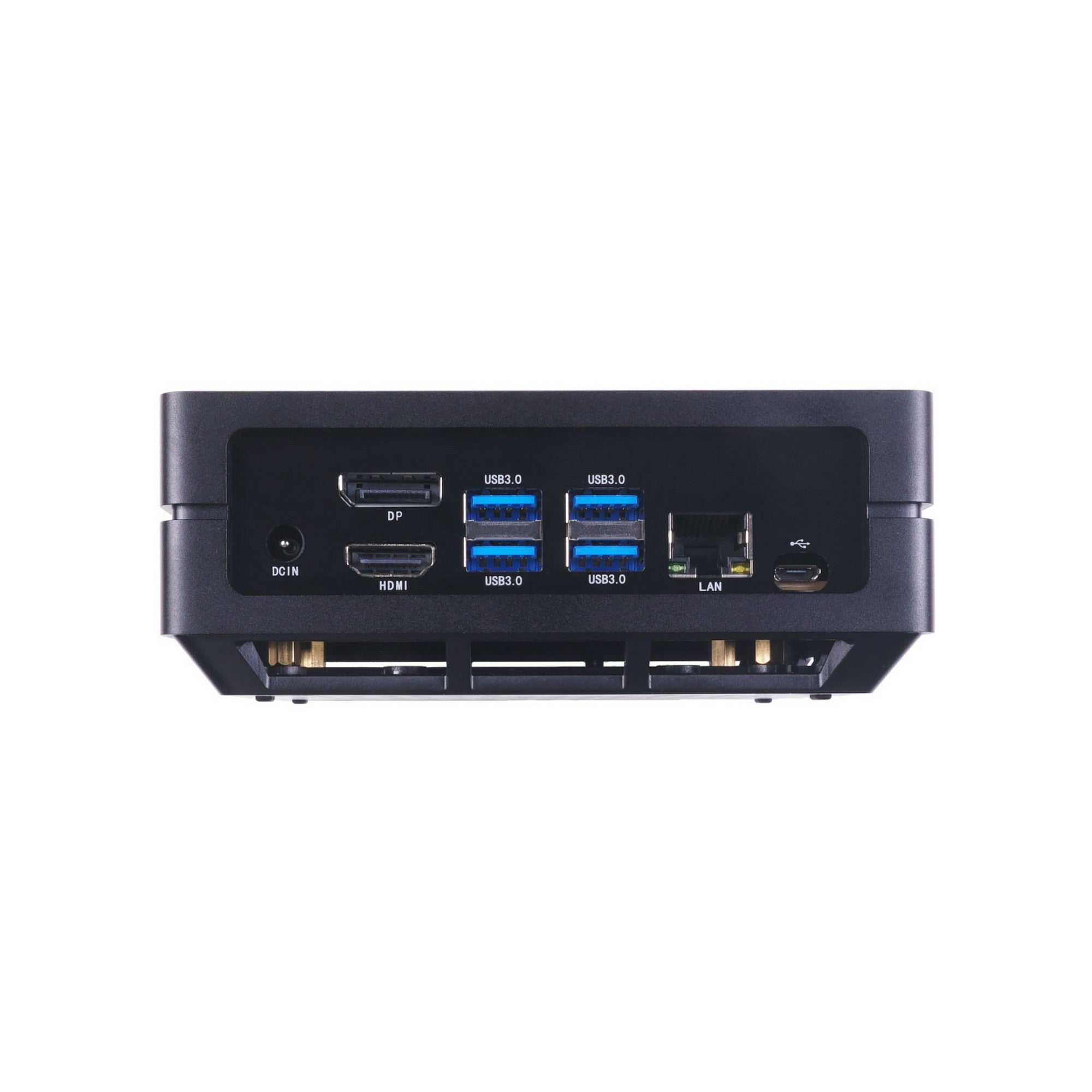

  • Rich peripherals including Gigabit Ethernet port, 4 USB 3.0 Type-A ports, HDMI port and DP port.
  • Pre-installed NVIDIA official JetPack software, ready for cloud native application.

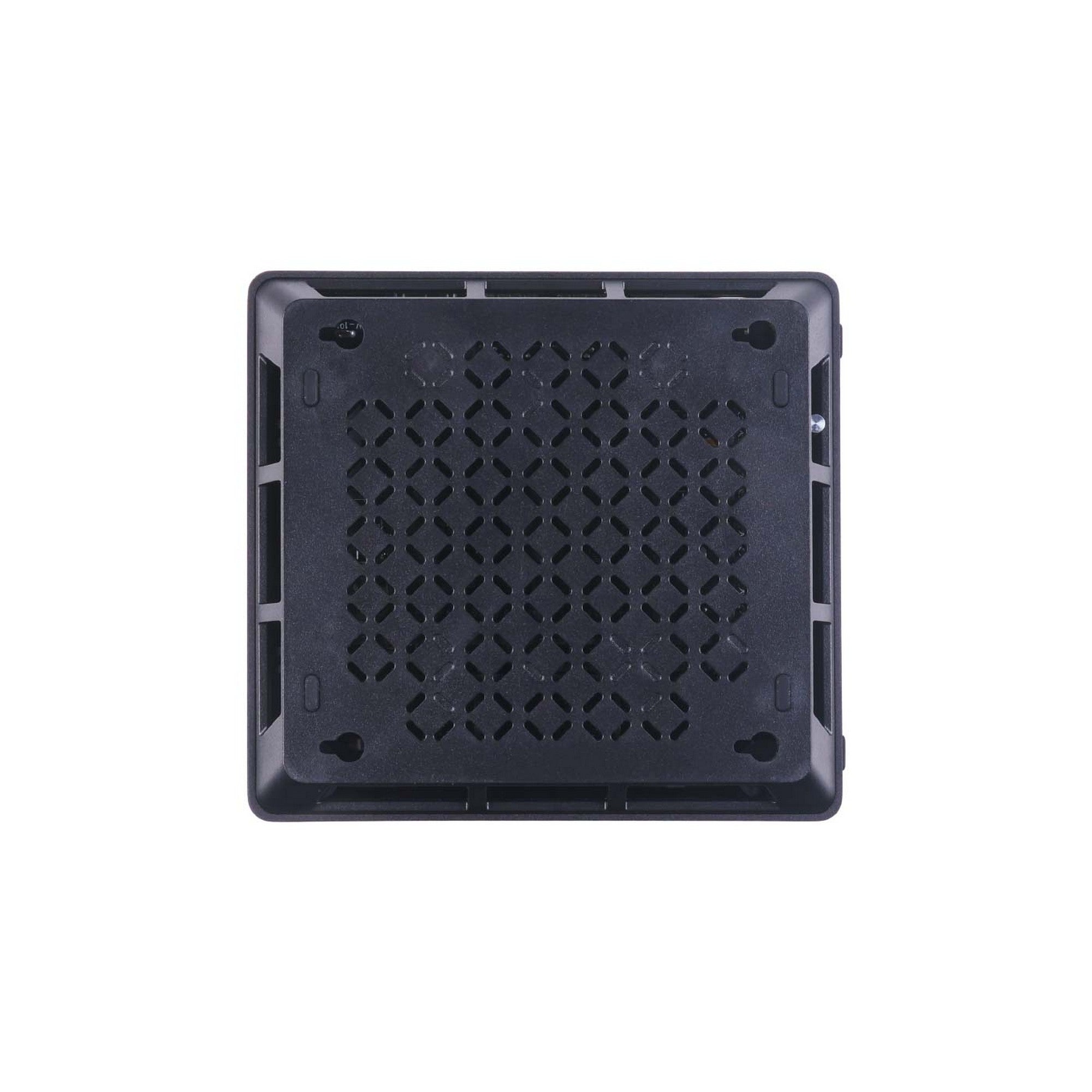

  • Able to mount on the wall with mounting holes on the back.
  • Support wide range of AI application fast building with our ecosystem partners.
  • Support Allxon to enable efficient remote hardware management services.

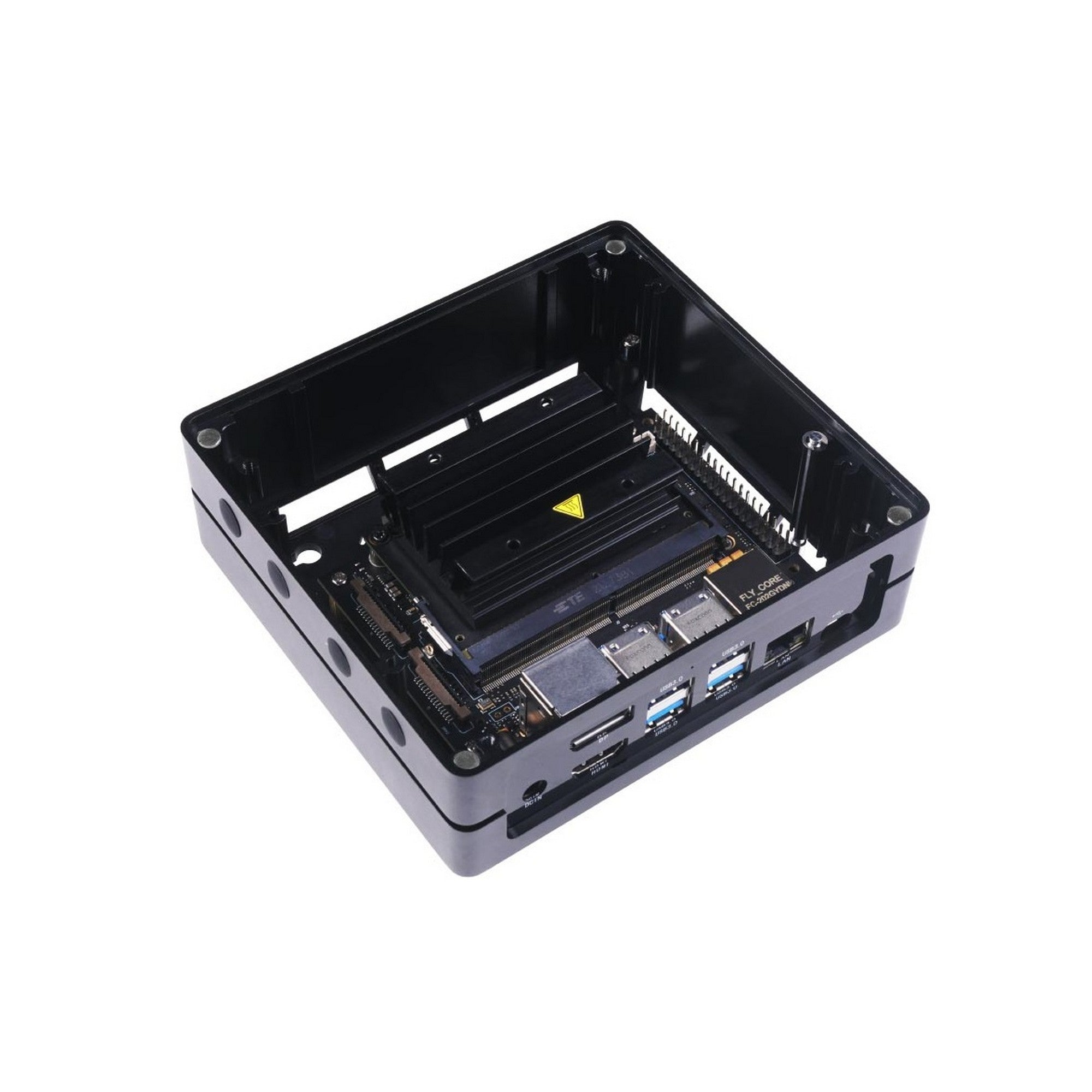

  • Enclosed in aluminium case with heat sink.

Note: Comes installed with JetPack 4.6 system.

Description

reComputer Jetson series are compact edge computers built with NVIDIA advanced AI embedded systems: J10 (Nano) and J20 (Xavier NX). With rich extension modules, industrial peripherals, thermal management combined with decades of Seeed’s hardware expertise, reComputer Jetson is ready to help you accelerate and scale the next-gen AI product emerging diverse AI scenarios.

reComputer Jetson is compatible with the entire NVIDIA Jetson software stack, cloud-native workflows, industry-leading AI frameworks, helping deliver seamless AI integration.

Application: For next-gen autonomous machine

  • With edge AI developers can deploy machine learning models in solving demanding challenges for advanced robotics and autonomous machines in the fields:
  • Edge AI into the Wild: UAV, Drone, Wildlife protection,
  • Agriculture
  • Smart City: Traffic,Retail, Healthcare
  • Industry 4.0:Manufacturing, Logistics, Deliver, Service

Jetson Applications



Comparison between NVIDIA Nano B01 Dev Kit and J1020 (previously named Jetson-10-1-H0)

Jetson Nano Comparison



Power-efficient AI computer, compact rich I/Os for endless AI possibilities:

reComputer J10 comes with Jetson Nano delivers 0.5 TFLOPs (FP16), making it ideal for high-performance compute and AI in embedded and edge systems. You get the performance of 128 NVIDIA CUDA® Cores,  quad-Core ARM CPUs. Combined with over 25.6GB/s of memory bandwidth, video encoded and decoded, these features make Jetson Nano the platform of choice to run multiple modern neural networks in parallel and process high-resolution data from multiple sensors simultaneously.

Now, you can innovate at the edge with powerful and efficient AI, computer vision, and high-performance computing at just 5 to 10 watts.


Powerful reference carrier board :

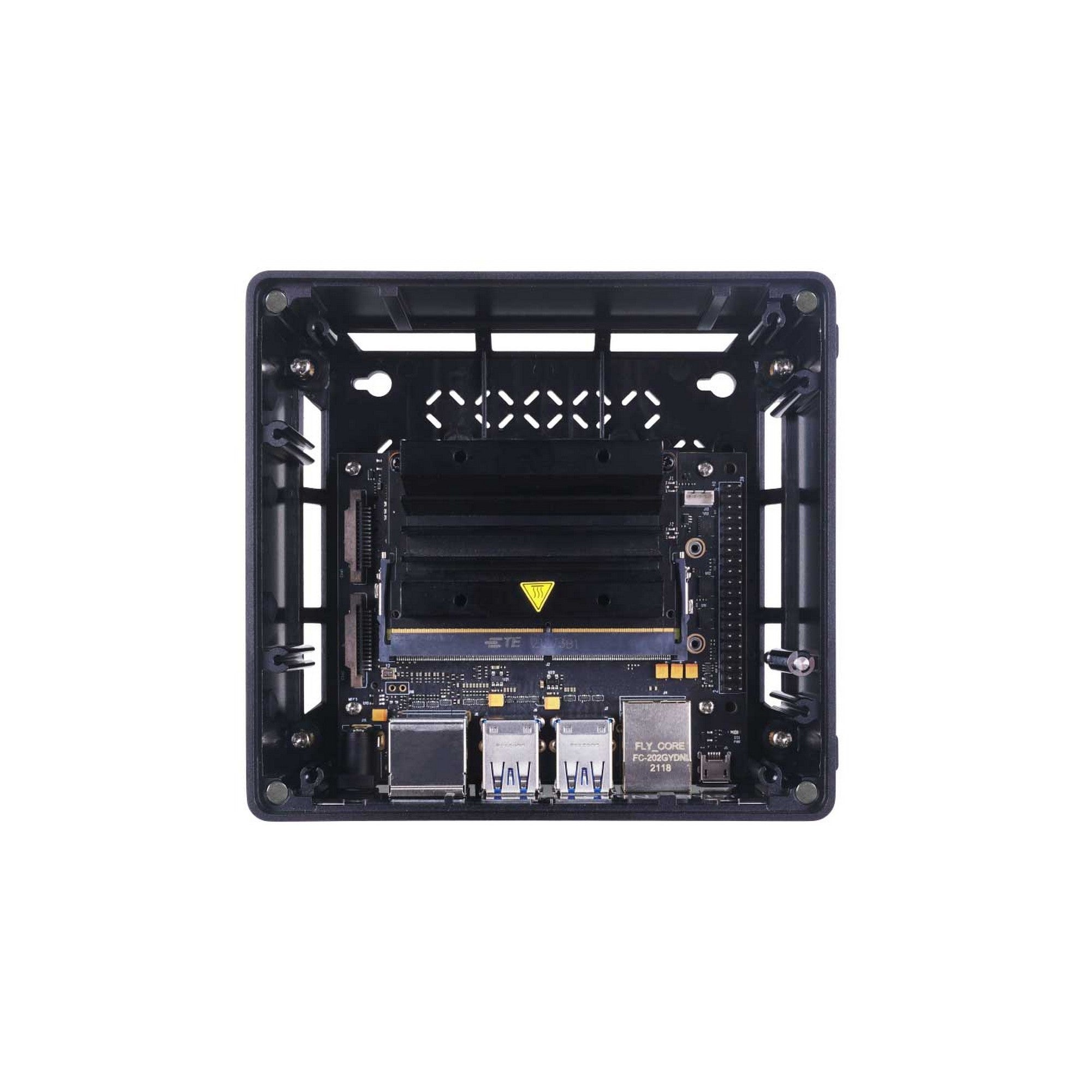

Seeed reference carrier board for J1020 is a high-performance, interface rich NVIDIA Jetson Nano compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB 3.0, USB 2.0, M.2 key M, CSI camera, GPIO, I2C, I2S, fans, and other rich peripheral interfaces. It has nearly the same functional design and size as the carrier board of NVIDIA Jetson Nano Developer Kit | NVIDIA Developer.

Take advantage of the small form factor, sensor-rich interfaces, and big performance to bring new capability to all your embedded AI and edge systems.

 Jetson-10-1-H0 Board 1

 Jetson-10-1-H0 Board 2

Desktop, Wall Mount, or fit in anywhere

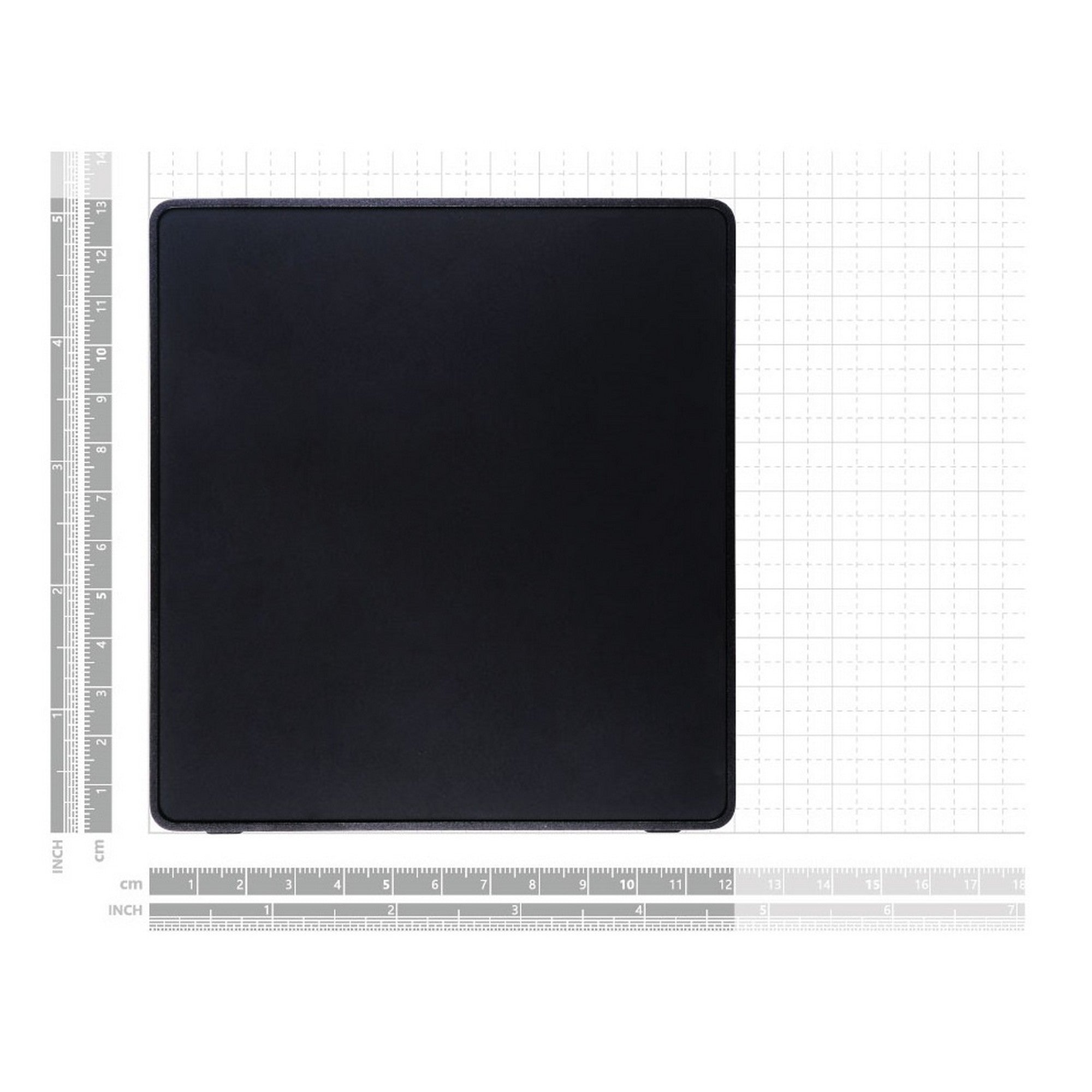

With an overall dimension of 130mm*120mm*50mm, it is only around 1/10 of the size of an ordinary computer case which makes it possible to fit in edge AI scenarios. The back screw holes allow you to hang the product as you need. We also provide other editions case like blue, silver and silver mental, whose stackable structure allows you to stack more middle layers to create rooms very easily.

Jetson-10-1-H0 Mount 1

Prebuild system for edge AI integration

All NVIDIA® Jetson™ modules and developer kits are supported by the same software stack, enabling you to develop once and deploy everywhere. Jetson Software is designed to provide end-to-end acceleration for AI applications and accelerate your time to market. We bring the same powerful NVIDIA technologies that power data center and cloud deployments to the edge.

NVIDIA JetPack includes NVIDIA Container Runtime with Docker integration, enabling GPU accelerated containerized applications on Jetson platform. Jetpack also brings support for NVIDIA Triton™ Inference Server to simplify the deployment of AI models at scale.

Jetson Software

Specifications

Module Technical Specifications

GPU

NVIDIA Maxwell™ architecture with 128 NVIDIA CUDA® cores

0.5 TFLOPs (FP16)

CPU

Quad-core ARM® Cortex®-A57 MPCore processor

Memory

4 GB 64-bit LPDDR4

1600MHz - 25.6 GB/s

Storage

16 GB eMMC 5.1 Flash

Video Encode

250 MP/sec

1x 4K @ 30 (HEVC)

2x 1080p @ 60 (HEVC)

4x 1080p @ 30 (HEVC)

Video Decode

500 MP/sec

1x 4K @ 60 (HEVC)

2x 4K @ 30 (HEVC)

4x 1080p @ 60 (HEVC)

8x 1080p @ 30 (HEVC)

Camera

12 lanes (3x4 or 4x2) MIPI CSI-2 DPHY 1.1 (18 Gbps)

Connectivity

M.2 Key M

10/100/1000 BASE-T Ethernet

Display

HDMI 2.0 or DP1.2 | eDP 1.4 | DSI (1 x2) 2 simultaneous

UPHY

1 x1/2/4 PCIE, 1x USB 3.0, 3x USB 2.0

I/O

1x SDIO / 2x SPI / 4x I2C / 2x I2S / GPIOs -> I2C, I2S

Size

69.6 mm x 45 mm

Mechanical

260-pin edge connector


Carrier Board Technical Specifications

Connector

J1020

NVIDIA Jetson Nano Carrier Board

Jetson module connector

1*Jetson SODIMM connector, 260-pin

1*Jetson SODIMM connector, 260-pin

USB 3.0 Type A

4*USB 3.0 Type-A Connector

4*USB 3.0 Type-A Connector

USB Micro Type B

1*USB Micro B, RA Female

1*USB Micro B, RA Female

 Ethernet Port

1*RJ45 Gigabit Ethernet Connector (10/100/1000)

1*RJ45 Gigabit Ethernet Connector (10/100/1000)

Display Port

1*HDMI type A and 1*DP

1*HDMI type A and 1*DP

CSI Camera Connector

2*CSI Camera (15 pos, 1mm pitch, MIPI CSI-2 )

2*CSI Camera (15 pos, 1mm pitch, MIPI CSI-2 )

M.2 Key E

Disabled

1*M.2 Key E Slot (75-pin) 2230

M.2 Key M

1*M.2 Key M Slot (75-pin) NVME 2280

\

Multifunctional Port

2.0 Pitch 40 PIN

2.0 Pitch 40 PIN

Button Header

1*Button Header

1*Button Header

FAN Connector

1*Picoblade Header

1*Picoblade Header

CAN

Diasabled

\

RTC

1*RTC Back-up Coin Cell Socket (CR1220)

Reserved

 Power

1*DC Input Power TE Connector

1*DC Input Power TE Connector



Part List

  • 1 x Acrylic Cover
  • 1 x Aluminium Frame
  • 1 x Jetson Nano module
  • 1 x Heatsink
  • 1 x Carrier board
  • 1 x 12V/2A  Power Adapter (with 5 interchangeable adapter plugs)



Resources



Jetson-10-1-H0 1

Jetson-10-1-H0 2
