Waveshare NVIDIA Jetson Xavier NX 8GB/16GB Developer Kit

WaveshareSKU: SBC025

RAM Option: 8GB
Price:
S$1,129

Description

Note:

  • Due to global shortage of the official NVIDIA Jetson Developer Kits, we bring you the Waveshare NVIDIA Jetson Xavier NX 8GB/16GB Developer Kit, built with official NVIDIA Jetson Xavier NX Module!
  • Waveshare NVIDIA Jetson Xavier NX Developer Kit comes flashed a OS to the SSD of the Jetson Xavier NX. You can just power and complete the configuration and use it.



Waveshare NVIDIA Jetson Xavier NX 8GB/16GB Developer Kit is designed by Waveshare based on the NVIDIA Jetson Xavier NX Module, whose peripheral interface, size, and thickness are almost the same as the original Jetson Xavier NX Developer Kit, and the core board is easier to be upgraded. With the core board, you can easily realize more functions in AI projects such as image classification, target detection, segmentation, speech processing, and so on.

This kit includes a Xavier NX Module with onboard 16GB eMMC (does not support Micro SD card), free 128GB NVMe SSD (installed before delivery), wireless network card and power adapter. It comes flashed with a OS to the SSD. You can just power and complete the configuration and use it.



Features:

  • Built with official NVIDIA Jetson Xavier NXModule
  • Compatible with expansion modules and cases of the original Jetson Xavier NX Developer Kit
  • Comes flashed with OS to the free 128GB NVMe SSD (installed before delivery)
  • Onboard 16GB eMMC storage for more stable reading/writing
  • Comes with wireless network card and power adapter
  • Color-coded header pins with clear labels, handy for use
  • Jetson Xavier NX modules cloud-native support lets developers build and deploy high-quality, software-defined features on embedded and edge devices
  • Up To 21 TOPS AI performance, ideal for high-performance AI systems like commercial robots, smart cameras, and other AIoT embedded systems



Jetson Nano Module Specification:

GPU NVIDIA Maxwell™ Architecture with 384 NVIDIA CUDA® Cores 48 TFLOPS Cores
CPU 6-core NVIDIA Carmel ARM® v8.2 64-bit CPU 6 MB L2 + 4 MB L3
Memory 8GB/16GB 128-bit LPDDR4 x 59.7GB/s
Store 16 GB eMMC 5.1 Flash / M.2 M KEY NVME Solid State Interface
Video encoding 2 x 4K @ 60

4 x 4K @ 30 (HEVC)
10 x 1080p @ 60 (HEVC)
22 x 1080p @ 30 (HEVC)

Video decoding 2 x 8K @ 30

6 x 4K @ 60 (HEVC)
12 x 4K @ 30 (HEVC)
22 x 1080p @ 60 (HEVC)
44 x 1080p @ 30 (HEVC)

Camera Up to 6 cameras (24 via virtual channels)

14 channels (3 x 4 or 6 x 2 or 3 x 4 + 1 x 2 or 5 x 2 + 1 x 4)
MIPI CSI-2D-PHY 1.2 (up to 30 Gbps)

Network Wi-Fi requires an external chip

10/100/1000 BASE-T Ethernet

Display 2 Multimode DP 1.4/eDP 1.4/HDMI 2.0
UPHY 1 x 1 (PCIe Gen3) + 1 x 4 (PCIe Gen4), 1 x USB 3.0, 2 x USB 2.0
IO 3 UART, 2 SPI, 2 I2S, 4 I2C, multiple GPIOs





Package Content:

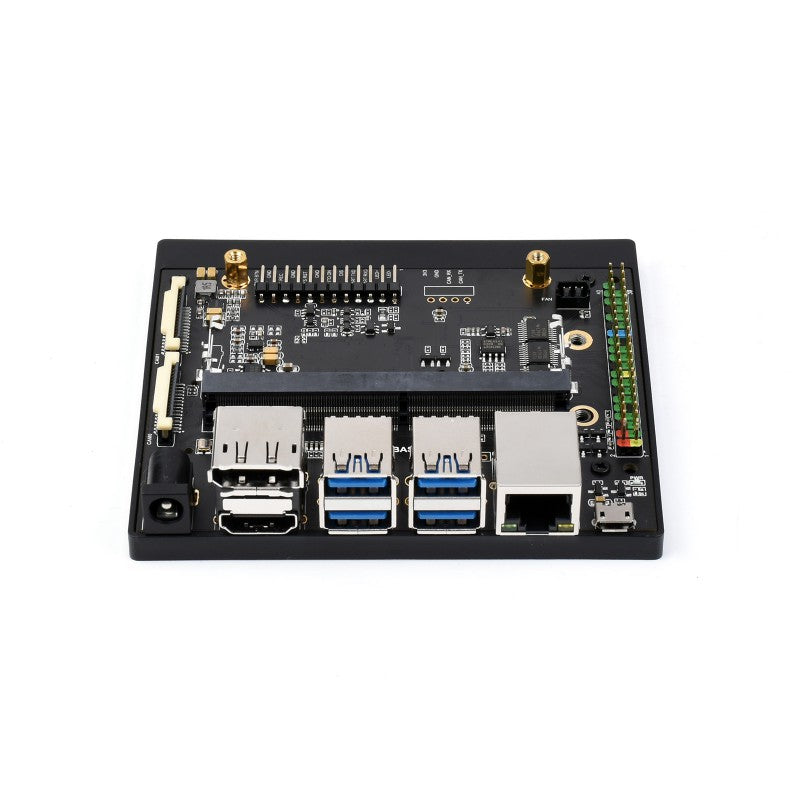

  1. JETSON-IO-BASE-B (carrier board)
  2. Jetson Xavier NX 8GB/16GB module
  3. Cooling Fan
  4. 128GB NVMe SSD
  5. Wireless network card
  6. Power adapter (US plug with complimentary UK/SG adapter)



Resources:



Waveshare NVIDIA Jetson Xavier NX Developer Kit
