Description

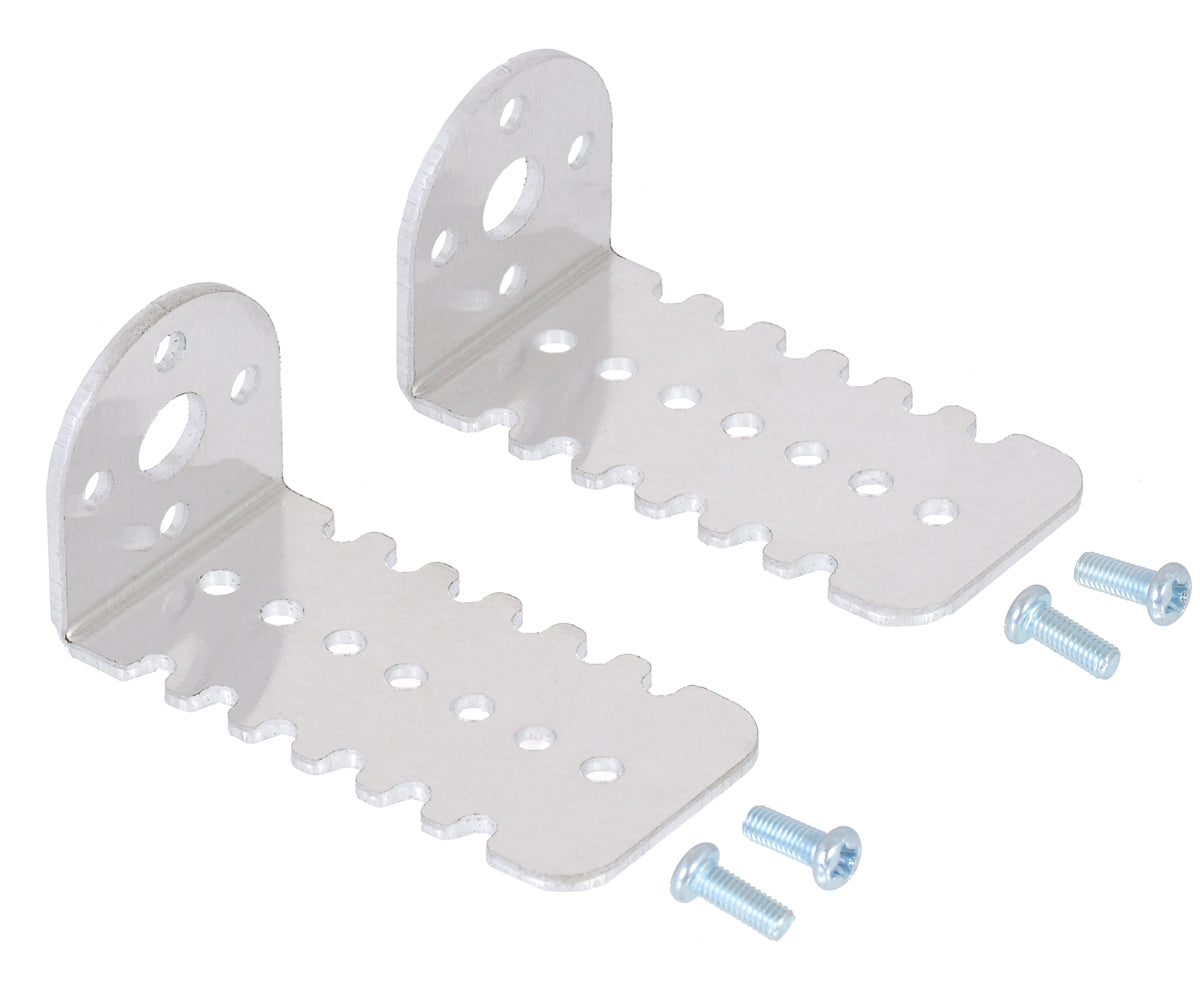

These aluminum gearmotor brackets let you securely mount Pololu’s 25D mm metal gearmotors to your project. The brackets are sold in pairs, and each bracket includes two M3 screws for securing the motor to the bracket. Each bracket also features seven mounting holes and twelve mounting slots for M3 or #4-size screws (not included), giving you a variety of mounting options.

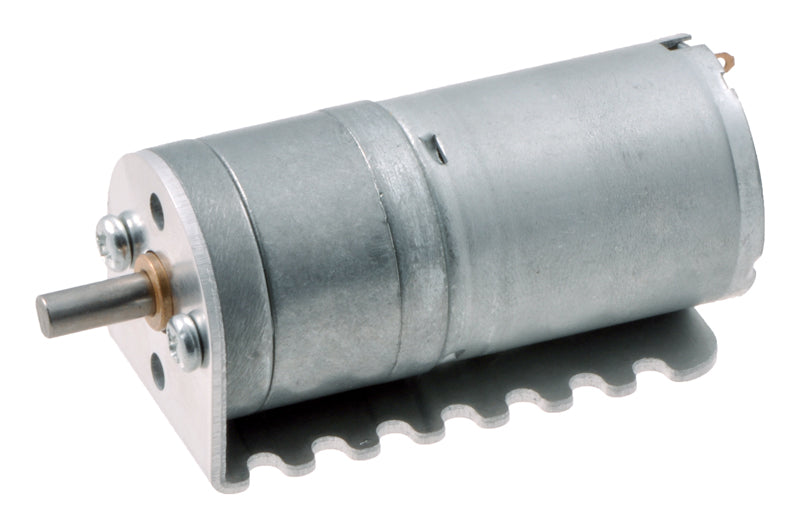

Pololu 25D mm gearmotor with bracket. |
---|
These light-weight brackets (8.5 g each) are specifically designed for the Pololu 25D mm metal gearmotors, including the same motors used in the Wild Thumper chassis. Each bracket features seven mounting holes and twelve mounting slots (six along each edge) for M3 or #4-size screws, giving you a variety of mounting options. A total of four M3 screws (two for each bracket) are included for securing the motors to the brackets.
Our 4mm mounting hub works nicely with this bracket.
Dimension diagram for the #2676 Pololu 25D mm Metal Gearmotor Bracket. Units are mm over [inches]. |
---|
This drawing is also available as a downloadable PDF (119k pdf).
Note: This product replaces our original 25D mm metal gearmotor bracket. This new version has been changed to use a mounting hole and slot spacing of 0.25″ (6.35 mm); the original bracket had a hole/slot spacing of 0.245″ (6.2 mm). To accommodate this change, the locations of the mounting holes and slots have changed, and the total number of slots on each side has been reduced from seven to six.
Specifications
Parameter | Value |
---|---|
Weight | 8.5 g |
