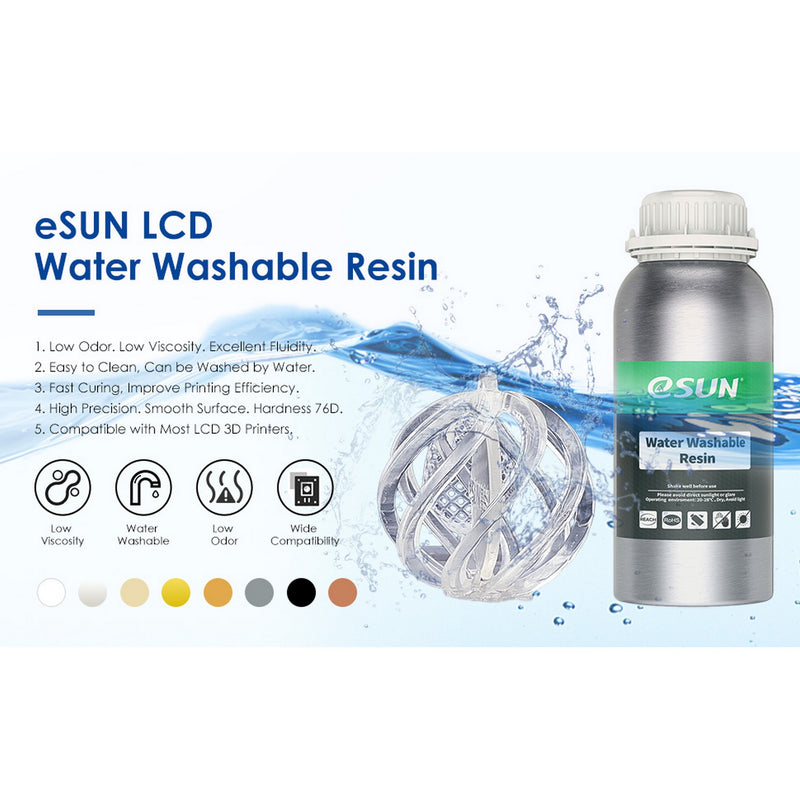

eSun Water Washable Resin for LCD 3D Printer 0.5kg/bottle

eSunSKU: TDP151

Color: White
Sold out


eSun Water Washable Resin is upgraded on the basis of general resin, lower odor than most of general resin, suitable for fast prototyping with art and craft, home decoration, architecture, jewelry, dentistry, animation, and so on.

You can clean the printed model with water directly, which effectively protect your body from contacting alcohol and other industrial solvent. It also greatly shortens the post-processing time, improving printing efficiency and cost-effectiveness.

The molding precision is high, with high resolution , the surface of the printed product is smooth, and the printing details are clearly visible. The mechanical properties such as strength, toughness and rigidity are balanced. Low viscosity, high release rate, easy to print.


Water Washable Resin Features:

【Water Washable & Lower Odor】Easy to clean, you can directly clean the prints with water, and no pungent odor, which effectively protect your body from contacting alcohol and other industrial solvent, low skin irritation, improve printing efficiency.

【High Precision & Low Shrinkage】eSUN Water Washable Resin contains acrylate monomers as to reduce volume shrinkage during the photocuring process , which ensures the high precision of the print model with smooth finish.

【Fast Curing & Great Stability】Low viscosity and excellent fluidity make it easy to separate the cured resin from the uncured one. Rapid resin was designed to improve print speed, shorten the curing time and enhance the printing efficiency of LCD 3D printer.

【Professional LCD Molding Resin】Special designed for LED light source to achieve better printing quality. eSUN Water Washable Resin is compatible for most LCD 3D printers for fast prototyping with architecture, jewelry, dentistry, animation, and so on.

【Safe and Secure Packaging】Net Weight: 500g. Thickened bottle completely protected from light. Leak-proof bottle fully wrapped with a plastic bubble bag to make sure the resin stays in place where they belong.


Certifications: RoHS, Reach, TDS

Viscosity(mPa·s) 110-180
Density(g/cm3) 1.10-1.14
Tensile Strength(MPa) 19-46
Elongation at Break(%) 17-30
Flexural Strength(MPa) 15-50
Impact Strength(J/m) 37-97
Tearing Strength(GPa) /
Heat Distortion Temp(℃) /
Hardness(Shore D)  74-82
Grades (out of 10)
Strength(S)  6
Toughness(F)  7
Forming(P)  8
Accuracy(S)  8
Speed (A)  8


Recommended printing parameters
Settings Machine Type
Low Light Intensity Medium Light Intensity High Light Intensity (Monochrome LCD Screen)
Representative Machine AnyCubic Photon eSUN LCD 3.0
Nova Bene 4
Creality LD-002R
Anycubic MONO X
Phrozen Sonic Mini
Exposure Time/s 8-10 5-6 Not recommended
Bottom Layer Count 3-5
Bottom Exposure Time 40-60 30-40 Not recommended
Lifting Distance/mm 5.5&6-inch screen:5-6 or Higher ; 8.9&13.3-inch screen:8-12 or Higher
Lift Speed/mm·min-1  90-150  90-120  Not recommended
Retract Speed/mm·min-1    150-200



How to Use:

1) Shake well before use, prohibiting the use of resin in places where there is a lot of sunlight.

2) Wear gloves before use to avoid direct skin contact and keep the room ventilated.

3) If skin contacted with resin, please wash away with fresh running water as soon as possible. If you feel unwell, seek timely medical attention.

4) Do not pour the resin in the resin vat into the unused resin, do not leave the resin in the resin vat for a long time without use to avoid resin pollution affect the printing effect.


How to Store:

1) Keep away from light seals at room temperature. (Sunshine contains a lot of UV light, will solidify photosensitive resin.)

2) It is recommended to store the resin under 15C -35℃ in a sealed container. Avoid any dusty or moist environment.

3) The resin is stable under different climatic conditions and is also easy to store, overcoming the shortcomings of other resins easily damp softening and environmental corrosion.
