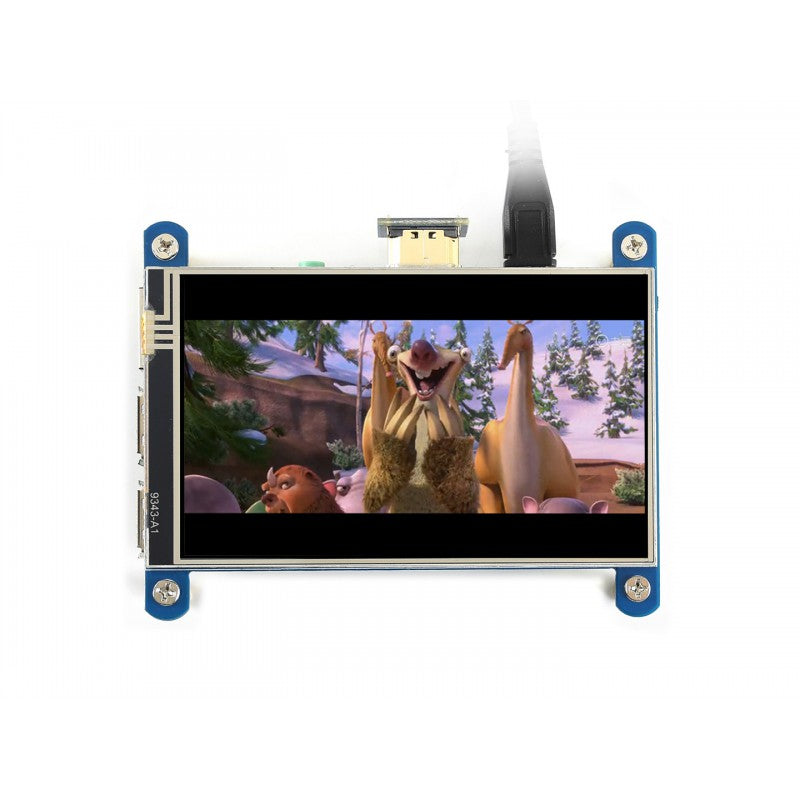

4 inch 480x800 Resistive Touch Screen for Raspberry Pi

WaveshareSKU: DIS014

Price:
$60.90
Stock:
In stock

Description

Features

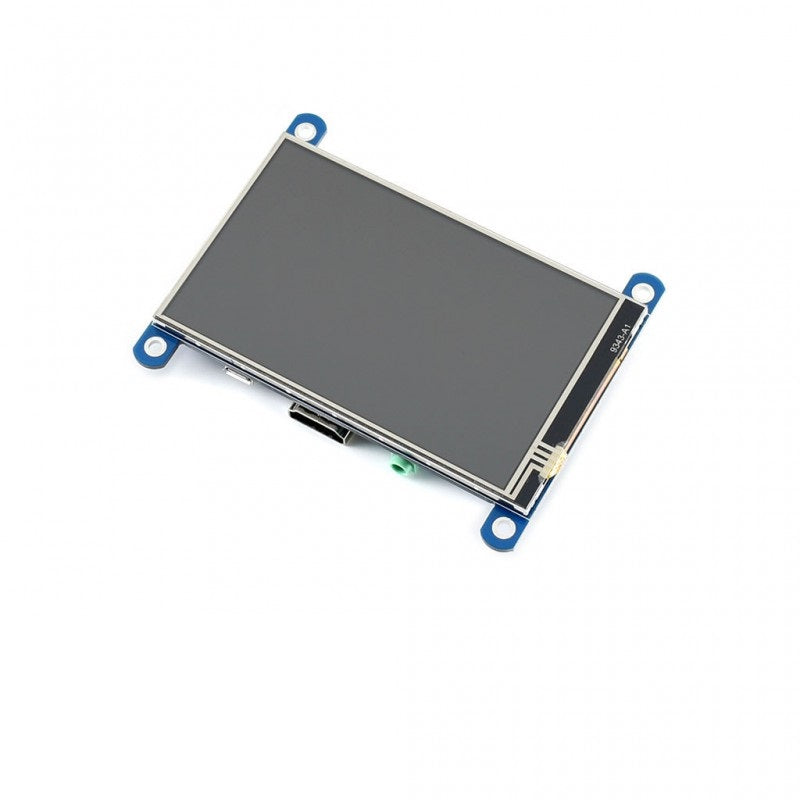

  • 4inch IPS screen, 480x800 hardware resolution
  • Resistive touch control

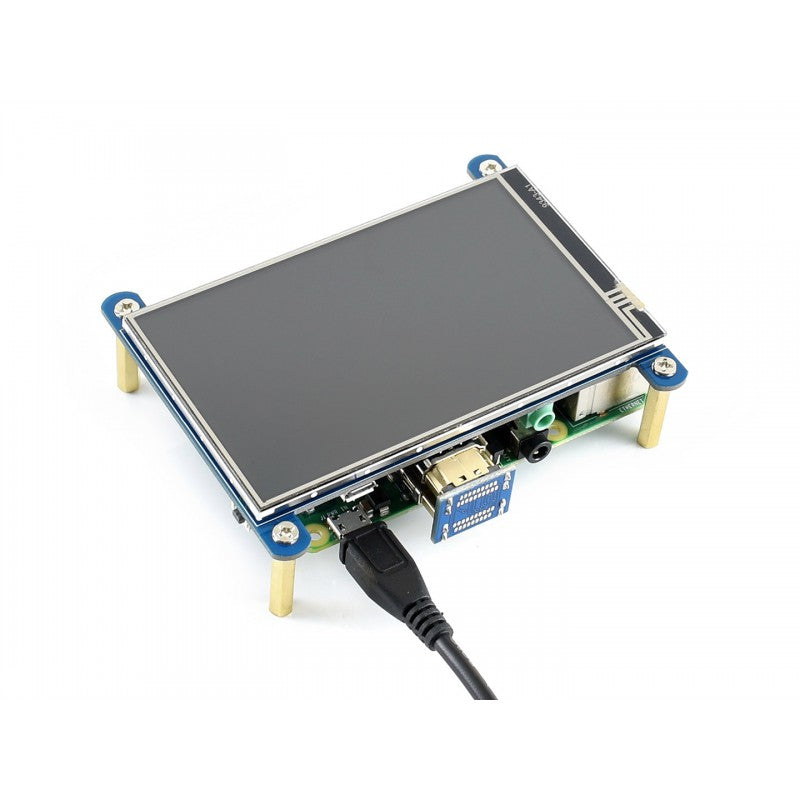

  • Compatible and Direct-connect with any revision of Raspberry Pi (except the Pi 1 model B or Pi Zero, which requires an HDMI cable)

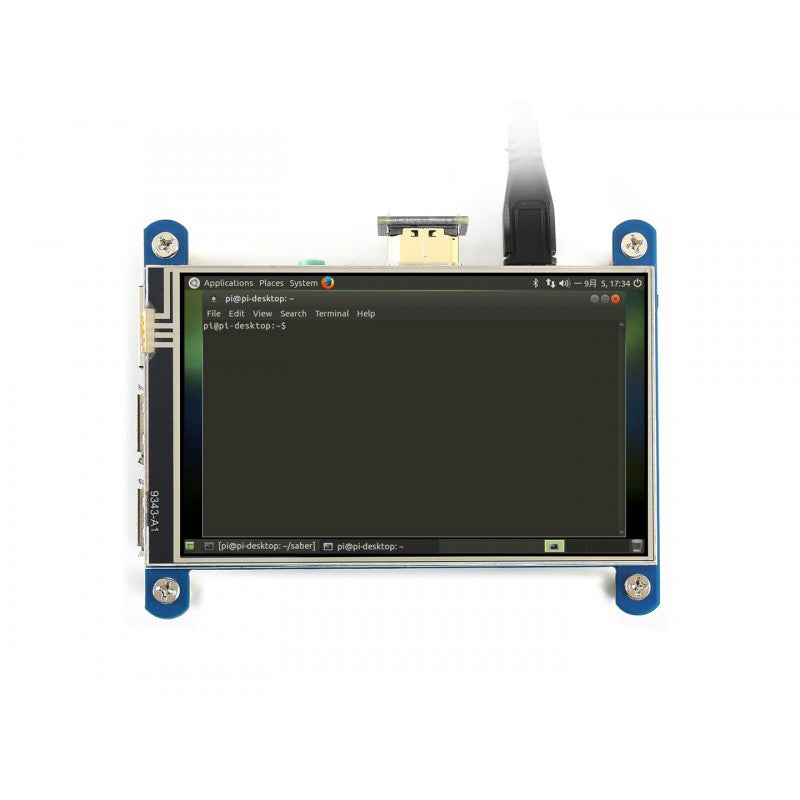

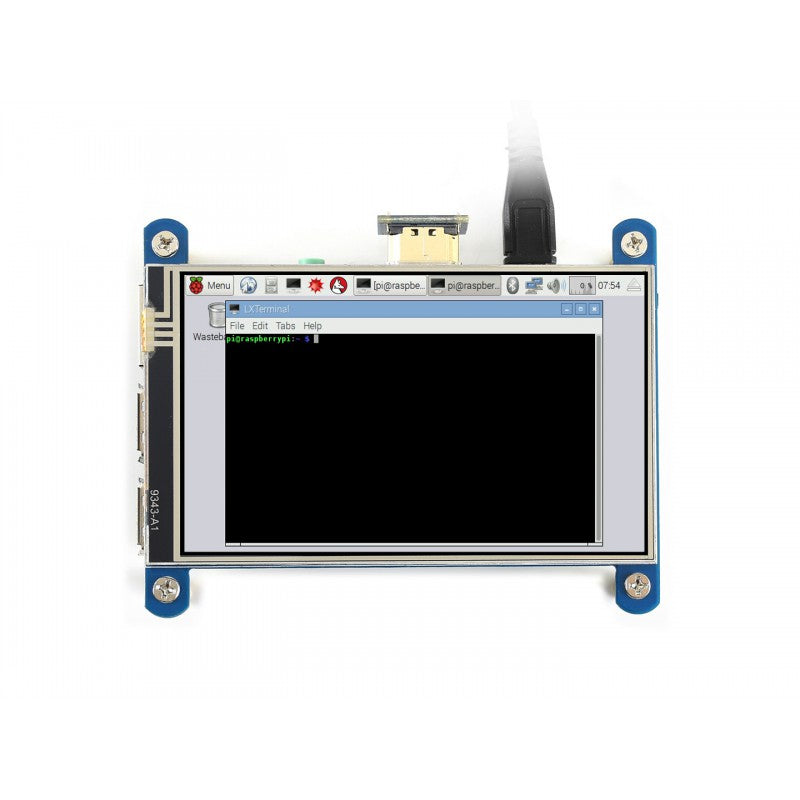

  • Drivers provided (works with your own Raspbian/Ubuntu/Kali/Retropie)

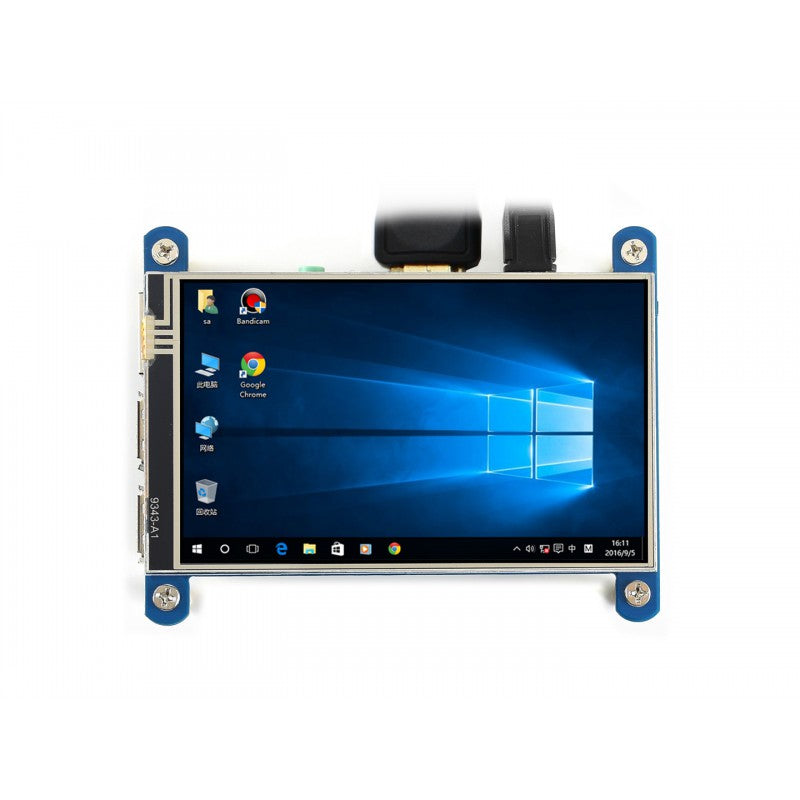

  • Also works as a computer monitor, in this case, touch panel is unavailable and HDMI cable is required
  • HDMI interface for displaying, no I/Os required (however, the touch panel still needs I/Os)

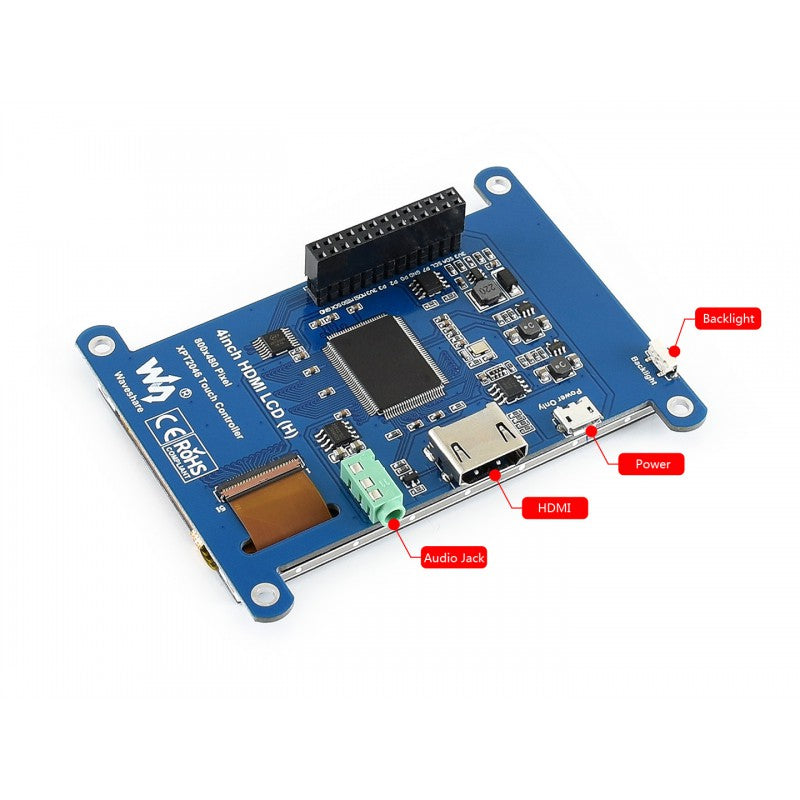

  • 3.5mm audio jack, supports HDMI audio output
  • Backlight can be turned off to lower power consumption

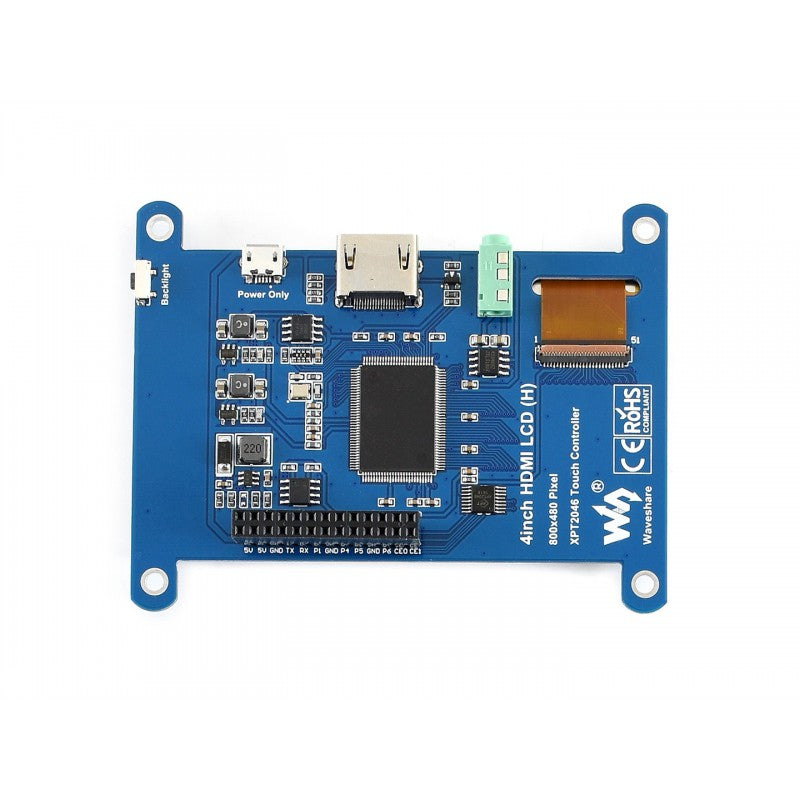

Interface

PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 11, 12, 13, 15, 16, 18, 24 NC NC
6, 9, 14, 20, 25 GND Ground
19 TP_SI SPI data input of Touch Panel
21 TP_SO SPI data output of Touch Panel
22 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
23 TP_SCK SPI clock of Touch Panel
26 TP_CS Touch Panel chip selection, low active

External Dimension

4inch-HDMI-LCD-H-dimension

Development Resources

Wiki : www.waveshare.com/wiki/4inch_HDMI_LCD_(H)



Package Includes:

  1. 4inch HDMI LCD (H) x1
  2. HDMI connector x1
  3. HDMI to micro HDMI connector x1
  4. Touch pen x1
  5. RPi screws pack (4pcs) x1
