Creality 42mm (42-34 42-40 X,Y,Z,E Axis) Stepper Motors for Ender and CR 3D Printers

CrealitySKU: TDP036

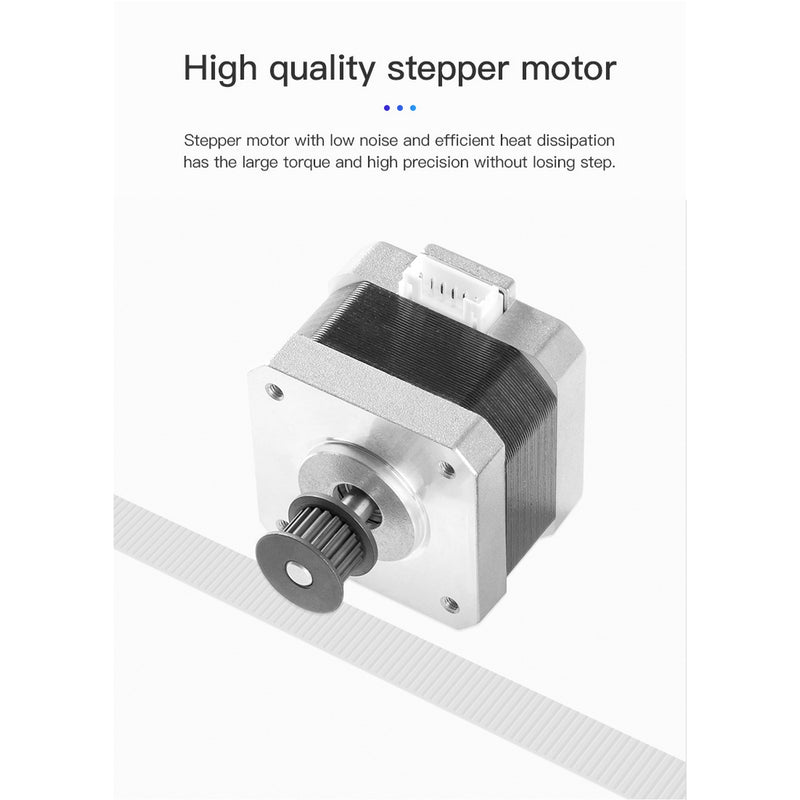

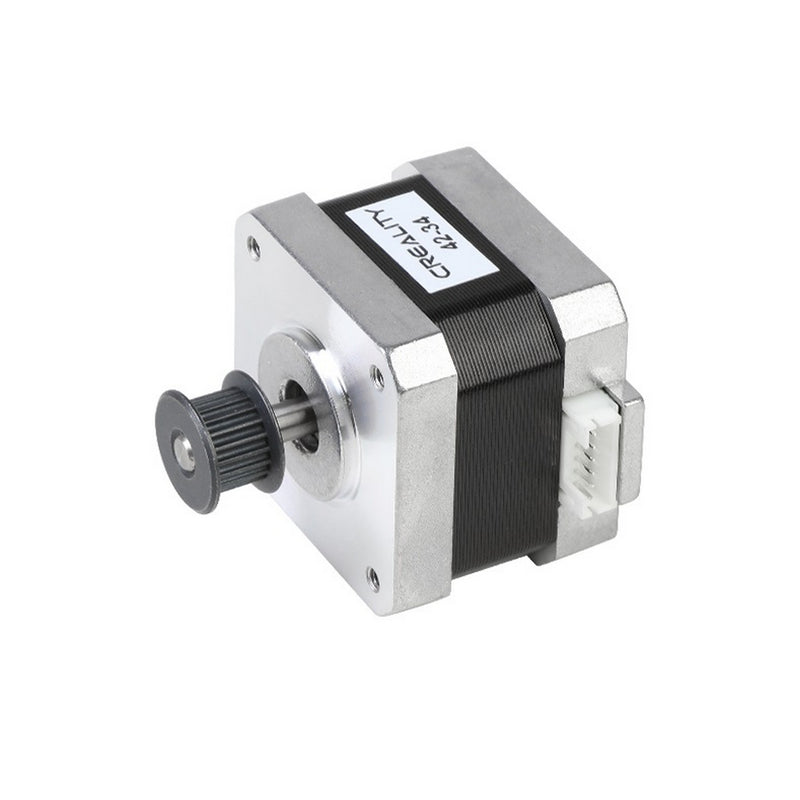

Motor Variant: 42-34 with Wheel (X-axis/Y-axis)
Price:
$25
Stock:
In stock

Description

These are replacement stepper motors for most Creality 3D Printers including Ender 3, Ender 3 Pro, Ender 3 V2, CR-6 SE and some CR-10 series printers.

Usually the 3 axis motors (X,Y,Z) are 42mm by 34mm or 42-34 motors and the extruder motor (E) is 42mm by 40mm or 42-40 D shaft motors. Also, the X and Y axis motors usually come with the wheels attached to control the timing belt while the Z axis motor does not.

The table below shows which size stepper motor that fits which axis on some of the different printer models. If your printer is not listed, the best way to make sure you are getting the correct replacement motor is to remove the faulty one on your printer and checking the model number and whether or not there are wheels attached to the motors.

Models X-axis Y-axis Z-axis Extruder
CR-10 Mini 42-34 42-34 42-34 42-40
CR-10S (300) 42-40 42-40 42-34 42-40
CR-10-S4 (400) 42-40 42-60 42-34 42-40
CR-10-S5 (500) 42-40 42-60 42-34 42-40
CR-10S Pro 42-40 42-40 42-34 42-40
CR-X 42-40 42-40 42-34 42-40
CR20 Pro 42-34 42-34 42-34 42-40
Ender-3 42-34 42-34 42-34 42-40
Ender-3 Pro 42-34 42-34 42-34 42-40
Ender-5 42-34 42-40
(dual shaft)
42-34
(round shaft)
42-40

Technical Specifications

  • Step angle: 1.8 degrees
  • Steps: 200
  • Nominal Voltage: 4.83V
  • Current Rating: 1.5A
  • Rated speed: 1-1000rpm
  • Rated speed: 1-1000rpm
  • Rated torque: 0.4NM
  • Ambient Temperature: -20 - 50℃



Creality 42mm Stepper Motors
