3.5 inch 480x320 Resistive Touch Screen for Raspberry Pi RPi LCD (A) 9904

WaveshareSKU: DIS012

Price:
S$35.90
Stock:
Only 2 units left

Description

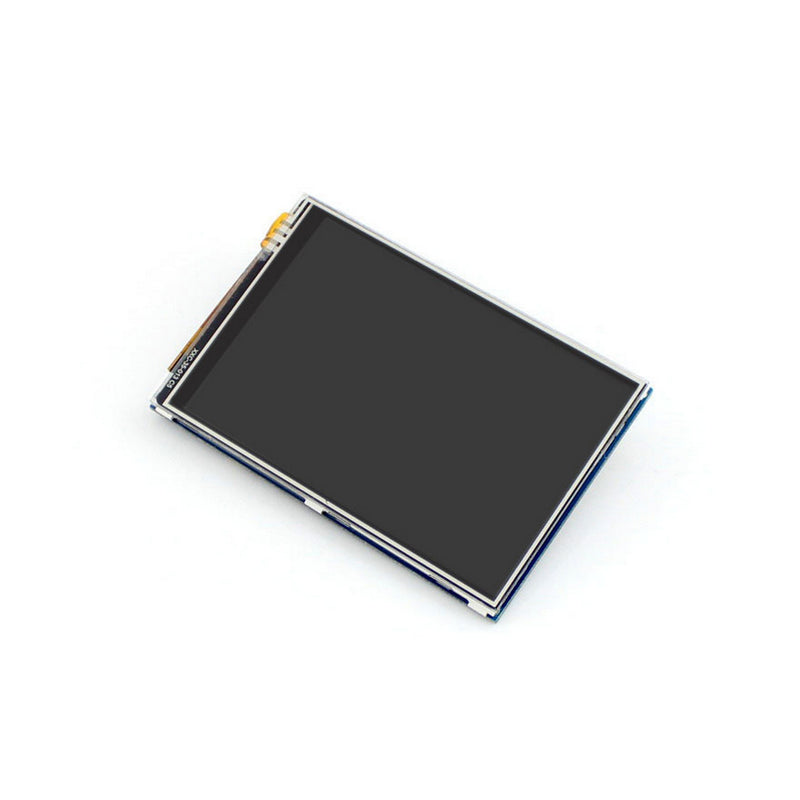

This is a mini 3.5 inch resistive touch screen for the Raspberry Pi and uses the GPIO pins to interface with the Pi
  • 480x320 hardware resolution
  • Resistive touch control
  • Supports any revision of Raspberry Pi (directly-pluggable)
  • Drivers provided (works with your own Raspbian/Ubuntu/Kali)
  • Supports FBCP software driver as well, allows to config software resolution and set up dual-display
  • Size perfectly fits the Pi (Raspberry Pi B+/2B/3B/3B+/4B)
  • High quality immersion gold surface plating
  • Combined with the Raspberry Pi, allows you to:
    • Take photos by touching (up to 17 camera modes)
    • Use software keyboard (system interaction without keyboard/mouse)

Includes:

  1. 3.5inch RPi LCD (A) x 1
  2. Touch pen x 1
  3. RPi screws pack (2pcs) x 1
  4. Quick start sheet x1

Documentation: https://www.waveshare.com/wiki/3.5inch_RPi_LCD_(A)

LCD TYPE TFT
LCD INTERFACE SPI
TOUCH SCREEN TYPE Resistive
TOUCH SCREEN CONTROLLER XPT2046
COLORS 65536
BACKLIGHT LED
RESOLUTION 320*480 (Pixel)
ASPECT RATIO 8:5



PIN NO. SYMBOL DESCRIPTION
1, 17 3.3V Power positive (3.3V power input)
2, 4 5V Power positive (5V power input)
3, 5, 7, 8, 10, 12, 13, 15, 16 NC NC
6, 9, 14, 20, 25 GND Ground
11 TP_IRQ Touch Panel interrupt, low level while the Touch Panel detects touching
18 LCD_RS Instruction/Data Register selection
19 LCD_SI / TP_SI SPI data input of LCD/Touch Panel
21 TP_SO SPI data output of Touch Panel
22 RST Reset
23 LCD_SCK / TP_SCK SPI clock of LCD/Touch Panel
24 LCD_CS LCD chip selection, low active
26 TP_CS

Touch Panel chip selection, low active
