Raspberry Pi 4 Ultimate Bundle with ABS Plastic Casing


Raspberry Pi 4: No Pi 4 Board
MicroSD Card: Original
Price:
S$105.20
Stock:
Sold out

Description

 Raspberry Pi 4 Ultimate Bundle with ABS Plastic Casing



Try out the latest Raspberry Pi 4 with this Basic Bundle! The latest addition to the Raspberry Pi family is a significant upgrade from the previous generation. The Pi 4 now has support for dual screen display up to 4K resolution, Bluetooth 5.0, Gigabit Ethernet, USB 3.0 ports and choice of more RAM! Included in this bundle is everything you need, including the Raspberry Pi 4 equipped with the power of 4GB/8GB of RAM, the official Raspberry Pi USB-C Power Supply, a robust ABS plastic casing and heat sinks to protect and keep this little beast cool and running well!

Included in this ultimate bundle is also a high resolution 8 Megapixels official Raspberry Pi camera with a holder which adds a whole new dimension to your project. With a camera, you would be able to create projects like surveillance cameras, object detection and many more fun and exciting computer vision ideas!


As the Pi 4 now uses the non standard HDMI port, we have included a micro HDMI to standard HDMI cable as well so that you can connect to your display. With the SanDisk Ultra 32GB microSD card with an Application Class of A1 (Meaning it can handle a minimum of 1500 reading and 500 writing operations per second), you can also rest easy knowing that the microSD card is not bottle-necking your programs!

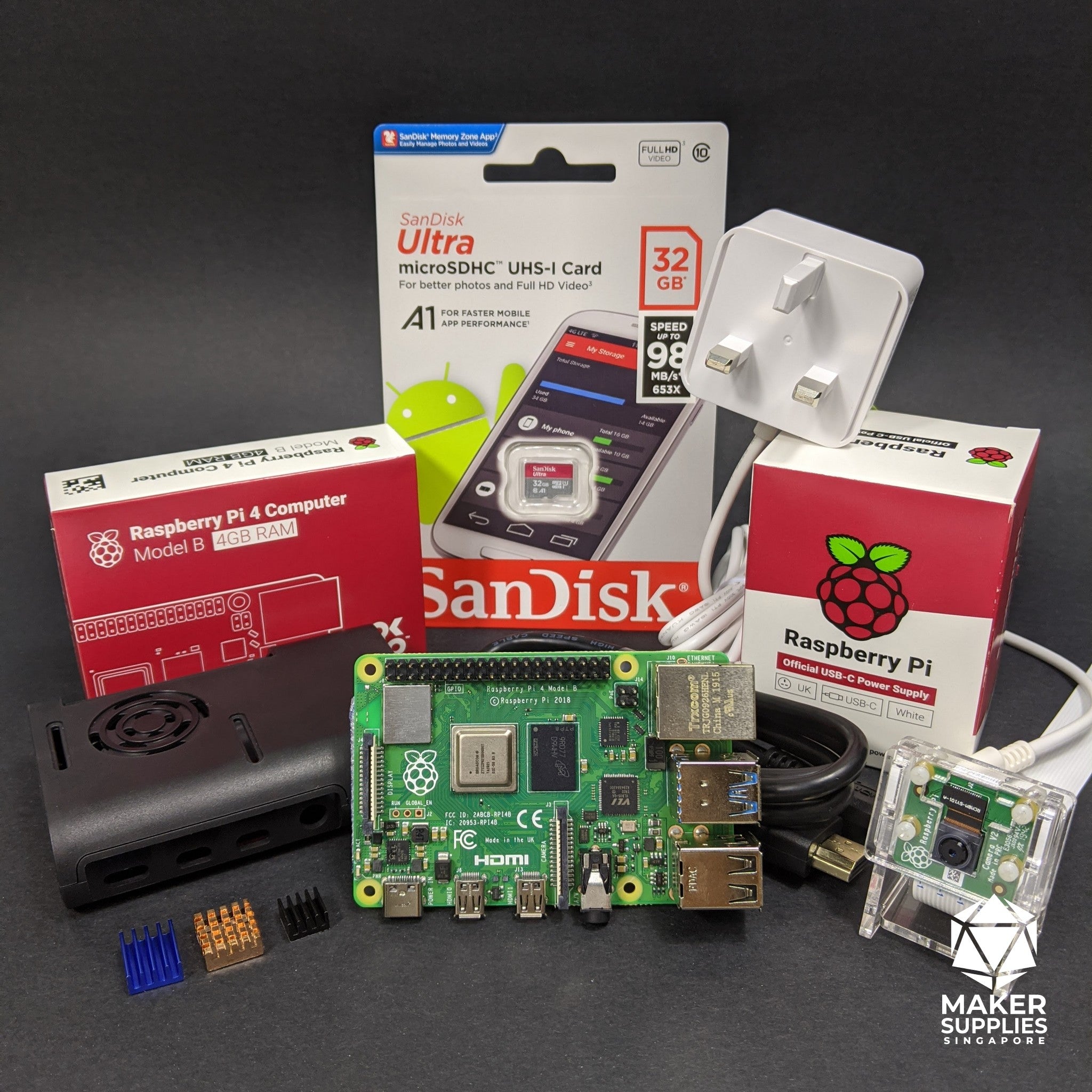

Bundle includes:
- Raspberry Pi 4 Model B ( 4GB/8GB )
- 5.1V 3A 15.3W USB-C Power Supply (Official Raspberry Pi)
- Raspberry Pi 4 Black ABS Plastic Casing with Cooling Fan

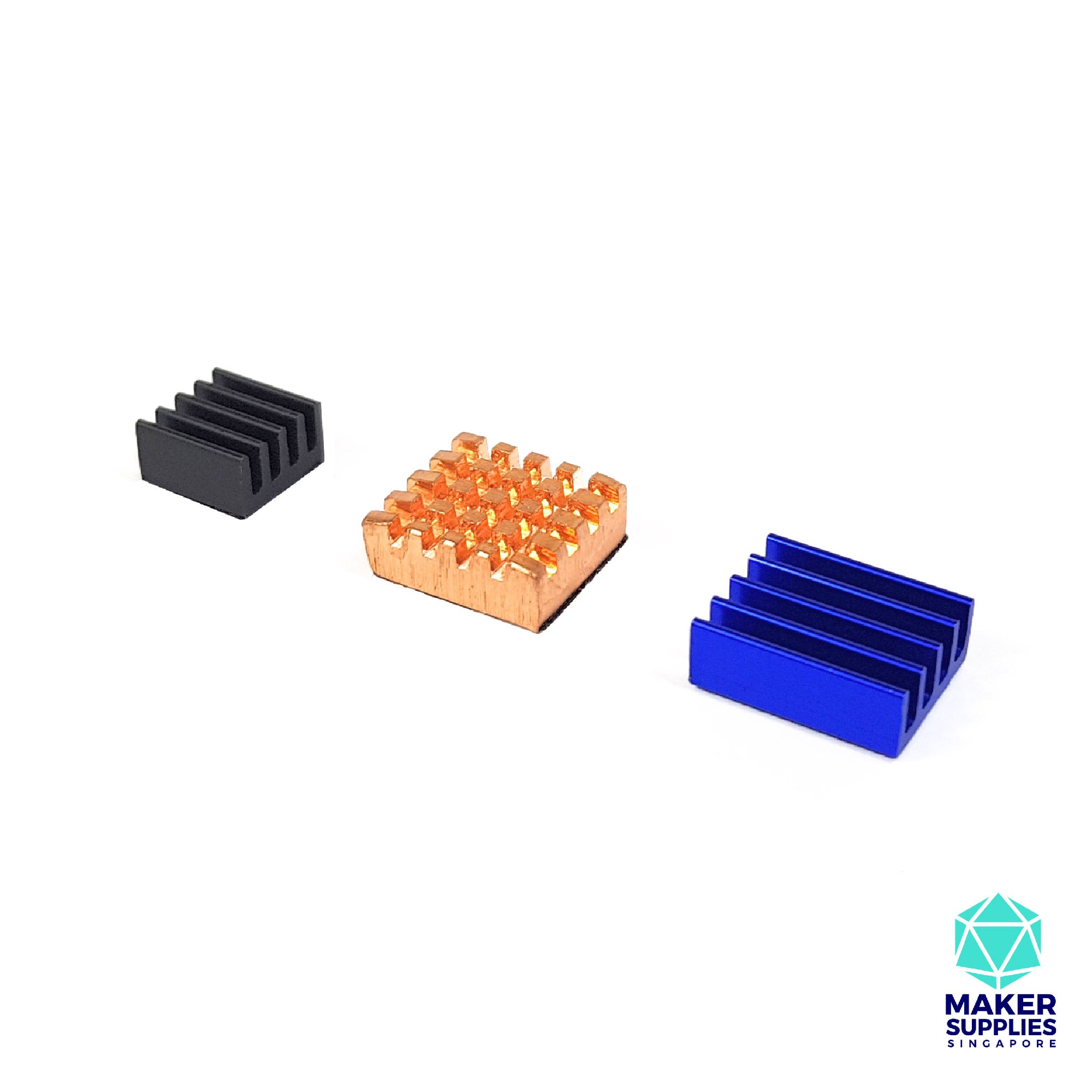

- Raspberry Pi 4 Heat Sinks (1 Copper, 2 Aluminium)
- SanDisk Ultra 32GB MicroSDHC UHS-I Card
- 1m Micro HDMI to Standard HDMI Cable Black (Type A to Type D)
8MP CSI Raspberry Pi Camera Module V2 (Official)

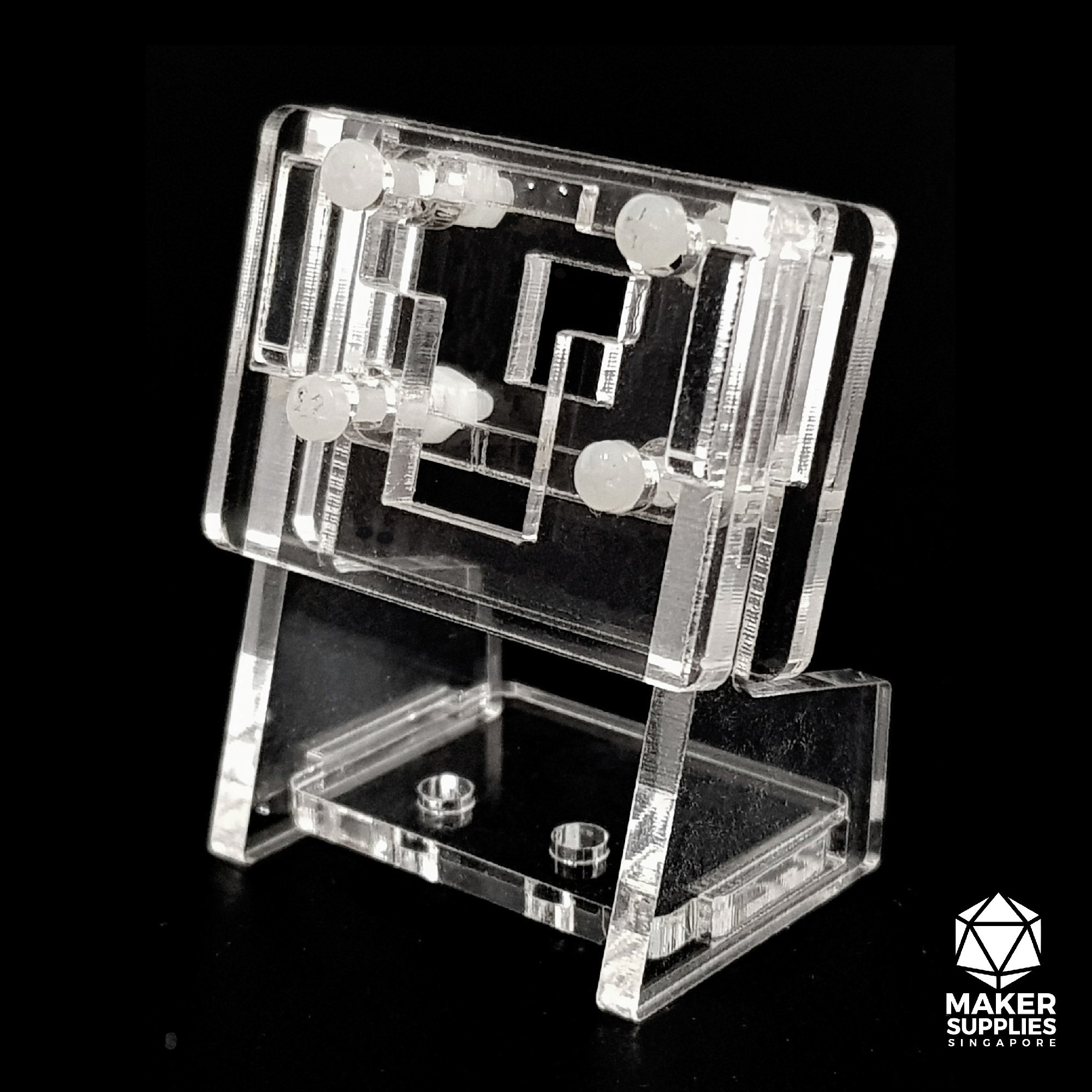

- Clear Acrylic Camera Holder (for Raspberry Pi, Jetson Nano)

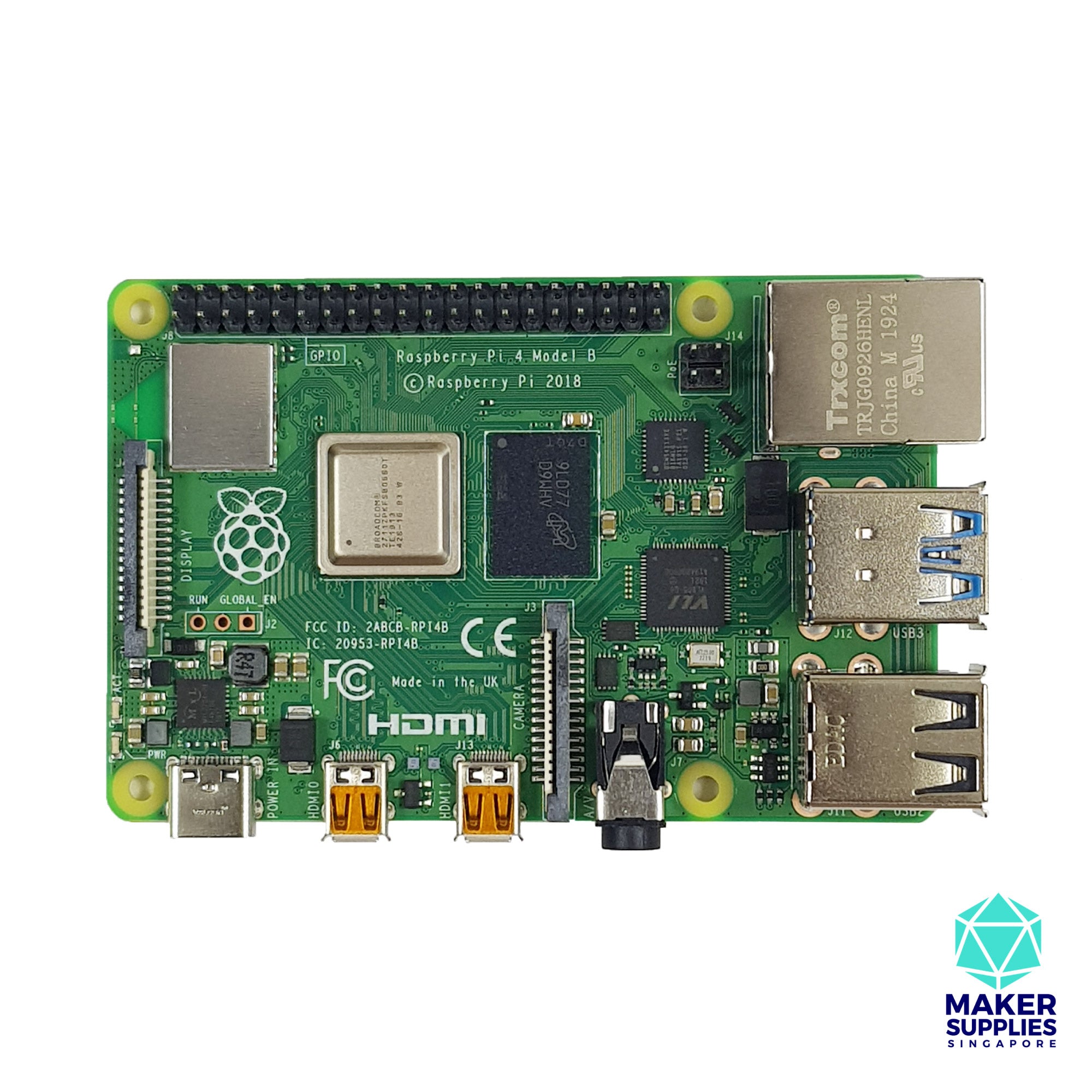

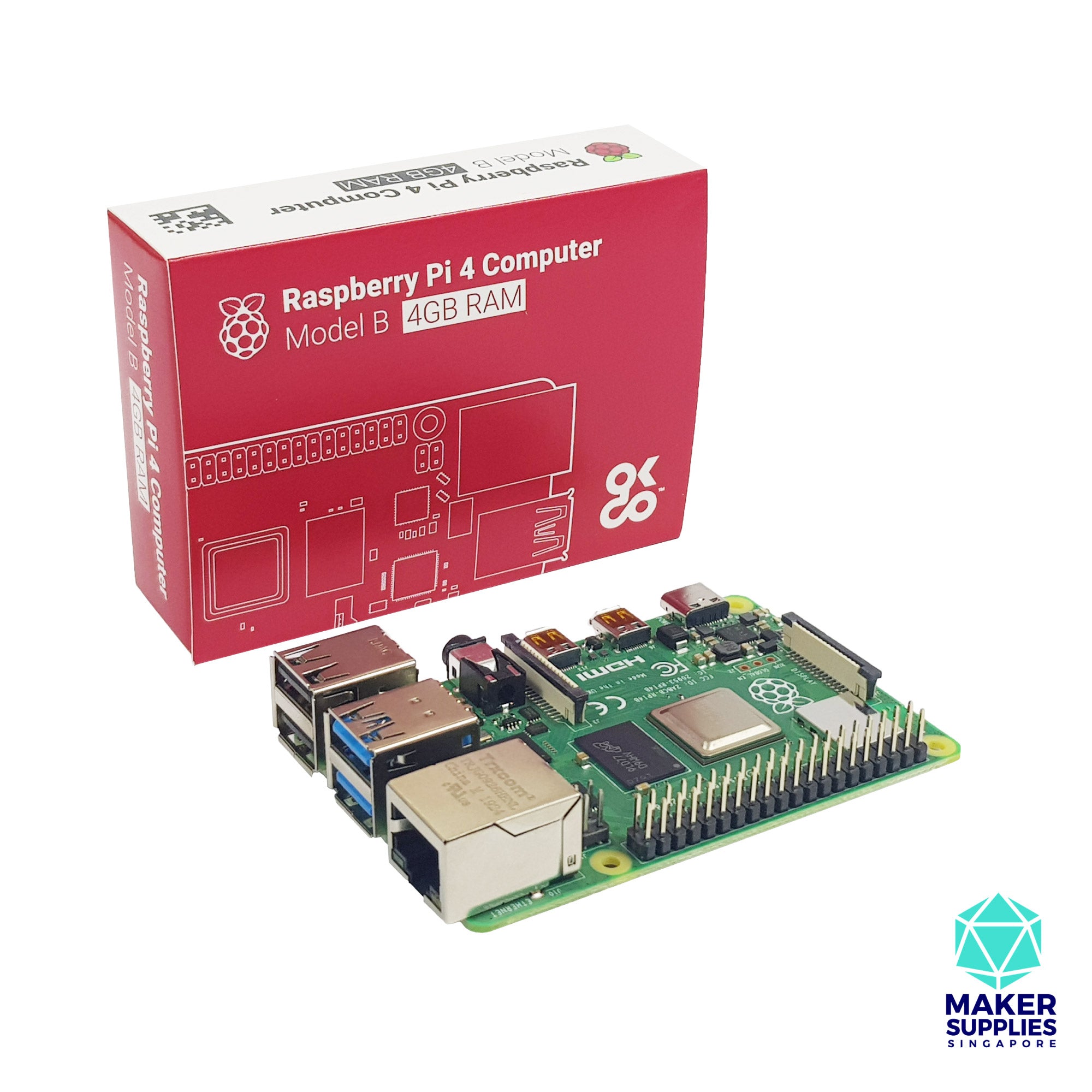

The latest Raspberry Pi 4 Model B

The latest addition to the Raspberry Pi family is a significant upgrade from the previous generation. The Pi 4 now has support for dual screen display up to 4K resolution, Bluetooth 5.0, Gigabit Ethernet, USB 3.0 ports and choice of more RAM!

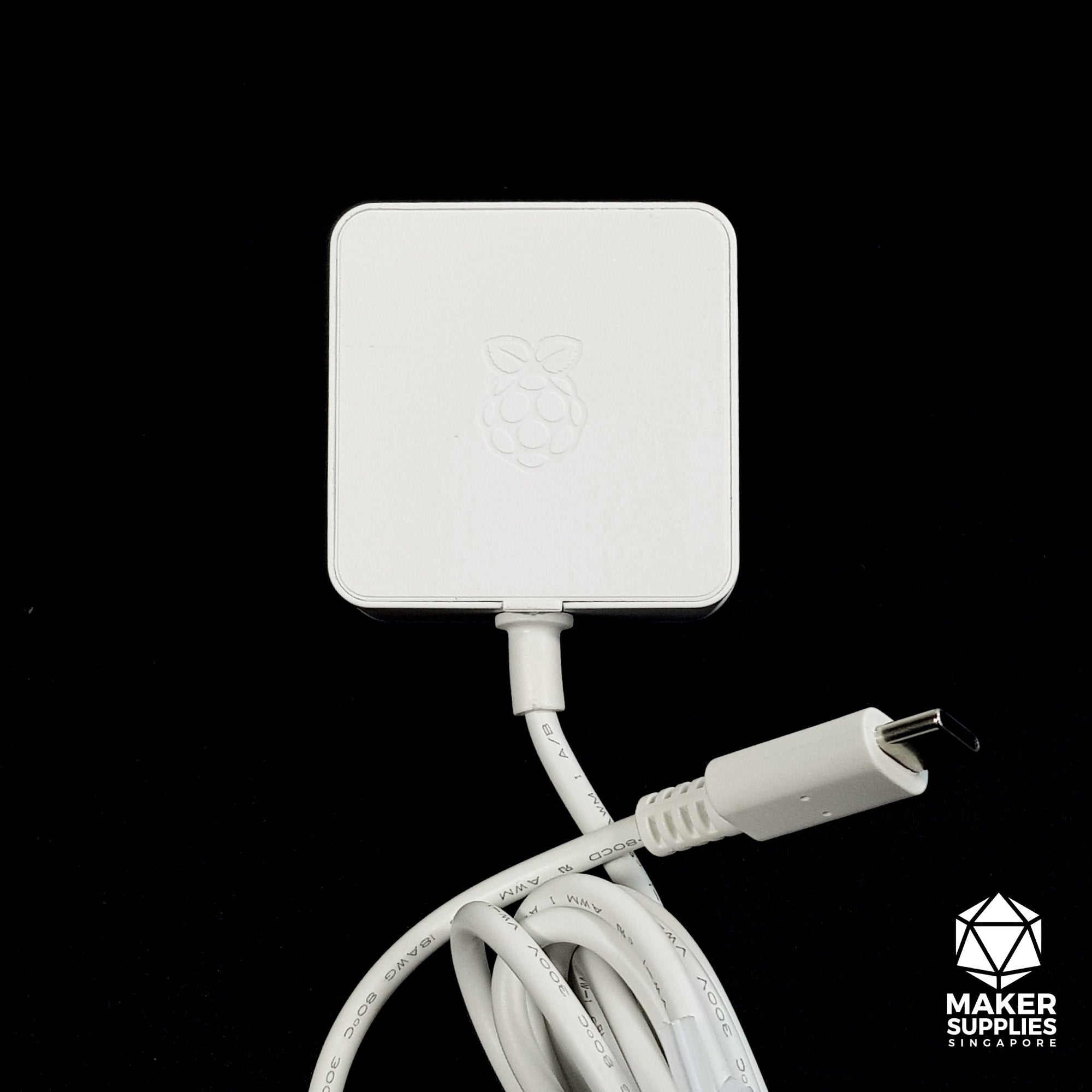

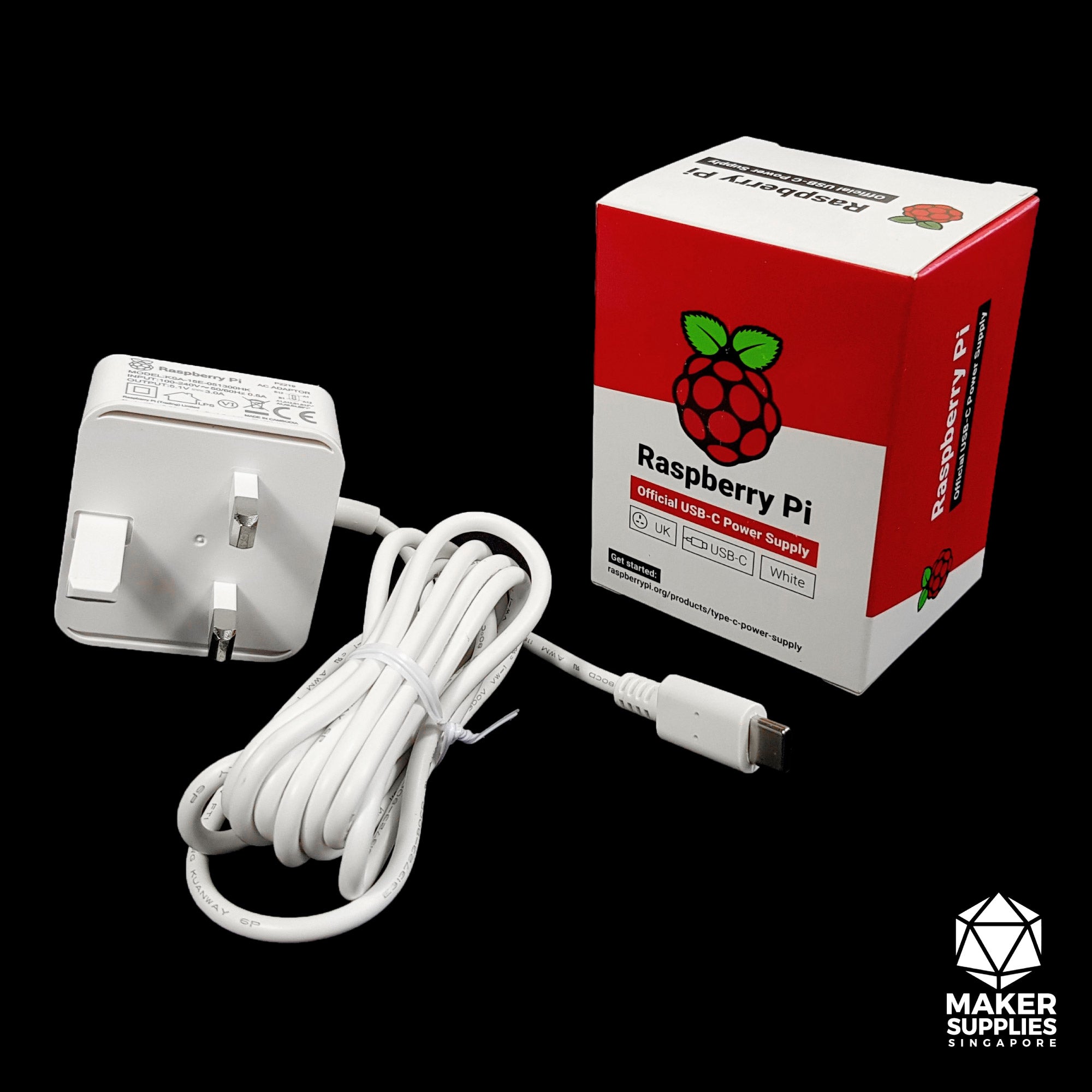

Uncompromising Power

 Using the Official USB-C Power Supply by the Raspberry Pi Foundation, you can be sure that you will not run into power issues with the Pi. Capable of supplying up to 3A of current at 5.1V, this power supply provides a more stable and reliable power source than the common USB AC Adapters out there as their current draw usually maxes out at 2.1A.



Keep it Cool

With great power comes... high temperatures! The Raspberry Pi 4 is known to heat up the most as compared to its predecessors due to the fact that it has a more powerful processor and more RAM. To keep things running cool and smoothly for you, we have included heat sinks and a cooling fan on the casing. This keeps the Pi running smoothly even during the most demanding of applications.

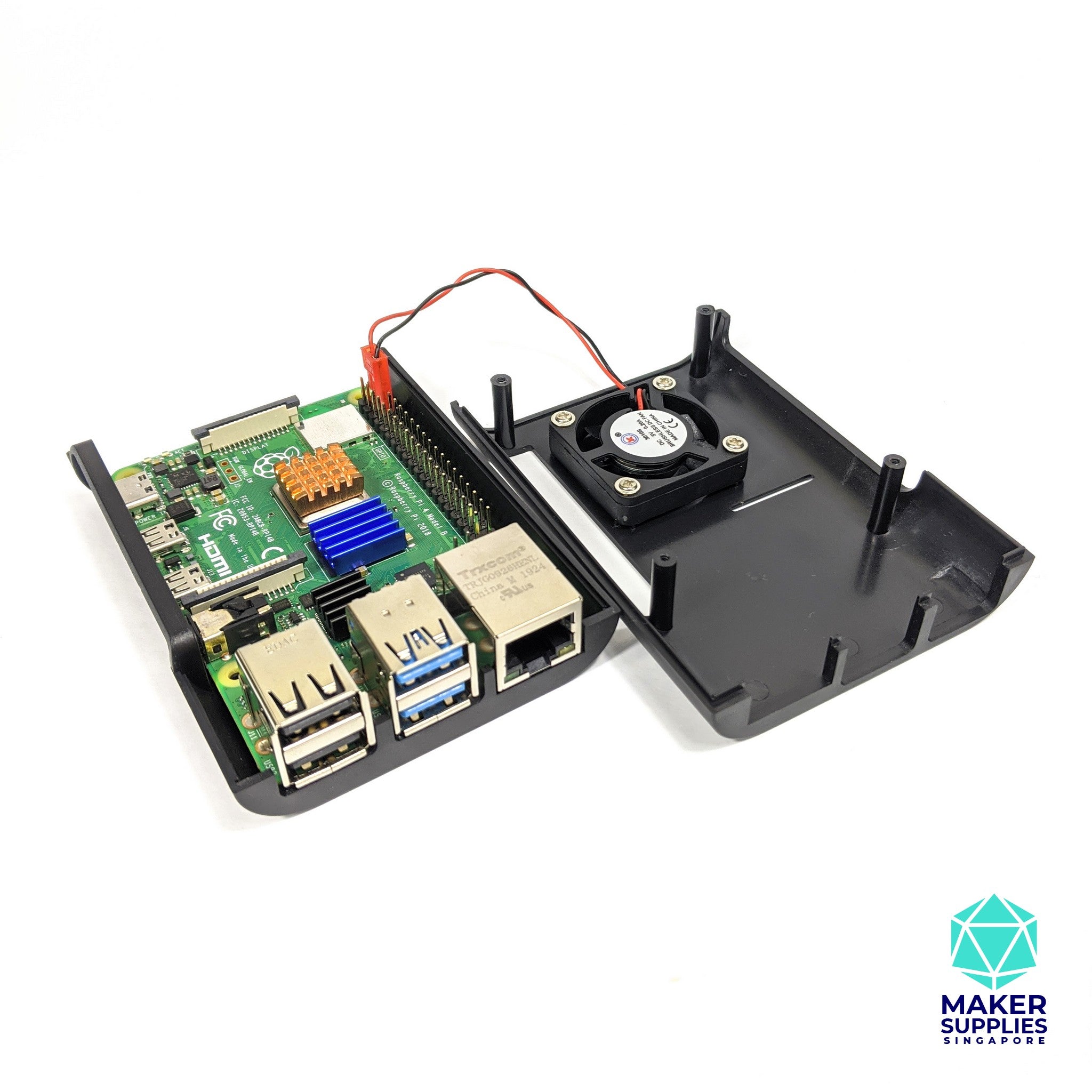

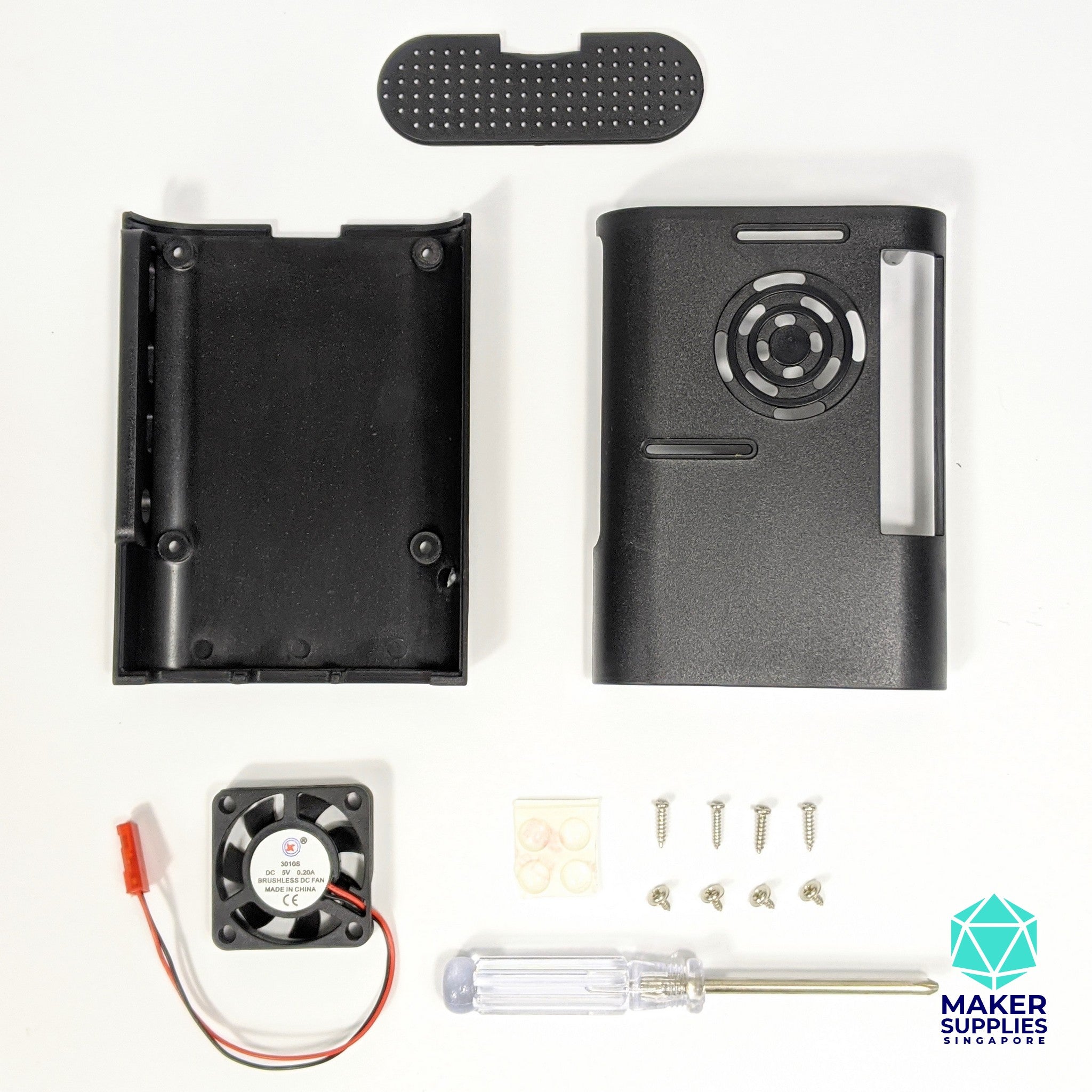

Easy to use ABS Casing

Raspberry Pi 4 casings can be difficult to get right, especially with the 2 micro HDMI ports. Protect your Pi 4 with this ABS casing with precisely cut holes for all the ports of the board. This casing also comes with a cooling fan which fits just right even with heat sinks placed on board.

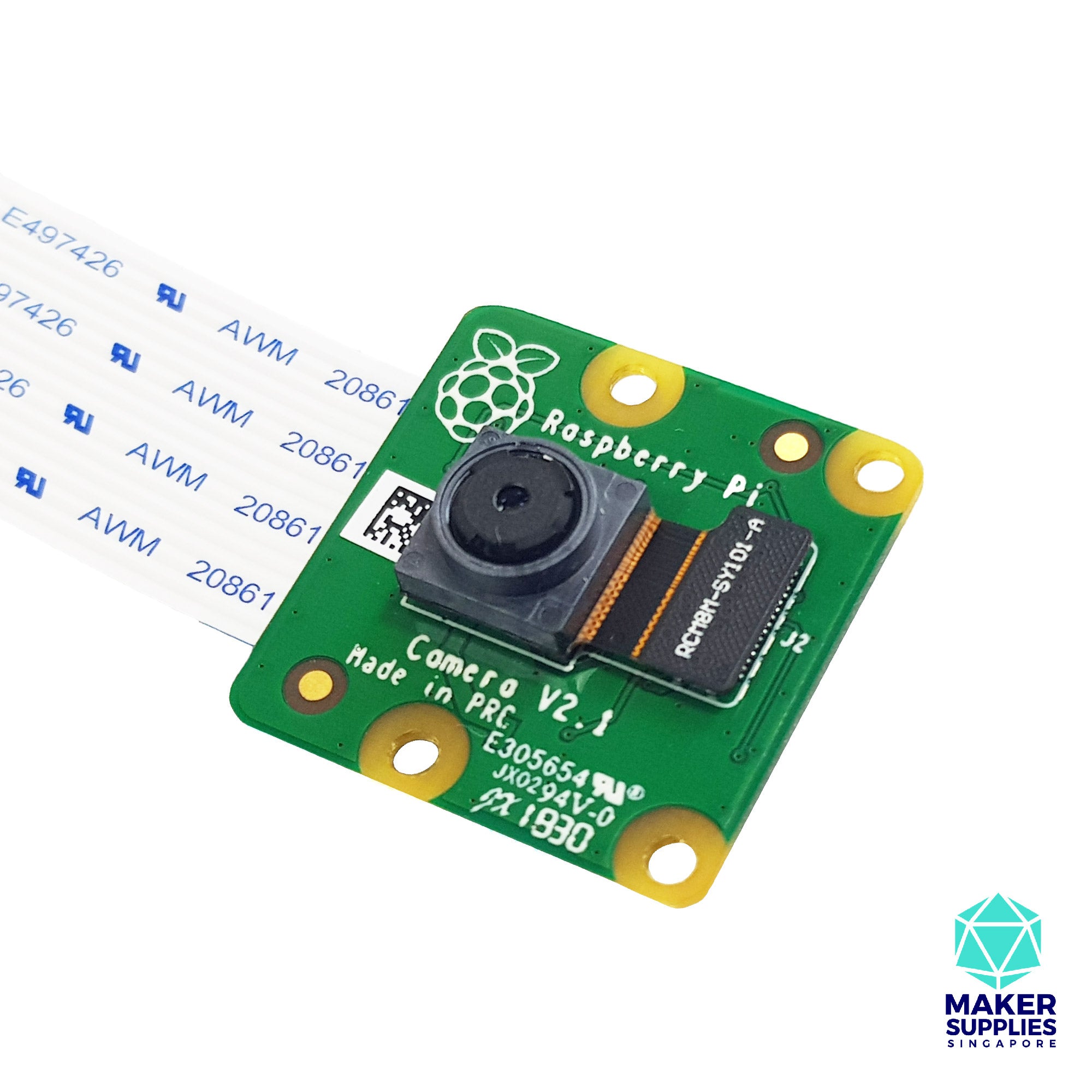

 Eyes for your Pi

Included in this ultimate bundle is the official 8MP camera module and an acrylic camera holder. With a camera, you would be able to create projects like surveillance cameras, object detection and many more fun and exciting computer vision ideas!

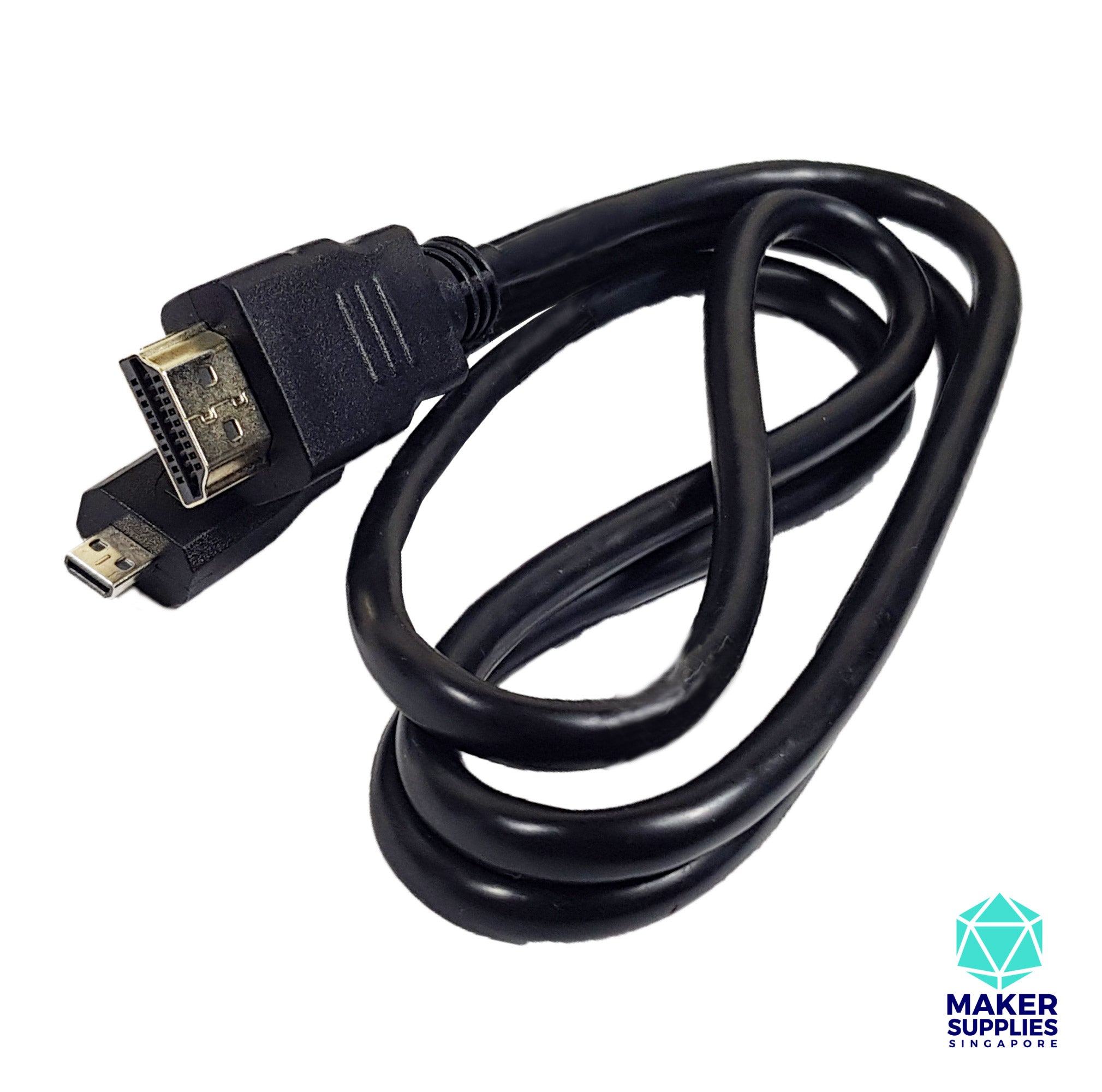

 Micro HDMI? No problem!

The Pi 4 uses 2 micro HDMI ports to output to 2 screens at the same time. However, most of us do not have a micro HDMI cable just lying around. Hence to save you time and trouble finding the right cable, we have included it in this bundle as well!

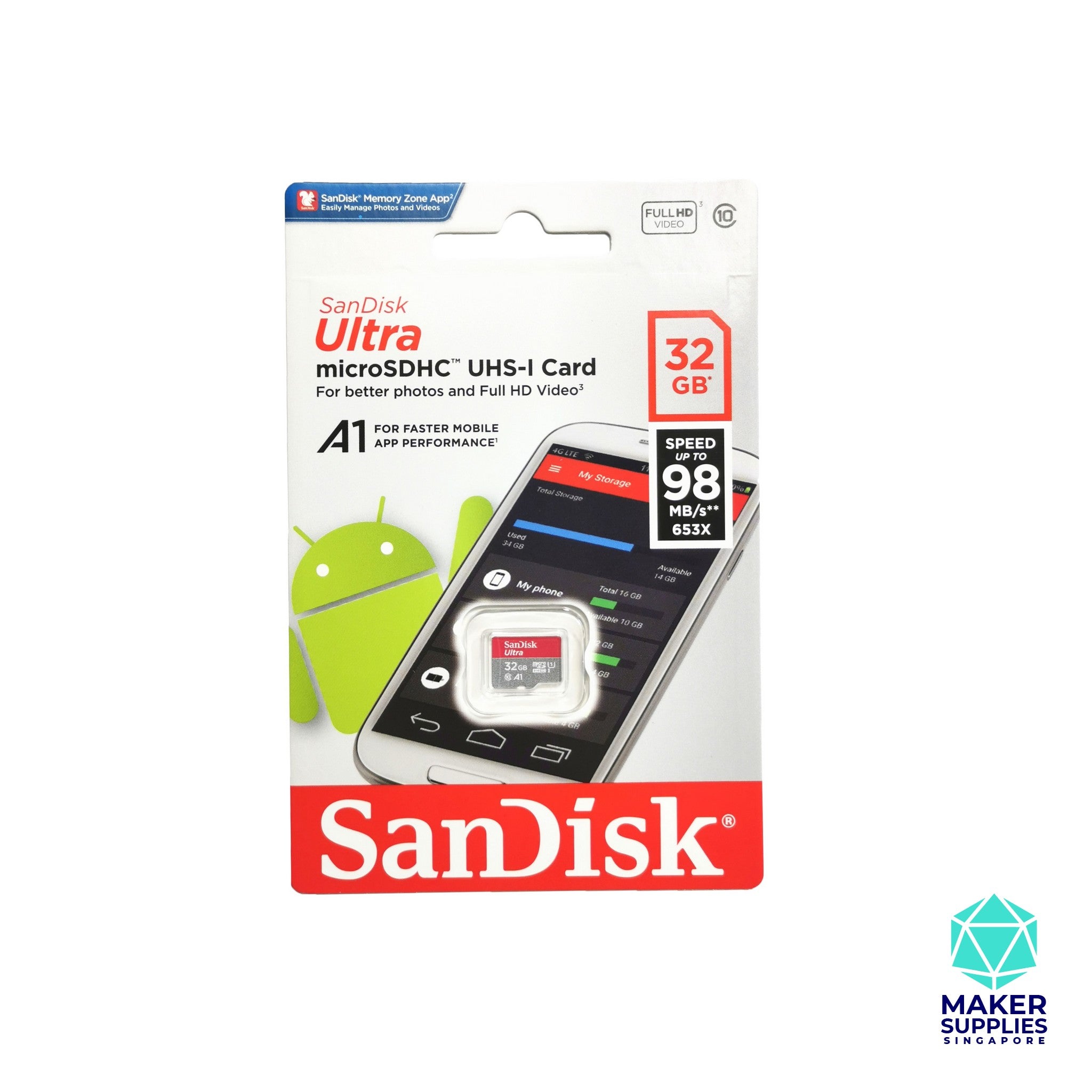

32GB of Less Frustration

Included in this bundle is also the SanDisk Ultra 32GB microSD card. We chose this microSD card as it is rated with an Application Class of A1 (Meaning it can handle a minimum of 1500 reading and 500 writing operations per second). This makes it perfect for running an operating system off from and less frustration when flashing operating systems onto the card.





Technical Specifications (Raspberry Pi 4 (4GB)):

Operating Voltage: 5V
Processor: Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz RAM: 4GB LPDDR4-3200 SDRAM
Connectivity:
- 2.4GHz and 5.0Ghz IEEE 802.11ac wireless LAN
- Bluetooth 5.0, BLE
- Gigabit Ethernet
Interfacing Options:
- Extended 40-pin GPIO header
- 2 micro-HDMI ports (up to 4K p60 supported)
- 2 USB 2.0 ports
- 2 USB 3.0 ports
- CSI camera port for connecting a Raspberry Pi camera
- DSI display port for connecting a Raspberry Pi touchscreen display
- 4-pole stereo output and composite video port
Graphics:
- H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
- OpenGL ES 3.0 graphics



Technical Specifications (Raspberry Pi 8MP Camera):

Still Resolution: 8 Megapixels
Video Modes: 1080p30, 720p60 and 640 × 480p60/90
Sensor: Sony IMX219
Sensor Resolution: 3280 × 2464 pixels
Horizontal Field of View: 62.2 degrees
Vertical Field of View: 48.8 degrees
Focal Length: 3.04mm
Dimensions: 25 x 23 x 9mm
Weight: 3g

Getting Started Guide:
https://projects.raspberrypi.org/en/projects/raspberry-pi-setting-up



Heatsink Placement Guide:
