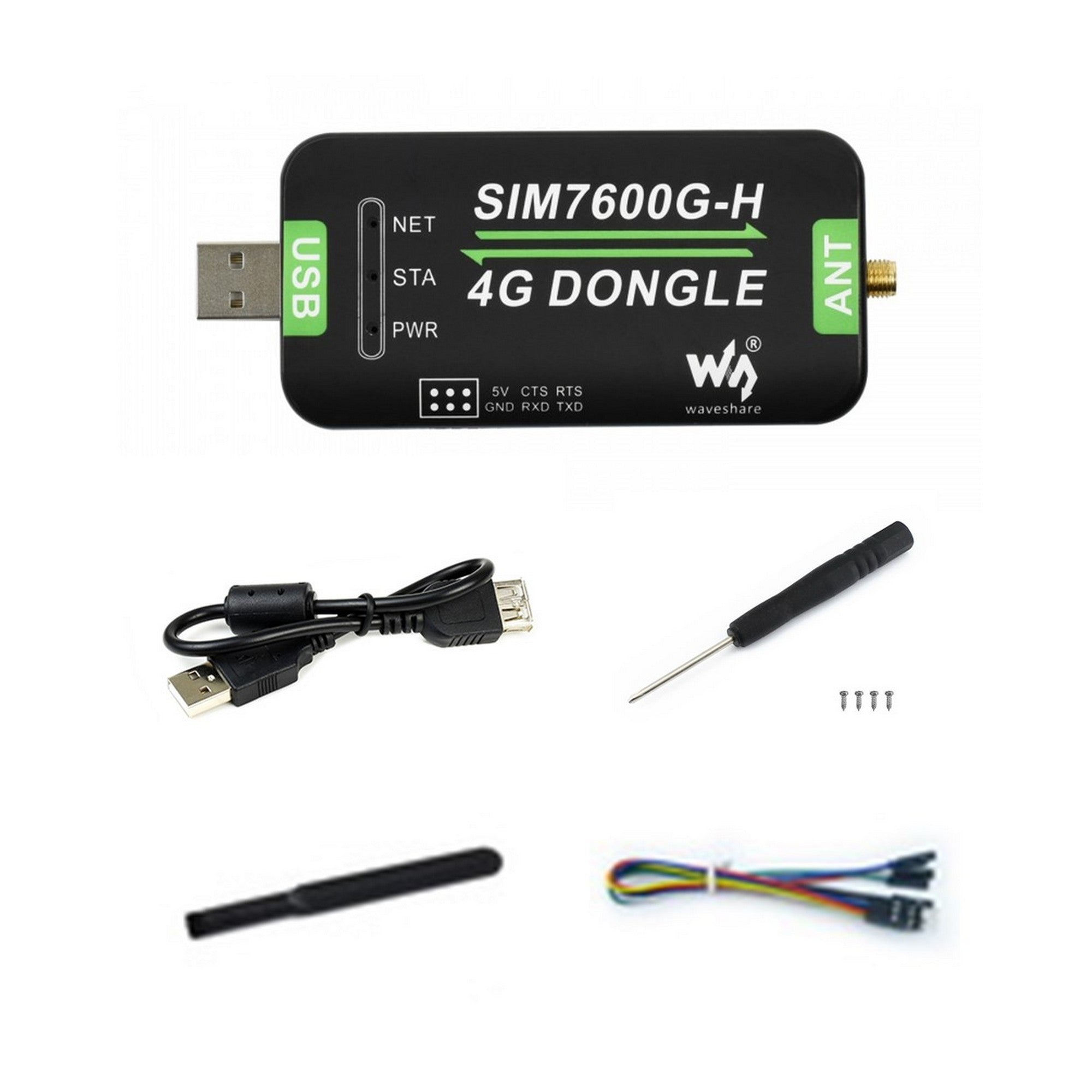

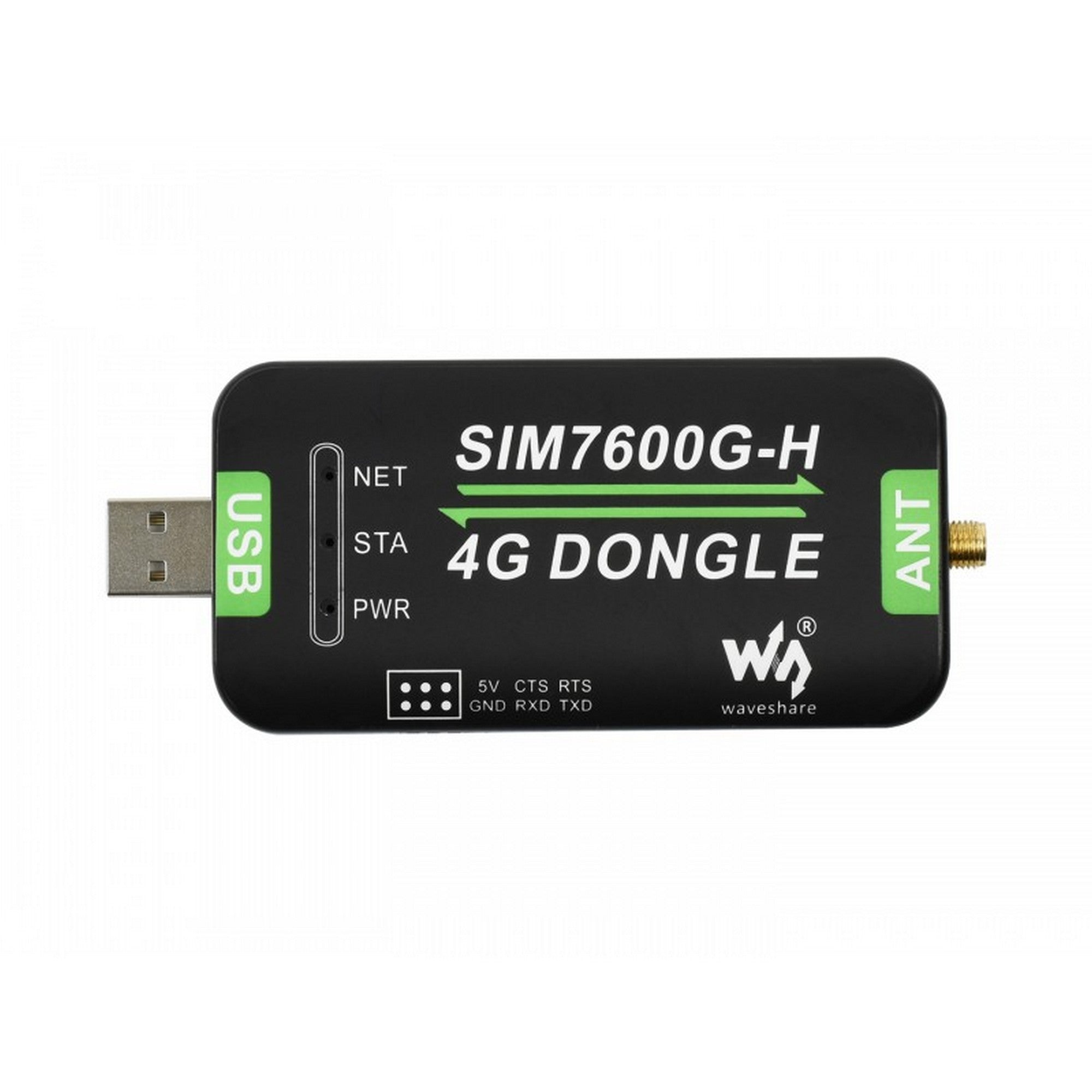

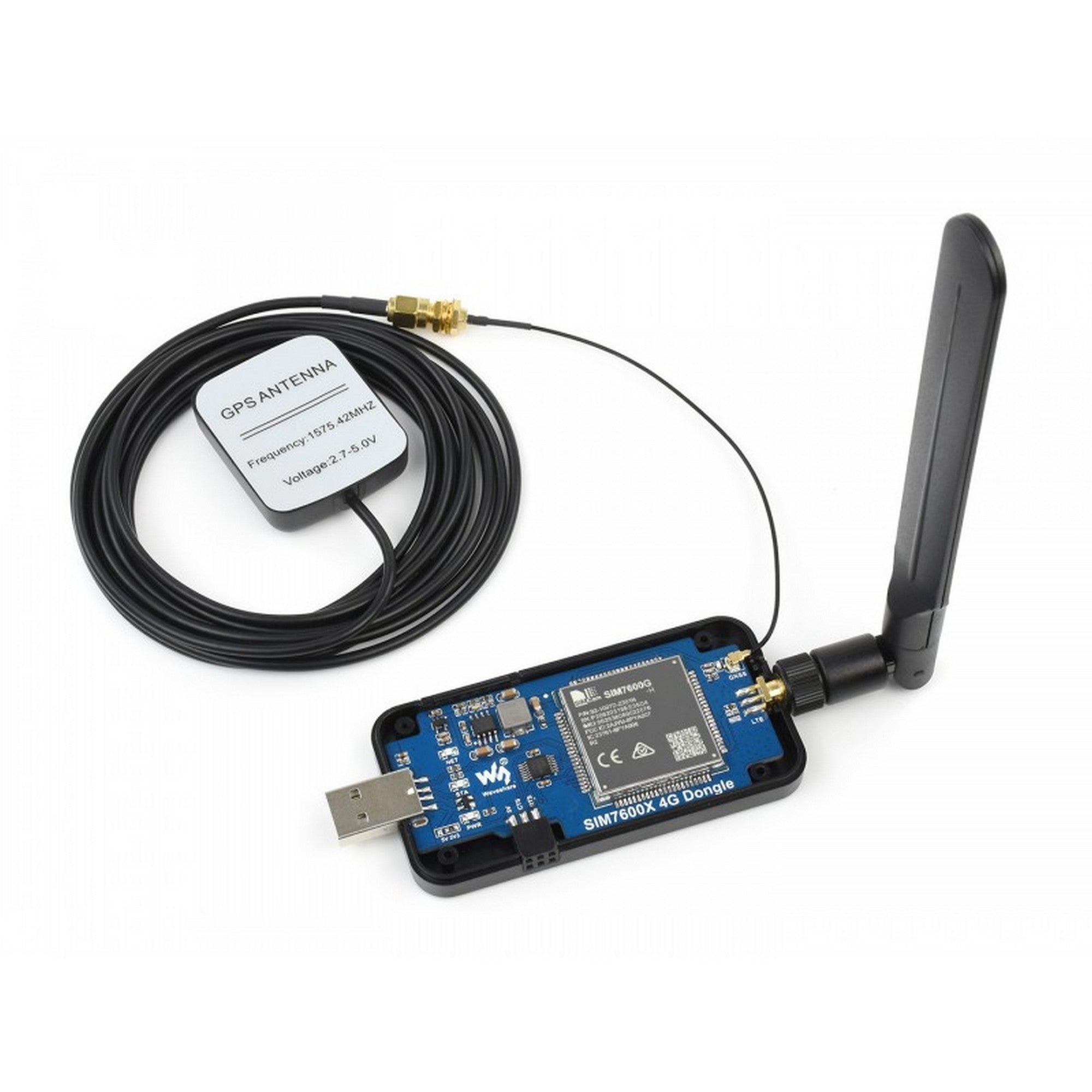

SIM7600G-H 4G DONGLE

This is a global band industrial grade 4G dongle, which features up to 150Mbps downlink rate and 50Mbps uplink rate, supports operating systems including Windows/Linux. By simply connecting it to laptop, PC, Raspberry Pi, Jetson Nano, drone, industrial computer, or other IoT host device, it is easy to use 4G network connection on the go.



Features At A Glance

• Supports 2G/3G/4G network connection, global band
• Driver provided, for operating systems including Windows/Linux
• Supports network protocols such as TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS
• Onboard USB port, for directly connecting with ARM/X86 hosts or other industrial computer
• Onboard UART port with hardware flow control, for connecting with host boards like Arduino/STM32
• Onboard GNSS connecting, supports GPS, Beidou, Glonass, LBS base station positioning (additional GNSS antenna is required but NOT included)
• Nano SIM card slot, supports 1.8V / 3V nano SIM card
• 3x LED indicators, easy to monitor the working status
• Portable customized enclosure, mini size, nice looking
• Baudrate support: 300bps ~ 4Mbps (115200bps by default)
• Baudrate auto-negotiation: 9600bps ~ 115200bps

Global Band Support

Supports Global 2G/3G/4G Communication



Multi Host Support

Working With Laptop / Raspberry Pi / Industrial Computer...
Up To 150Mbps Downlink And 50Mbps Uplink*

* stands for idealized data rate, the actual data rate may fluctuate greatly, depending on factors like network coverage, traffic congestion, base station condition, etc.



Multi System Support

Supports Windows/Linux

Just plug it into USB port, go through some driver installation and simple configuration, the high speed 4G network connection would be ready to use



Cloud Communication

Supports USB/UART Communication Interfaces
Supports TCP/UDP/FTP/FTPS/HTTP/HTTPS Communication Protocols

GNSS Positioning

Supports GPS, BeiDou, Glonass, LBS Base Station Positioning

The GNSS antenna is NOT included.

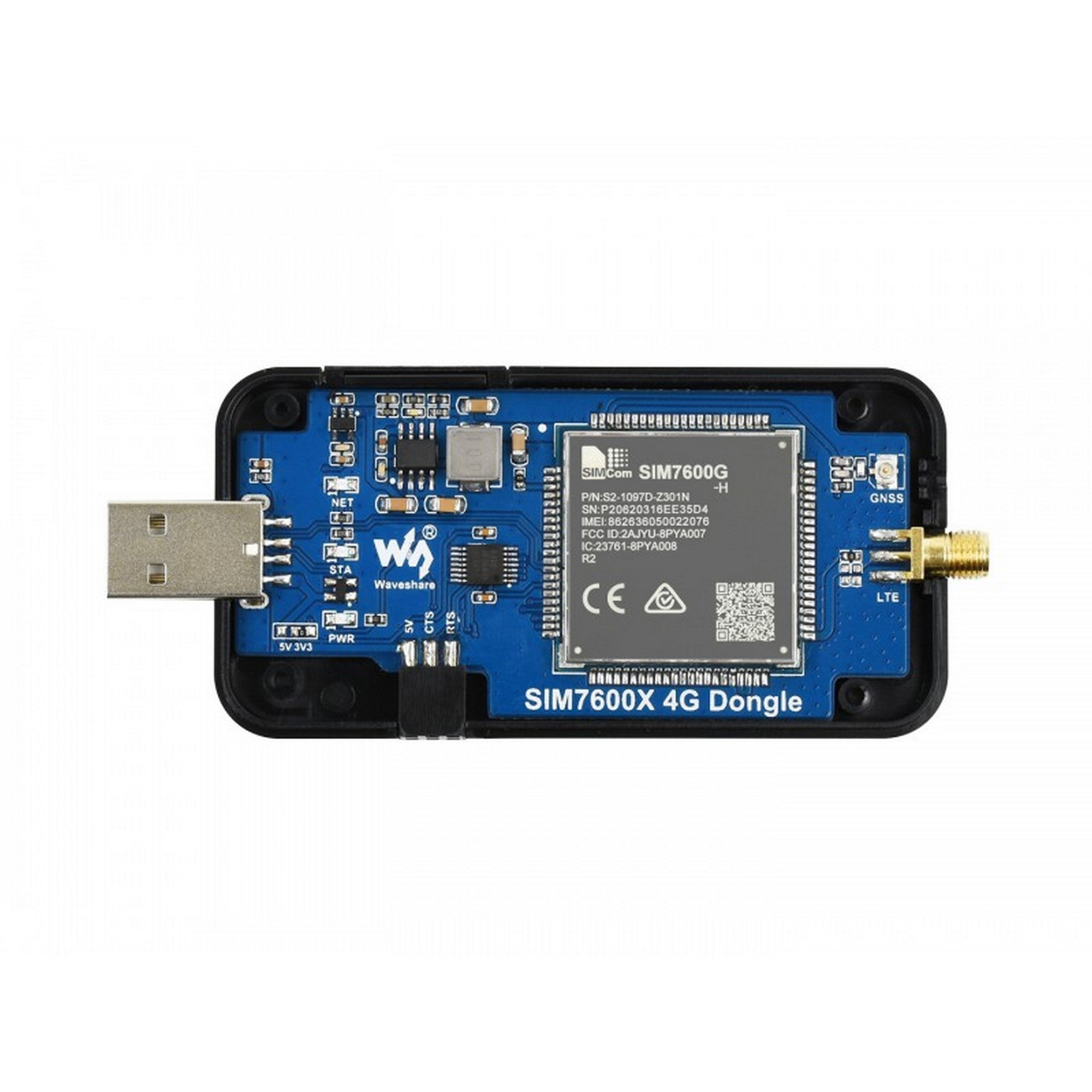

Industrial Grade 4G Solution

Integrates SIM7600G-H Module, Industrial Grade Design, Stable Connection, More Durable

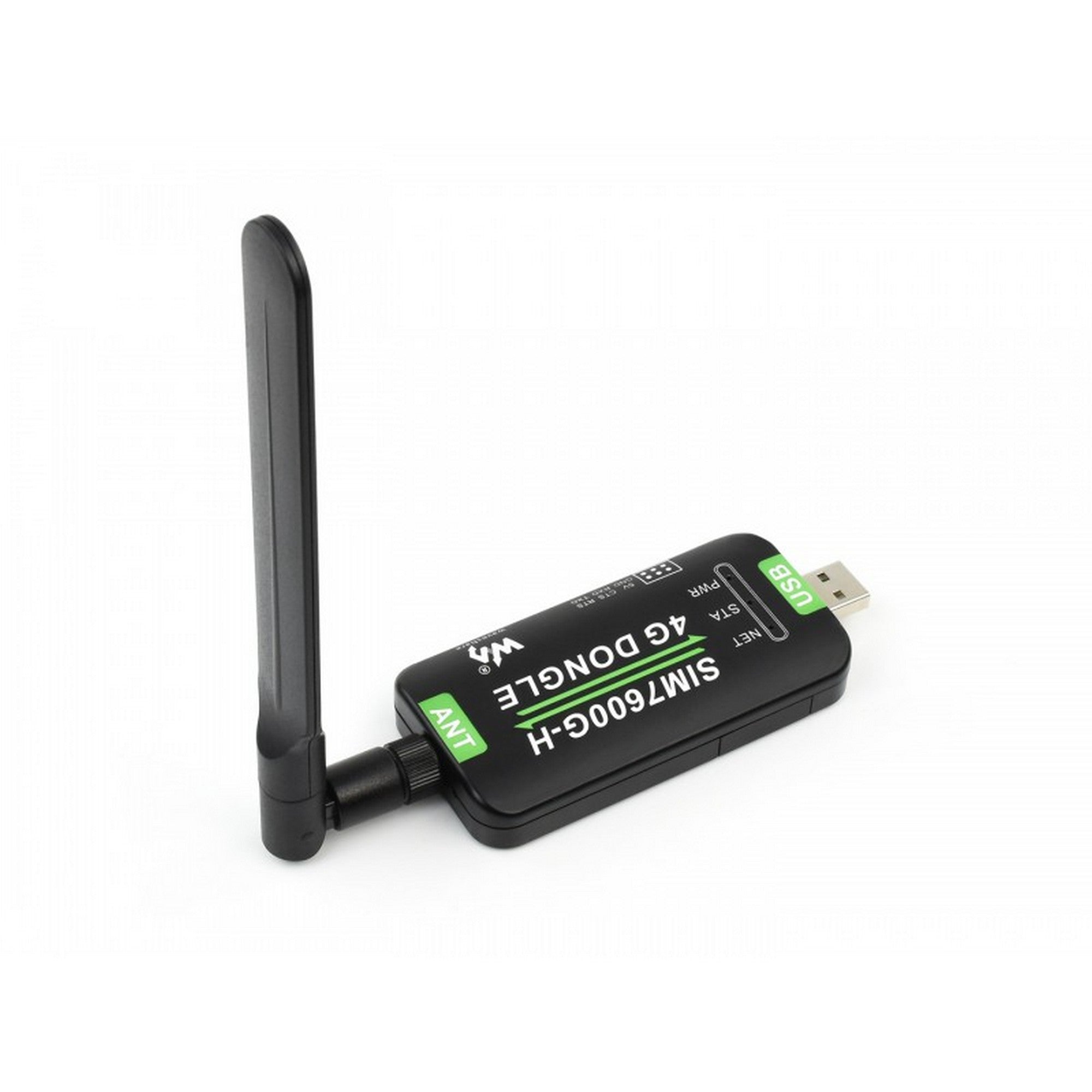

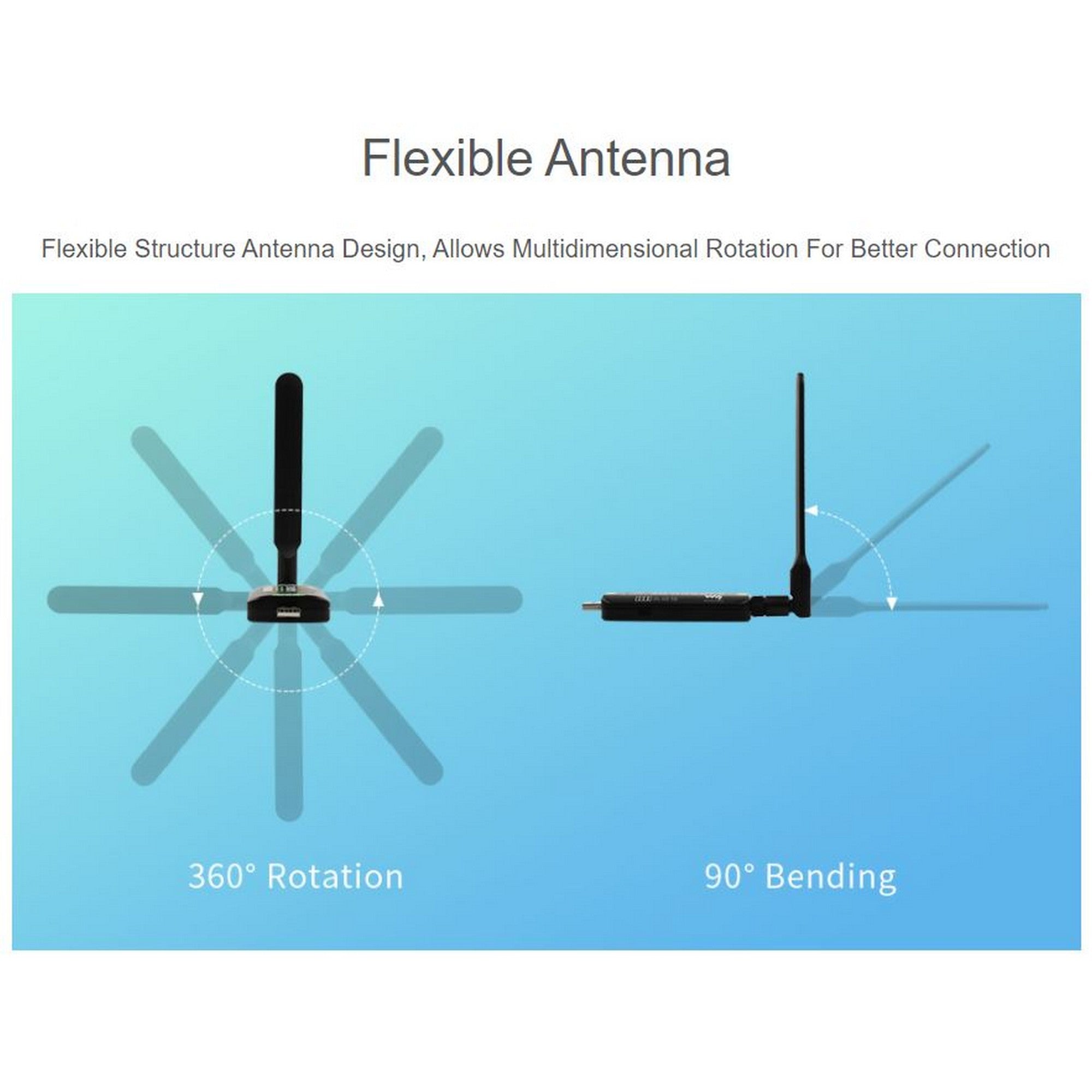

Flexible Antenna

Flexible Structure Antenna Design, Allows Multidimensional Rotation For Better Connection

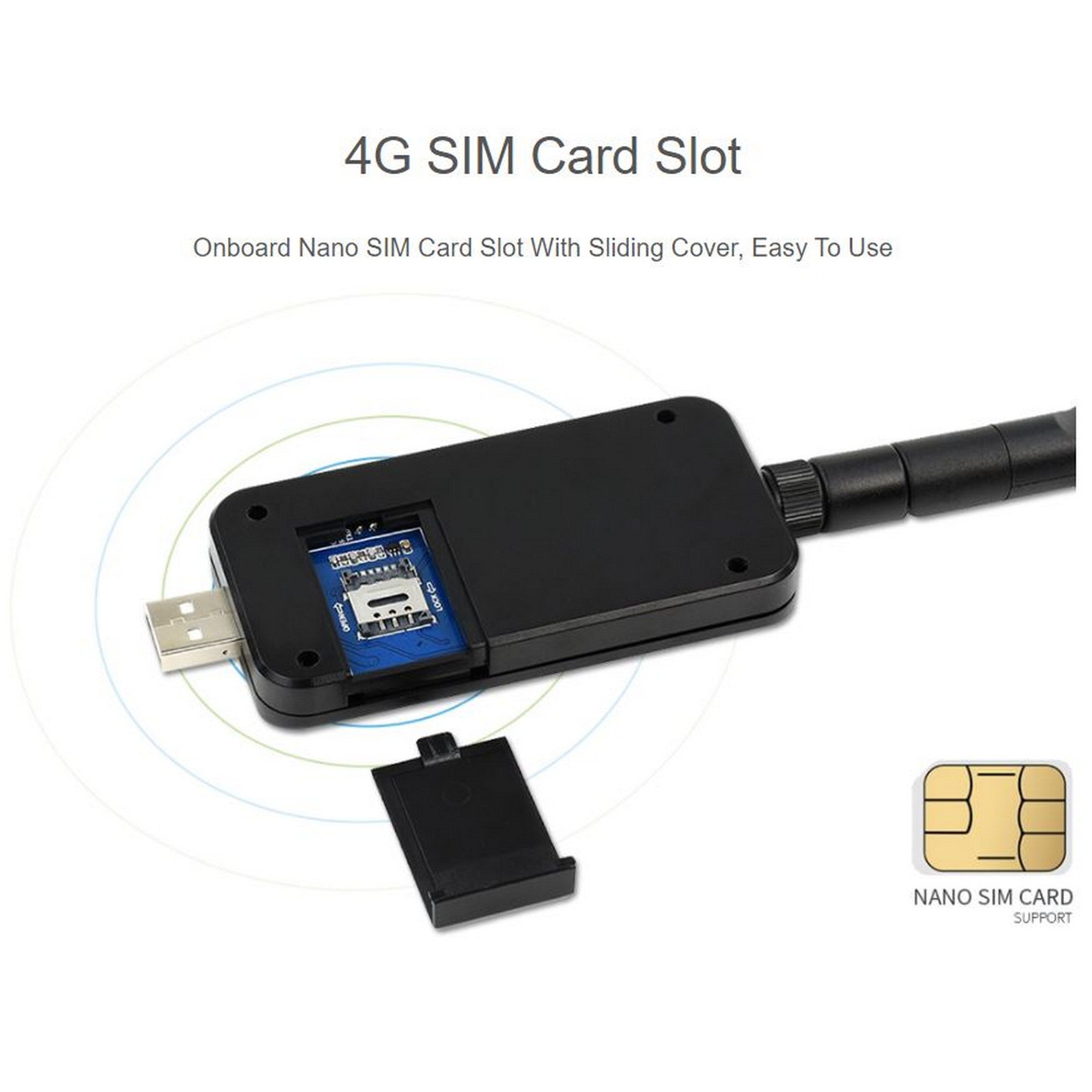

4G SIM Card Slot

Onboard Nano SIM Card Slot With Sliding Cover, Easy To Use

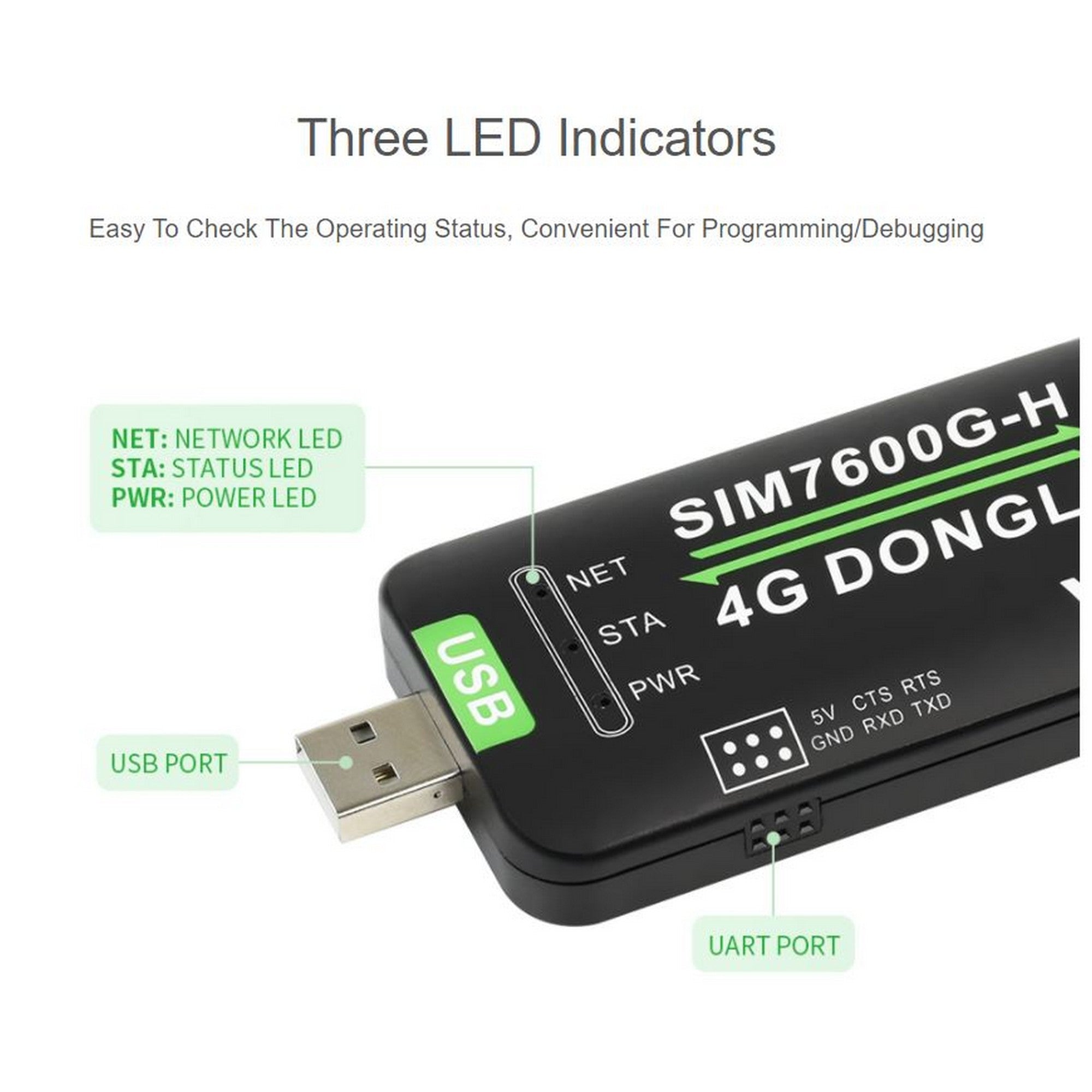

Three LED Indicators

Easy To Check The Operating Status, Convenient For Programming/Debugging

UART PINOUTS
5V	5V DC input
GND	power ground
TXD	data transmitting
RXD	data receiving
CTS	hardware flow control, clear to send, NC if not used
RTS	hardware flow control, request to send, NC if not used

Application Examples

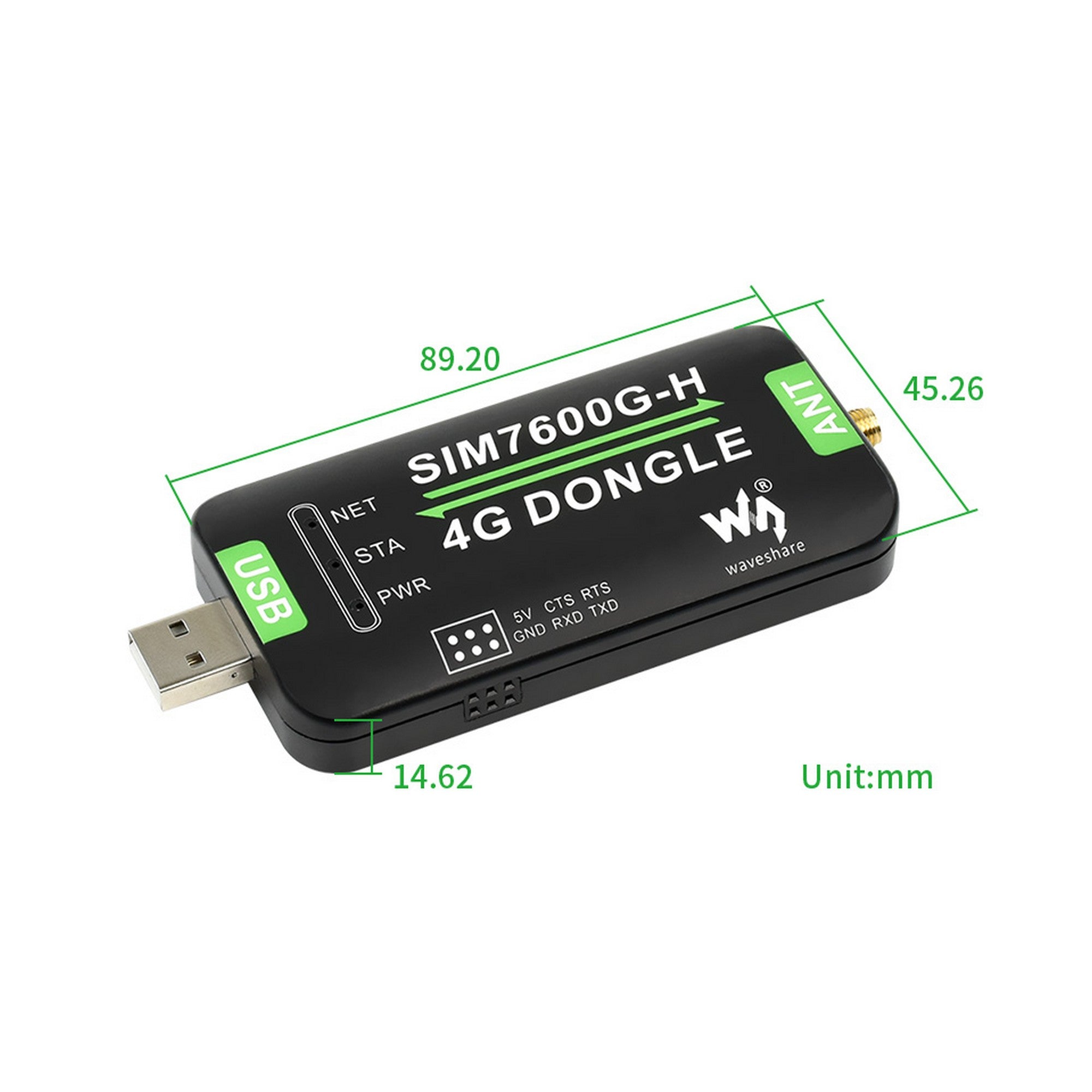

Outline Dimensions

Wiki: www.waveshare.com/wiki/SIM7600G-H_4G_DONGLE
